K1一体化上网自助终端

K1一体化上网自助终端
型号：K1
品牌：ZKTEK
原产地：中国
类别：电子、电力 / 其它电力、电子
标签︰网络自助终端 , 智能上网终端 , 电脑终端机
单价： ¥60000 / 件
最少订量：1 件
发送查询 		点击这里给我发消息

产品描述

Model Number:K1

Features



  • Slim and sleek design.
  • With keyboard.
  • 2.0mm enhanced metal enclosure.

Introduction

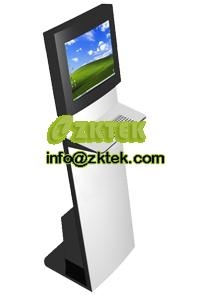

K1 is a classic slim sleek touchscreen kiosk with keyboard.

K1 datasheet


Applications





Internet,web, exhibition,information,service

Technical details



Operation System
  • WINDOWS XP
  • WINDOWS 7
  • Linux 2.6 distribution(i.e. Fedora 9, CentOS 5, Ubantu 10 and SUSE etc)
Host computer
  • Processor: Intel Core i5 2320
  • Memory: 4G DDRIII
  • Storage: SSD 60G MLC
Touchscreen&Display
  • Screen size: 17 inch
  • Native resolution: 1024*768
  • Brightness: 300 nits
  • Display ratio: 4:3
  • Touchscreen: 17 inch Infrared or SAW(Sound Acoustic Wave, a technology of touchscreen) touch
  • Touchscreen thickness: 4-6mm
  • Touch resolution: 4096*4096
keyboard
  • Keys: 78 keys, X shape plastic keys.
  • Trackball: None
  • Key travel: 2.50mm.
  • Size: 285mmx120mm.
Reliability
  • Operation Temperature: 0~45°C
  • StorageTemperature: 0~60°C
  • Operating RH: 0-95%(NC)
  • Max operation latitue: 10000 m
  • Power supply: 110V AC 5A/220V AC 3A
  • IP protection: Front IP54(with only contactless card and touchscreen)
  • IK protection: IK07
  • electrostatic protection: 4000V
  • impedance: 10kOhm
  • EMC Standard: It is compliance with the council EMC directive 89/336/EEC,EN55022: 1988+A1:2000+A2:2003,EN55024: 1988+A1:2001+A2:2003.
  • Emission: EN 50081-1.
  • Immunity: EN 50082-1.
Physical Characteristic
  • Material: 2.0mm cold roll steel
  • Dimensions:42cm*45cm*165cm(varable as per monitor and configurations)
  • Gross weight:90KG
  • Net weight: 70KG
付款方式︰100% T/T in advance
