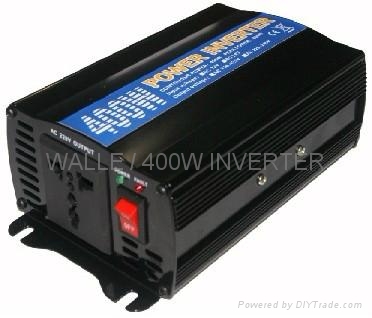

400W DC to AC car power inverter+CE/RoHS/GS



Input : DC12V  Cigar-Lighter
Output :AC 220-240V or 100-120V
Anyone socket with or without USB port  as you order.







Protection Features 安全特性:

↑ Low voltage protection 欠压保护

↑ Over voltage protection 过压保护

↑ Overload protection 过载保护

↑ Overheating protection 过热保护

↑ Short-circuit protection 短路保护







Technical specifications

Model  型号	Y400
Continuous output power   持续功率	400W
Spike power(Peak power)  峰值功率	800W
Input voltage  输入电压	12V/24V
Output voltage  输出电压	100V-120V / 220V-240V
Output frequency  输出频率	50HZ/ 55HZ/ 60HZ
USB Output (optional) USB输出	5V , 500mA
Output waveform 输出波形	Modified Sine Wave 修正正弦波
Detail packing part包装细节规格:
Size /unit( L*W*H )产品尺寸	185*100*60mm
Size/ctn ( L*W*H )外箱尺寸	420*305*355mm(20pcs per carton with blister package or customized 20台每箱 有泡沫保护)
G.W./N.W.毛重/净重	16.5Kg/ 13Kg
Certification 检验证书	CE, RoHS, GS
Warranty 保修期	12 months

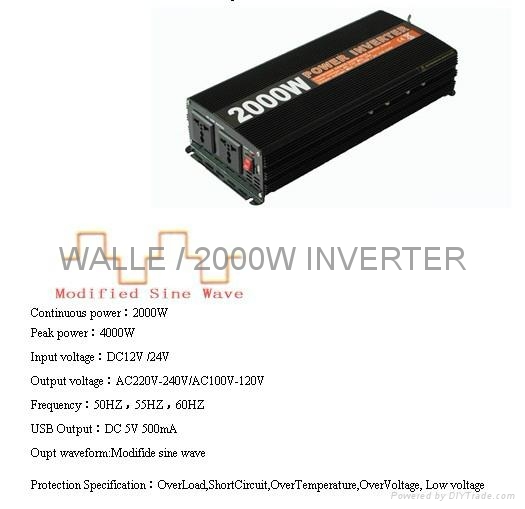

此系列产品型号：从 Y75W  到3000W
同时可以提供带UPS 带充电功能的相关逆变器
