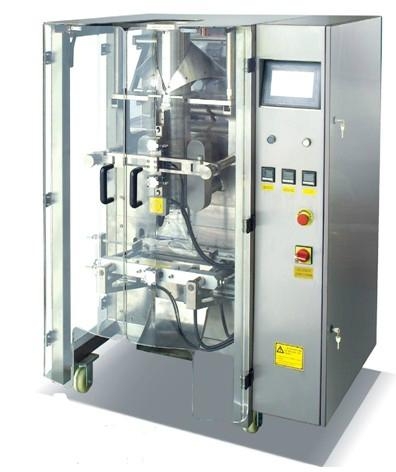

Automatic Packaging Machinery

Model:	RY-VP520
Brand:	ROYEE
Origin:	-
Category:	Industrial Supplies / Packaging Related Machine
Label:	Filling Machine , Packaging Equipment , Weighing System
Price:	-
Min. Order:	1 pc

Inquire Now

Product Description

&Features&

* Film drawing down system controlled by servo motor.

* Automatic film rectifying deviation function;

* Various alarm system to reduce waste;

* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment;

&Specifications &

Items	Content
Capacity	*50bag/min
Bag size	(L)80-350mm (W)100-250mm
Bag type	Pillow bag, stand-up bag, punching bag
Film Pulling belt	double-belt pulling film
Max packaging film width	Max,520mm
Thickness of film	0.04-0.09mm
Air consumption	0.8Mpa 0.4cmb/min
Main power/voltage	2.5KW/220V 50Hz
Dimension	L1500W1140H1540mm
The weight of switchboard	680kg
