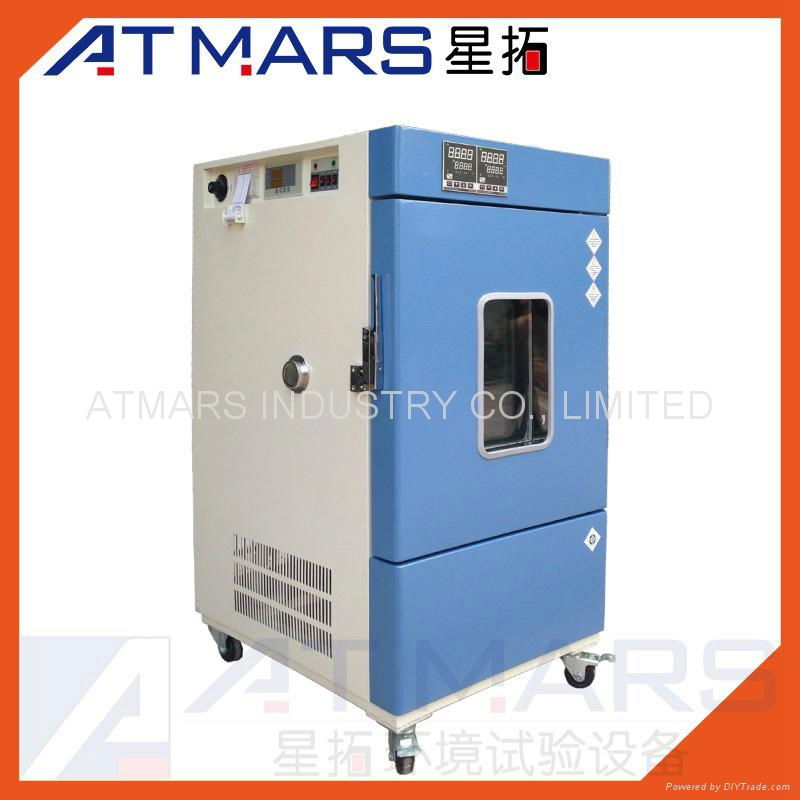

ATMARS Programmable Pharmaceutical Stability Test Chambers

ATMARS Programmable Pharmaceutical Stability Test Chambers
Model:AT-MD
Brand:ATMARS
Origin:Made In China
Category:Industrial Supplies / Pharmaceutic Machine
Label:stability chambers , test chambers , testing equipment
Price: US $10000 / pc
Min. Order:1 pc
Inquire Now

Product Description

ATMARS pharmaceutical stability chambers are specifically designed for steady state, accelerated aging, shelf life testing, expiration date testing and more of pharmaceuticals. Custom-designed chambers are available.

Product Features
Independent over-temperature protection with automatic defrosting function and long-term continuous operation
The door is equipped with a key lock and has a large observation window
Interior chamber has an internal storage tank
Imported refrigeration compressor unit to ensure stable and reliable testing
Working chamber uses mirror surface SUS304A stainless steel, which is acid-resistant, corrosion resistant and easy to clean
Temperature/humidity deviation alarm (near sound and light alarm, remote door room alarm, SMS alarm); One key release function setting for lofting or withdrawing pharmaceutical specimen
Condensing wastewater can be recycled which can save energy and extend the frequency of water use
Using imported France polymer temperature and humidity sensors for precise humidity measuring, no maintenance
Special 3Q certification technical services: IQ (installation confirmation), OQ (operation confirmation) and PQ (performance confirmation)

Standards and Test Methods
GB10586-2008
IEC60068-3-5
GB-8196-87
GB-52261-2002
GB-12265-90
ICH2003 Q1A (2) 2015

Specifications of Pharmaceutical Stability Chambers
Model AT-220MD AT-500MD AT-1000MD AT-2000MD AT-3000MD
Interior Dimension (WxHxD mm) 600x600x600 600x600x1300 950x850x1200 1200x1100x1500 1200x1200x2000
Exterior Dimension (WxHxD mm) 1160x760x1200 1160x760x1900 1510x1010x1800 1760x1260x2100 1530x1740x2300
Packing Dimension (WxHxD mm) 1270x870x1380 1270x870x2080 1620x1120x1980 1880x1380x2280 1670x1850x2480
Product Weight (KG) 180 270 350 480 650
Layers of Loading Clapboard 3 6 5 7 9
Number of Compressor (Set) 2 2 3 4 4
Installated Power (W) 1800 2300 2300 3500 3500
Operating Power (W) 600 700 700 1200 1200
Power Supply AC 220V 50Hz
Temperature Range 15℃~65℃/0℃~80℃
Temperature Constancy (±℃) 0.5
Temperature Deviation (±℃) 1.0
Humidity Range (R.H) 15%~95%
Humidity Deviation (±R.H) 3%
Remarks: 1. We reserve the right to change specifications without prior notice; 2. Customized sizes and configurations are available.



Payment Terms:L/C, T/T, Western Union and Cash
