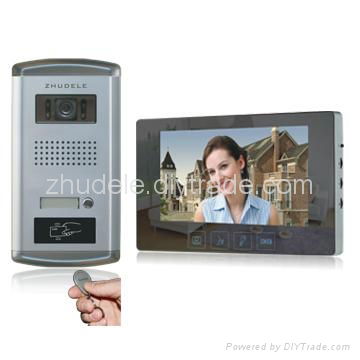

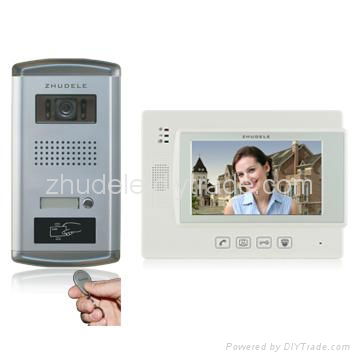

COLOUR VIDEO DOORPHONE
Image memory unit
7" TFT color screen with low power consumption, no radiation and high definition.
IP56 waterproof outdoor unit.
Outdoor camera with rain shade can avoid direct sunshine.
Intercommunication is available between indoor unit and outdoor unit..
Damage-proof outdoor unit.
High definition CCD camera, Night vision.
Hands-free intercommunication.
Monitoring the outdoor.
Brightness, chroma and ring adjustable.
8-chord melody rings for option.
DIY installation.

Performance data:
Night vision illumination distance; more than 2 meters
Gain control: Automatic
Working temperature: -25 C- 50 C
Illumination: 0.1 Lux
Camera angle: 92 C degrees wide-angle
Adapter input voltage: AC100-240V  50Hz-60Hz
Adapter output voltage  current: AC15V  1500mA
Talk time delay: 90S
Monitor time delay: 30S
Dissipation: stand-by <0.5W     working <10W
Relative humidity: 10 % - 90%(RH)

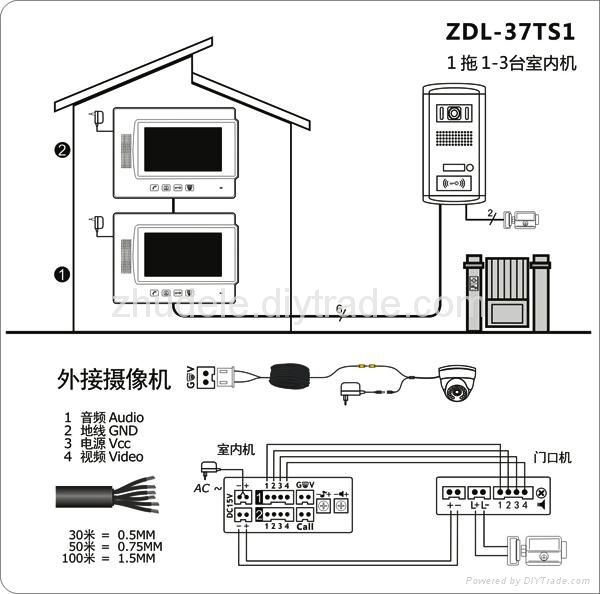

Wiring requirements
  30M: RVV6 X 0.5 mm
  50M: RVV6 X 0.75 mm
100M: RVV6 X 1.0 mm
