Model: | TDME2105C/3105C |
---|---|
Brand: | TDME |
Origin: | Made In China |
Category: | Industrial Supplies / Fishery Machine |
Label: | fishing boat , fishing boat engine , boat engine |
Price: |
-
|
Min. Order: | 1 pc |
Last Online:22 Sep, 2024 |

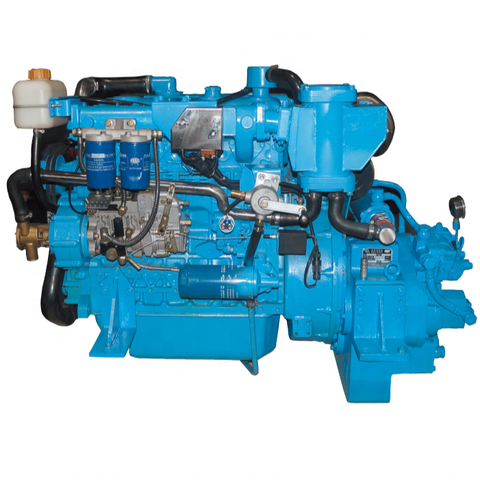

Fishing boat engine(21kw-52kw) water cooled, compact, light & durable choice with low fuel consumption & low exhuast emmissions.
It has been constructed for use where reliabilty, low operating costs and easy installation.
The products sell quite well in the world such as UK, Denmark, Germany, Turkey, Malta, Ireland, Italy, Spain, Netherlands,Sweden, Poland, Australia New Zealand,and South America.
Specification for TDME-2105C is as below:
1. Model: TDME-2105C
2. Cylinder: 2
3. Aspiration: NAtural aspiration
4. Type of combustion chamber: Direct injection
5. Bore x stroke(mm): 105 x 117
6. Piston displacement(L): 2.026
7. Compression ratio: 17.5:1
8. Rated power (kw) 21.6-26
9. Rated speed(r/min) 2000-2400
10. Max.torque(Nm): ≥ 115
11. Max. torque speed(r/min) ≤1400-1680
12. Min. fuel consumption(g/kwh) ≤ 245
13. Electrical starter: 3.8KW/12V
14. Alternator: 500W/14V
15. Total weight: 375kg
16. Max.installation angle 20º
17. Gearbox: MA125
18. Reduction Ratio: 2:1 or 2.5:1 or 3:1 or 3.5:1
19. Gearbox weight: 100KG
