Model: | DFR11 |
---|---|
Brand: | Dwell |
Origin: | Made In China |
Category: | Office Supplies / Office Equipment / Attendance Calculator |
Label: | fingerprint reader , access control , biometric reader |
Price: |
-
|
Min. Order: | 1 pc |
Last Online:25 Dec, 2024 |
Introduction

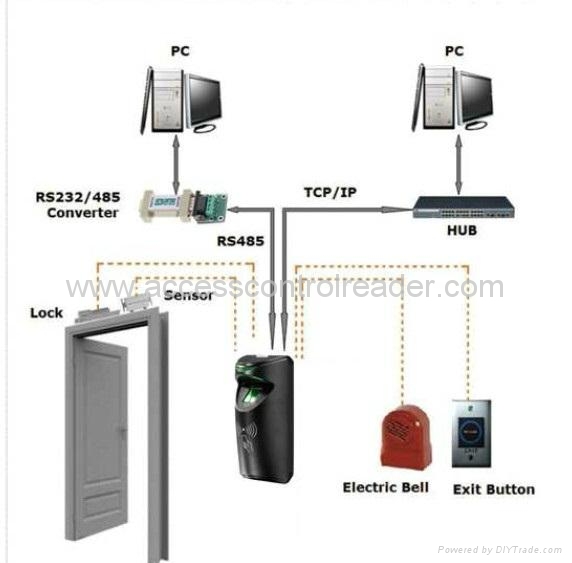

DFR11 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The DFR11 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports Wiegand 26-bit. The user can be enrolled by administrator card when the device works as a standalone access control. TCP/IP and RS232/485 are available that the device can be used in different network.TCP/IP communication make sure the data transition between the device and the PC can be easily done within several seconds.
Feature:
Fingerprint reader with durable and highly accurate optical sensor
1 touch a-second user recognition
Stores 1,500 templates and 10,000 cards
Reads Fingerprint and/or Card
Optional integrated smart card reader
Built-in Serial and Ethernet ports
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm contacts
Real-time 1-touch data export 3rd party hosted & non-hosted applications
Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Fingerprint Capacity |
1500 templates |
ID card Capacity |
10,000 |
Transaction Capacity |
N/A |
Hardware Platform |
ZEM500 |
Sensor |
Optical Sensor |
Algorithm Version |
Finger v9.0 |
Communication |
RS232/485, TCP/IP |
Access Control Interface for |
3rd party electric lock, exit button, alarm |
Wiegand Signal |
Output |
Optional Functions |
MF |
Display |
N/A |
Power Supply |
12V DC |
Operating Temperature |
0 ℃- 45 ℃ |
Operating Humidity |
20%-80% |
Dimension(W*H*D)mm |
66.4*153.5*61 |
Net Weight |
0.7kg |
