access control keypad rfid reader D302

Model:D302
Brand:Dwell
Origin:Made In China
Category:Computers & AV Digital / Computer Accessories / Memory Card & Card Reader
Label:access control , keypad reader , rfid keypad reader
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

D302 5 to 10 cm short range 125 KHz or 13.56 MHz keypad reader with wiegand 26, wiegand 34 protocol


Optional Model

D302-26, (Black Color, 125khz EM-ID wiegand 26 interface)

D302-34, (Black Color, 125khz EM-ID wiegand 34 interface)

D302-M26, (Black Color, 13.56Mhz  MF wiegand 26 interface)

D302-M34, (Black Color, 13.56Mhz  MF wiegand 34 interface)



Specification

Wiegand 26bits/ Wiegand34bits Standard Format Data Output

Less than 0.2 second Response Speed

5-10cm Proximity Range

Ambient Temperature: -25ºC to 75ºC

Ambient Humidity: 10%-90%

Built-in Antenna

Built-in LED (Double Color LED)

Built-in Loud Speaker (Buzzer)

DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current

100 Meters Communication Distance

Real Time Data Transfer

With Water-Proof Function

Audiovisual indication: When a registered card is presented to the reader, the re

LED flashes green and the beep sounds.

Can be open door by card only, keypad only or both card and keypad.

88*88*21(mm)



Package

1 pc rfid reader per box

100pcs per carton.

Carton Size: 43.5*56*23(cm)


Payment Terms:TT/Western union/Paypal/Escrow/Cash

Product Image

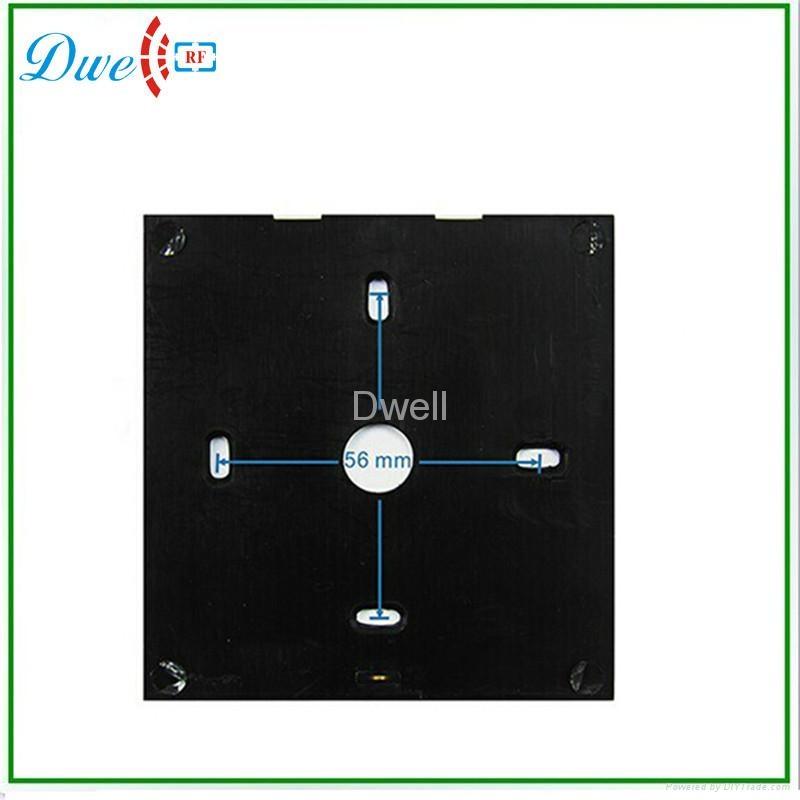

access control keypad rfid  reader D302 1
Img 1
access control keypad rfid  reader D302 2
Img 2
access control keypad rfid  reader D302 3
Img 3
access control keypad rfid  reader D302 4
Img 4
access control keypad rfid  reader D302 5
Img 5
access control keypad rfid  reader D302 6
Img 6
access control keypad rfid  reader D302 7
Img 7
