Application

Suitable for butt welding of plastic pipes and / or fittings made of PE,PP, and PVDF in worksite or workshop.

Features

Removable PTFE coated heating plate with separate temperature control system.

Electrical planning tool;

Be made of lightweight and high strength material; simple structure, small and delicate user friendly;

Low starting pressure ensures reliable welding quality of small pipes;

Separate two-channel timer shows time in soaking and cooling phases;

High-accurate and shockproof pressure meter in indicates clear readings.

Technical specifications

  Welding ranges: plastic pipes:90mm－315mm

（90mm－110mm－125mm－140mm－160mm－180mm－200mm－225mm－250mm－280mm－315mm）

 Ranges of application: PE，PP and PVDF

Working voltage: ～220V ±10%，50Hz

Total power: 4.95 kW, including: planning tool：1.1 kW, heating plate：3.1 kW, hydraulic unit motor: 0.75 kW；

PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.

Environment temperature: －10° ～ 45°

Electronic count-down timer for heating and cooling time.

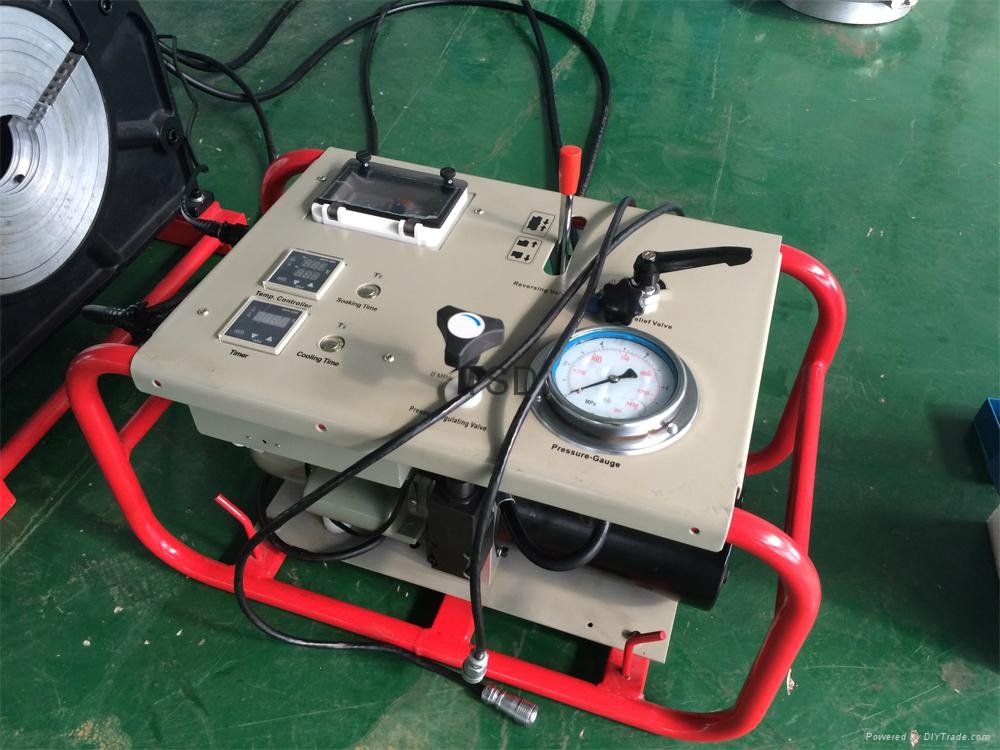

Whole machine consists of basic frame, heating plate, planning tool, hydraulic  unit and  support (for planning tool & heating plate)
