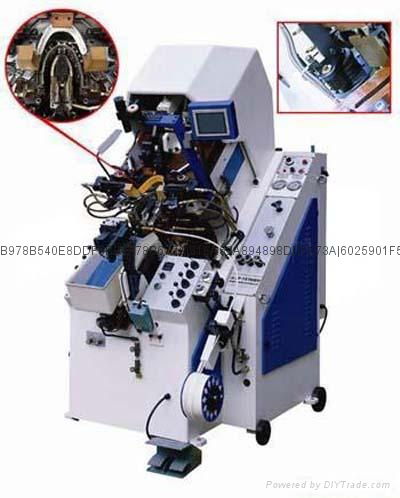

FEATURES:

1\Each set of pincers can be individually adjusted to their corredponding positions and be functioned with automatic balancing.besides, an automatic down pulling stroke can be selected and controlled according to the tension of the uppers.

2\The 9 independent pincers can be indivudually adjusted to cope with the lasting of any shape of shoe toes. The automatic balance device and the theory of automatic descending on wipers�� advancing are the very key points for upgrading the quality and rising the production capacity.

3\The wipers are functioned with inching movement and speed adjustment, which makes the whole adjustment of lasting control more convenient.

4\The machine is equipped with cross projector assembly, which is convenient for correcting toe lasting and helps new comers to easily operate the machine.

5\The last support plate is functioned with two-stage rising mechinism which can prevent the lasts slip off in conjunction with the action of heel supporter.

6\The rapid intalling and releasing structure for pincers can finish the whole process within 30 seconds.

7\The height of the last support plate is remotely controlled.There is a numerical instrction provided for reference which makes the operation easier and more efficient.

8\The pressure and speed for each machanism are adjusted and the pressure gage is also installed at the outside of the machinewhich makes the opertion and adjustment more conveniently.

9\The newly designed forward forward-and-back adjusting machanism for support plates can quickly adjust the corresponding position of the last plates and mid pincers according to the different sizes of shoes.

10\The fifth pincers can rotate inward when the wipers move in and last the shoes.The rotary angle can be adjusted which will help the upper at ball point more stretched and attached to the last.Then, by the aid of supplemental wipers, the shoes will be lasted and finished perfectly.

11\Speedy adjustment of pincers fixed plate
The pincers fixed plate adopts the double-tracking structure.It is independently adjusted on the right and left.The curve in between will not be changed when the group of righe and left pincers are adjusted, which will make the uppers ae more attached to the lasts.
