Good quality Manual Hot stamping machine

Model:HM-TC1520
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:hot stamper , hot stamping machine , hot foil stamping
Price: US $1150 / pic
Min. Order:1 pic
Inquire Now

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Last Online:24 Dec, 2024

Product Description

The semi-automatic hot stamping machine is mainly composed of the up and down of the hot stamping head, the conveying of the hot stamping paper, etc. We mainly name the hot stamping machine based on the control method of the hot stamping head up and down. Manual hot stamping machines are the simplest type of hot stamping machine. The conveyance of the hot stamping paper and the heating of the heating plate of the manual hot stamping machine still need electricity. The manual hot stamping machine is widely used in hot stamping processing in stores and small-scale factories, and can hot stamp most products such as paper, leather, plastic, and wood.

Manual hot stamping Machine //Structure

Working table

Manual in-out , size: 320*400mm.

Stamping Head drive

Manual , Level keeping pressure

Foil collecting method

 Motor-drive , Collecting time adjustable

Press

Vertical press

Temperature control

Heater tube, automatically controlling

Foil collecting

Automatically collecting

Press adjustment way

Up-down of working table

Manual hot stamping machine //Usage and characters

Guide

  • Gilding - paper, leather, wood, plastic, glass,
  • Baked - wood products, baked painting, gift box packaging;
  • Embossing - paper, leather, cloth.
  • Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  • Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  • Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.

Application fields

  • Paper Gilding, Leather Impression, Wood ware Baking
  • Paper Concave-convex embossing, Cloth hot stamping,
  • Plastics Bronzing ,Glass and metal Heat transfer

Manual hot stamping Machine //Parameter

Technical parameters

HM-TC1520

HM-TC2129

  • Size of Hot Plate :150×200 mm
  • Work Table Size :320 ×400 mm
  • Max. Pressure :4000Kg
  • Max. Head Stroke :40mm
  • Heater Capacity: 1200 W
  • Foil Controller :motor Controller
  • Temperature adjustment :0-300oC。
  • Size of Hot Plate :210×290 mm
  • Work Table Size :320 ×400 mm
  • Max. Pressure :4000Kg
  • Max. Head Stroke :40mm
  • Heater Capacity: 1200 W
  • Foil Controller :motor Controller
  • Temperature adjustment :0-300oC。
HM-TC1927 HM-TC3025
  • Size of Hot Plate :190×270 mm
  • Work Table Size :320 ×400 mm
  • Max. Pressure :4000Kg
  • Max. Head Stroke :40mm
  • Heater Capacity: 1200 W
  • Foil Controller :motor Controller
  • Temperature adjustment :0-300oC。
  • Size of Hot Plate :300×250 mm ]
  • Work Table Size :320 ×400 mm
  • Max. Pressure :4000Kg
  • Max. Head Stroke :40mm
  • Heater Capacity: 1200 W
  • Foil Controller :motor Controller
  • Temperature adjustment :0-300oC

Works supply

  • 110V-220VPower supply;

Package list

  • Package list: 0.750 x 0.670 x 0.960 mm
  • Gross weight: 180kg
  • CBM: 0.4824

H.S.Code

8443198000

Certificate

CE

Manual hot stamping machine //Advantage

Function

  • Table can be manually pulled out for easy product to take on and off;
  • Table can be back-front, rotate adjustment, quick easy safe operation;
  • Table with screw height adjustment control, precision and stability;
  • Automatic temperature control system, temperature can be set freely;
  • Stamping time can be adjusted;
  • Automatic Stamping foil feeding, Foil collection, foil collection time can be adjusted;
  • Heating pipe heating systems, long life, easy to replace;
  • Manual stamping operation, self-locking mechanism Pressing constant pressure;
  • High-strength steel plate and cast gilt table, flatness

Application:
Basic Configuration:
1. Silicon rubber Edition one pic;
2. High temperature Paper one inch;
3. Stamping foil one roller;
4. One set tool;
5. Spring 2 Pcs;
6. AC contactor 1 pc;
7. Rubber Ring 1 pc;
8. Thermocouple 1 pc;
9. Limit Switch 1 pc;
10. Heater tube 2 pcs.

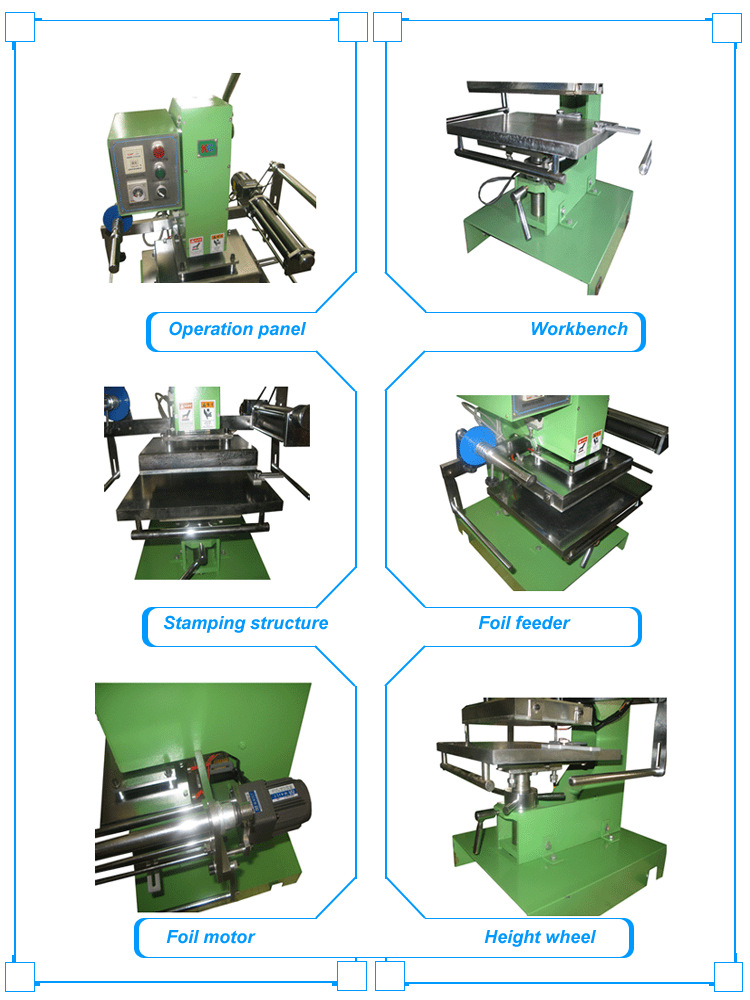

Base structure:
Body

The body is the basic frame of the entire manual hot stamping machine, which is used to support and fix other parts to ensure the stability of the machine. It is usually made of metal materials, such as cast iron or steel, to give it sufficient weight and strength to reduce shaking during the hot stamping operation.

Heating plate and temperature control system

The heating plate is a key component of the hot stamping machine, and a heating element, such as an electric heating tube, is installed inside. It can quickly heat up and remain within the set hot stamping temperature range to provide heat for hot stamping. The heating and constant temperature control of the heating plate are controlled by the thermostat, and the operator can set different temperatures according to the different hot stamping materials.

Pressure regulating device
The pressure is adjusted by a handle, a screw or a pneumatic device. For example, when using a screw structure, the screw is moved up and down by rotating the handle, thereby changing the distance between the heating plate and the workbench, thereby adjusting the pressure during hot stamping.

Workbench
The workbench is where the hot stamping material is placed, which can withstand a certain pressure and temperature while avoiding scratching the hot stamping material. To prevent the product from moving during the hot stamping process, the workbench may be equipped with some simple positioning devices, such as clips or magnetic devices. Clips can clamp the edges of materials such as paper and leather, while magnetic devices are suitable for some metal materials that can be magnetically attracted. Some products require special fixtures to fix the product.

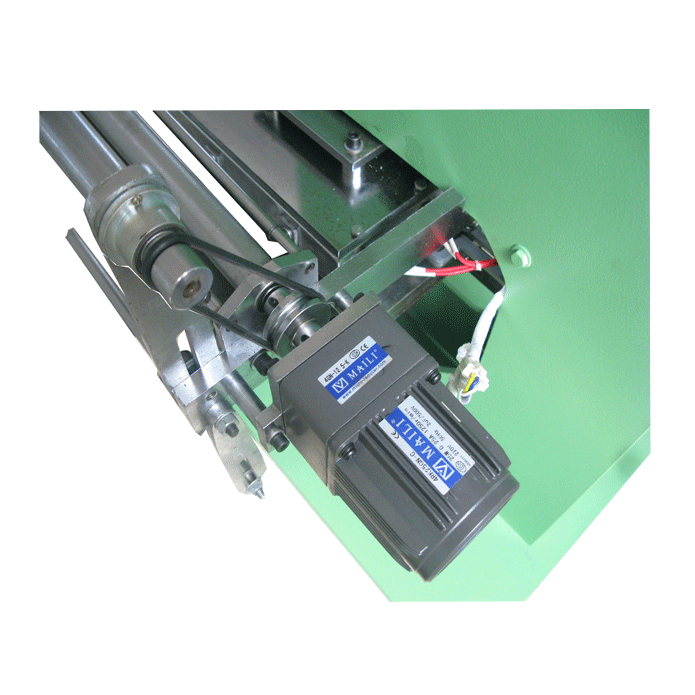

Hot stamping foil conveying device
Includes unwinding structure and rewinding mechanism: used to place hot stamping foil rolls and collect used hot stamping foil. Hot stamping foil conveying device is generally controlled by micro motor.

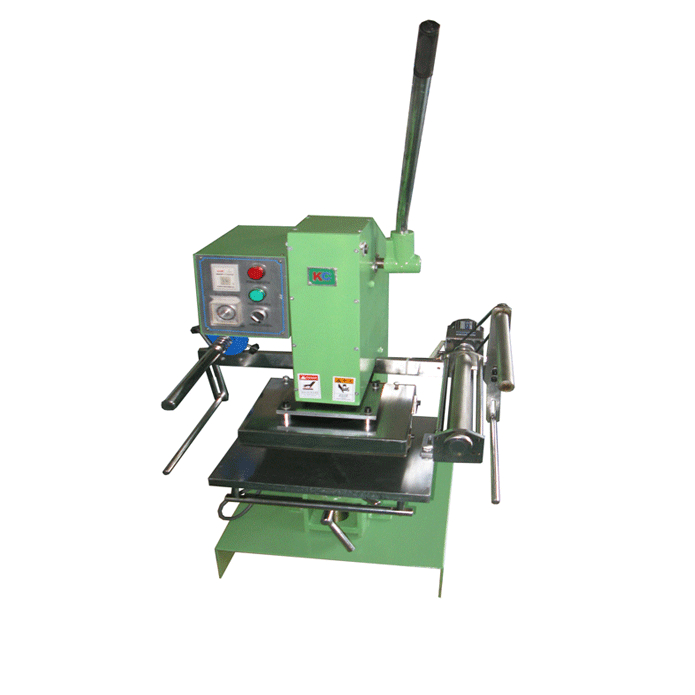

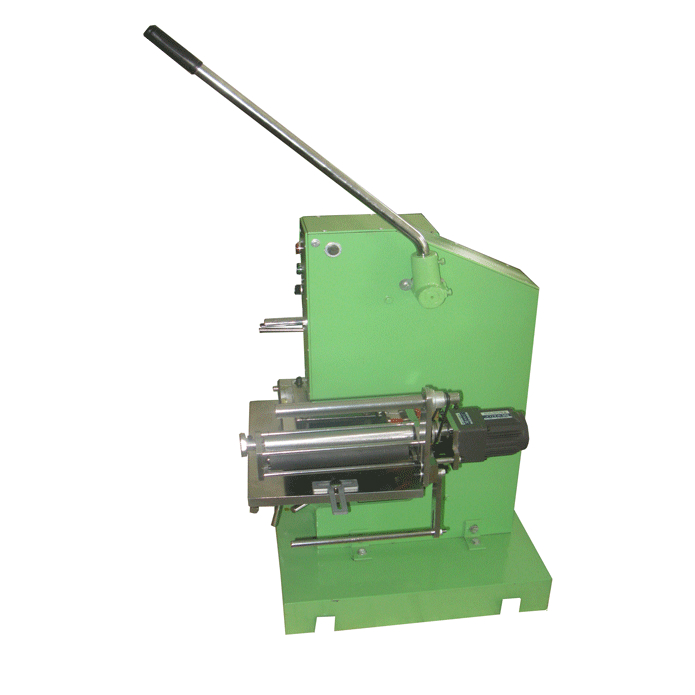

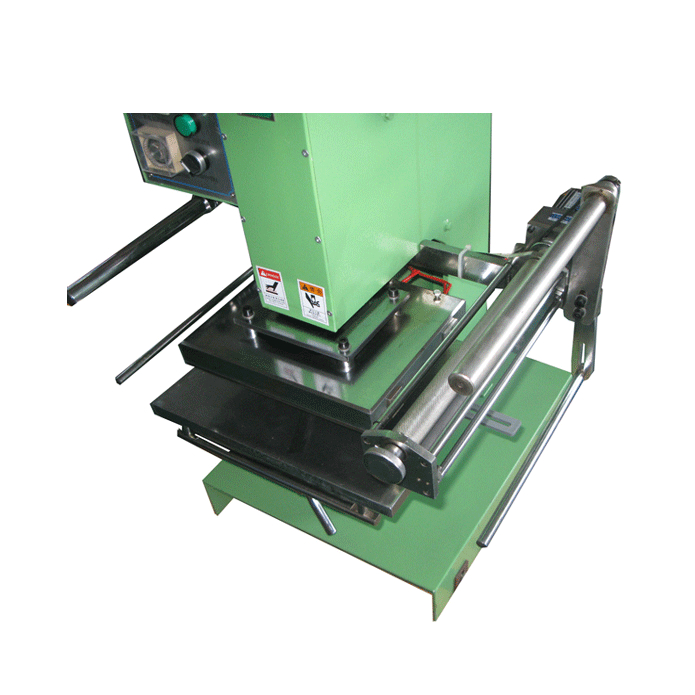

Product Image

Manual hot stamping machine
Img 1
Manual hot stamping machine
Img 2
Manual hot stamping machine
Img 3
Manual hot stamping machine
Img 4
Manual hot stamping machine
Img 5
Manual hot stamping machine
Img 6
Manual hot stamping machine
Img 7
