Simple waterproof access control card reader 001A01

Model:001A01
Brand:Dwell
Origin:Made In China
Category:Computers & AV Digital / Computer Accessories / Memory Card & Card Reader
Label:card reader , access control , RFID card reader
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description



001A01 Wiegand 26/34, RS232, RS485 Proximity Card Reader



Specification

·            Less than 0.2 second Response Speed



·            Less than 0.5 seconds Proximity Time Distance



·            2-15cm Proximity Range



·            Support EM-ID/HID 125Khz or MF 1 Card (13.56 MHz Frequency)



·            -25℃ to 75℃Ambient Temperature,10%-90% Ambient Humidity



·            Built-in Antenna



·            Built-in LED (Double Color LED)



·            Built-in Loud Speaker (Buzzer)



·            DC 12V Working Voltage,70mA Working Current



·            100 Meters Communication Distance



·            Real Time Data Transfer



·            Black Color



·            PVC Case Material (Black Resin for Water-Proof Function)



·            123.5mm*55mm*22.5mm



·            Card serial number read out order can be customer –defined.







 Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

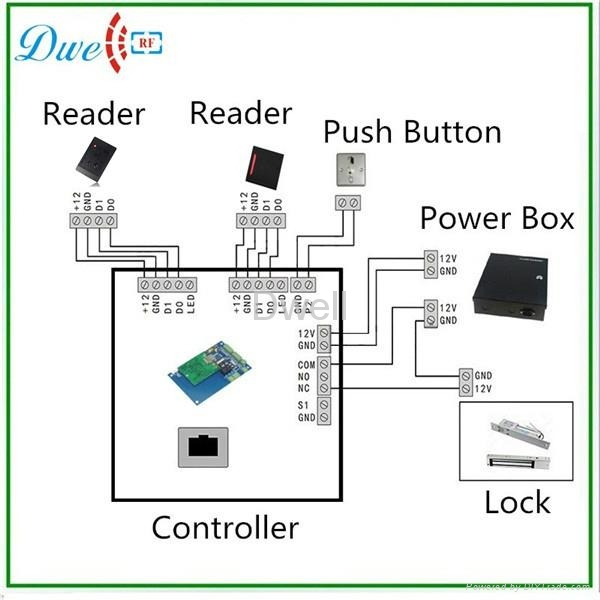

Wire Connection



Red        DC 5V-16V



Black       GND



Blue         D1



White        D0



Brown        BEEP



Green        LED



Yellow       Alarm



Notice



1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply



2. When external Power is used, make sure sharing the power with Controller Box or using the same GND



3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires


Payment Terms:TT/Western union /Escrow/Paypal/Cash
