Marine antenna TCQJ-GB-3-159.5VA (MA-F02A)

Model:GB-3-159.5VA
Brand:HYS
Origin:Made In China
Category:Electronics & Electricity / Antenna
Label:MARINE ANTENNA , BOAT ANTENNA , ANTENNA
Price: -
Min. Order:-
Inquire Now

Member Information

Detail

QUANZHOU TRUEST COMMUNICATION CO. ,LIMITED

Biz MemberFu Jian - China
Last Online:14 Jun, 2023

View all products. (409)

Product Description

ELECTRICAL SPECIFICATIONS
FrequencyRange
156-163MHz
Band width
5MHzWithin2.0:1 VSWR
Impedance
50Ω

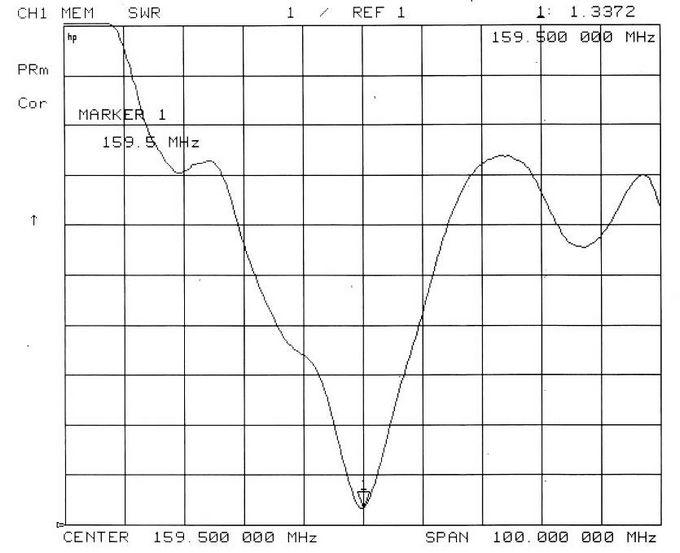

VSWR
Nominally 1.5:1 at 159.5 MHz
Gain
3.0dBi
Polarization
Vertical
Maximum Power Input-watts
50W
Horizontal Beam Width
360º
Vertical Beam Width
58º
DC Ground
NoDCGround
The antenna will read open on continuity test.
MECHANICAL SPECIFICATIONS
Height
1005±5 mm
Connector/Termination
PL-259,Loosen
Radome material
Fiberglass
Ferrule
Aluminum Alloy
Coax Supplied
RG-58U(white),4.5m
N.T Weight
390g

Product Image

Marine antenna TCQJ-GB-3-159.5VA (MA-F02A) 1
Img 1
Marine antenna TCQJ-GB-3-159.5VA (MA-F02A) 2
Img 2
