| Model: | TB-150 |
|---|---|
| Brand: | Shining |
| Origin: | Made In Taiwan, China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | Terminal Block , 150A Terinal Block , Barrier Terminal |
| Price: |
-
|
| Min. Order: | 200 pc |
| Last Online:10 Jan, 2023 |
TB-150 Cable Connector 600V 150A Barrier Assembly Terminal Block
| More Information | ||
|
TB-150 |
|
|
|
http://www.terminalblockmanufacturer.com/pro.php?m=d&pid=21&cid=25&f=18 |
||
|
Product Features
|
|
TB Series Assembly Terminal Block is designed for panel installation. They can be assembled freely to any number of poles, and they can be screwed through the screw holes on the end plates. For DIN rail installation type, our TE Series Terminal Block could be your choice. The rated current can be60A, 80A, 100A, 125A, 150A, 200A, 300A, 400A. It can also be assembled with transparent cover or protective cover for basic protection. There is a paper marker strip on each set of TB terminal block, and we provide strip typing service. The general color is black, and the color can be customized if certain quantity is reached. |
•Item number: TB-150
•Rating: 600V, 150A
•Size: 30.0+44.0*70.0*40.0mm (L*W*H),
•Screw Size: M8
•Wire Size: 60mm2 / 1/0
•Sectional or one-piece construction. Easy and Flexible to form multipole assembly.
•Panel Mounting with mounting holes and screws.
•Marking paper strips and protective covers are available.
•Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.
•Molded from UL94-V2 material with excellent flame- and shock-resistance
•Packing: 50pcs/box, 200pcs/4boxes/N.W. :19.6kgs /carton
•Webpage: http://www.shining.com.tw/1EN/ENterminal_blocks_TBa.htm
|

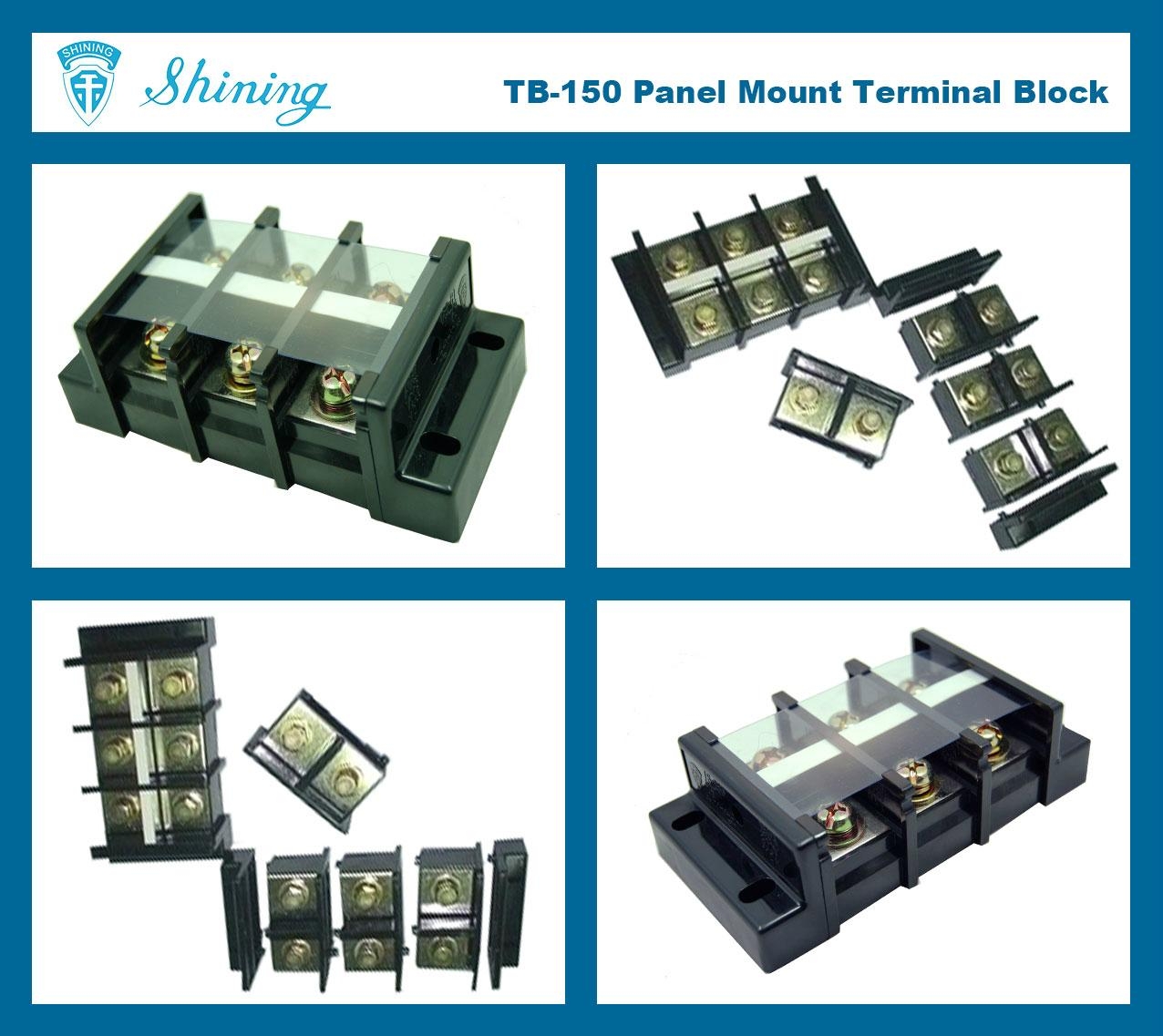

TB series Product Picture |
|
|||||||
|
Item No. |
TB-060 | TB-080 | TB-100 | TB-125 | TB-150 | TB-200 | TB-300 | TB-400 |
| Specifications | ||||||||
| Total Length (L) [mm] | 20.5*n+42 | 20.5*n+42 | 26.5*n+42 | 26.5*n+42 | 30.0*n+44 | 35.0*n+44 | 42.0*n+50 | 50.0*n+50 |
| Ref. Length (L1) [mm] | 20.5*n+26.5 | 20.5*n+26.5 | 26.5*n+26.5 | 26.5*n+26.5 | 30.0*n+27.5 | 35.0*n+27 | 42.0*n+30.5 | 50.0*n+30.5 |
| Gap (A) [mm] | 16.5 | 16.5 | 22.5 | 22.5 | 26 | 31 | 37 | 45 |
| Pitch (B) [mm] | 20.5 | 20.5 | 26.5 | 26.5 | 30 | 35 | 42 | 50 |
| Width (W) [mm] | 52 | 52 | 64 | 64 | 70 | 80 | 106 | 106 |
| Ref. Width (W1) [mm] | 30 | 30 | 35 | 35 | 40 | 50 | 60 | 60 |
| Height (H) [mm] | 34 | 34 | 38 | 38 | 40 | 40 | 58 | 58 |
| Ref. Height (H1) [mm] | 11 | 11 | 15 | 15 | 18 | 22 | 25 | 28 |
| Screw (C)
(Steel, Zinc Plated) |
M6 | M6 | M8 | M8 | M8 | M10 | M10 | M10 |
| Rated Torque [N-m] | 2.5 | 2.5 | 6.0 | 6.0 | 6.0 | 10 | 10 | 10 |
| Rated Torque [in-lb] | 22.1 | 22.1 | 53.1 | 53.1 | 53.1 | 88.5 | 88.5 | 88.5 |
| Poles/Positions (P) | Any (n: the Number of Poles) | |||||||
| Electrical Specification | ||||||||
| Rated Voltage [V] | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Rated Current [A] | 60 | 80 | 100 | 125 | 150 | 200 | 300 | 400 |
| Wire Size [mm2] | 16 mm2 | 25 mm2 | 35 mm2 | 50 mm2 | 60 mm2 | 100 mm2 | 175 mm2 | 280 mm2 |
| Wire Size [AWG] | AWG 6 | AWG 4 | AWG 2 | 1 | 1/0 | 3/0 | 350 | 550 |
| Materials | ||||||||
| Insulator Materials | PC (PA66) | |||||||
| Color | Black (White, Blue, Red, Brown, ...) | |||||||
| Flame Retarded Grade | UL94V-2 (UL94V-0) | |||||||
|
Operating Temperature [oC] |
-400C~+1100C (Max: +2200C) | |||||||
| Conductor | Brass, Nickel Plated (Copper, Tin Plated) | |||||||
| Accessories & Parts |
Paper Marker Strips & Transparent Cover come with products for free. Others are optional.
|
|||||||
| End Plate | TB-060EP | TB-080EP | TB-100EP | TB-125EP | TB-150EP | TB-200EP | TB-300EP | TB-400EP |
| End Clamp | NA | |||||||
| DIN Mount Rail | NA. Apply Screws for mounting/fixing. | |||||||
| Protective Cover | M-PCV-A060 | M-PCV-A060 | NA | NA | NA | NA | NA | NA |
| Transparent Cover | M-CV-060 | M-CV-060 | M-CV-100 | M-CV-100 | M-CV-100 | M-CV-200 | M-CV-300 | M-CV-300 |
| Paper Marker Strip (Free) | M-MKS-060 | M-MKS-060 | M-MKS-060 | M-MKS-060 | M-MKS-060 | M-MKS-060 | M-MKS-060 | M-MKS-060 |
| Mounting Rod [mm] (Steel) | M-MRD-060S | M-MRD-060S | M-MRD-060S | M-MRD-060S | M-MRD-060S | M-MRD-060S | M-MRD-060S | M-MRD-060S |
| Remarks | Ex: TE-060-08P (8 poles assembly of TB-060) | |||||||
