10W LED, 25W Solar Module Solar Integrated Courtyard Light

Model:HSL 130
Brand:Honluck
Origin:Made In China
Category:Consumer Electronics & Lighting / Lighting / Outdoor Lighting
Label:solar led lighting , street light solar , solar PIR light
Price: -
Min. Order:2 pc
Inquire Now

Member Information

Detail

Honluck solar technology limited

Free MemberGuang Dong - China
Last Online:28 Apr, 2019

Product Description

The solar courtyard light absorbs energy from the universe , and combines with high efficiency solar panel, LEDs, and lithium battery.

It adopts advantage technics , such as micro-controller, human infrared sensor and so on.

It combines with integrated design to achieve multiple features, such as lower power consumptionbut high brightness(5W average equals to 100W incandescernt light), long lifespan and maitenance free, meanwhile with waterproof function and great thermal dissipation.

It is one of ours great innovation  product.



Great Features:

Solar light to position where you want it.

- Easy installation.

- No wiring necessary.

Brighter light when you need it.

- Built-in infra-red motion sensor regulates light output automatically.

- Changes from dim mode (30%) to bright mode (100%) upon motion detection.

- Light sensor restricts operation during daylight to save battery power.

Built tough for tough conditions

- Bright 10W LED light and powerful 25W solar panel suit many commercial &industrial applications.

Rustproof, dustproof and waterproof

- Rated IP65 for all outdoor applications.

Zero running cost

- Fully solar powered.

- Lithium iron phosphate battery prolongs life (More than 8 years)& protects the environment.





Physical Specification
Light Source: 10W LED Lamp


Solar Module: 25W


Lithium Battery: Internal


AC Input: NO


Human Infrared Sensor: Yes


Over Charge/Discharge protection: Yes

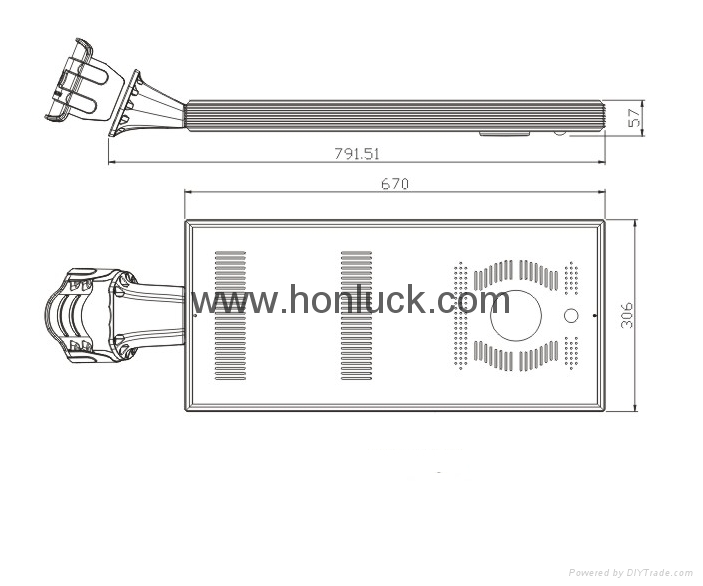

Dimension: 822(L)×306(W)×57(T)mm


Net Weight: 8.5Kg










Light Output


Luminous flux(typ.):1)Bright mode: 980lm; 2)Dim mode:370lm

View Angle: 120°


Color Temperature: 5000K-6000K


Light Sensitivity (typ.):30lx


Working Time: 1)Bright mode:≧8 hrs; 2)Dim mode: ≧24 hrs





Environmental Rating


Operating Temp.Range:1) Charging Temp:0℃~+60℃;2)
Discharging Temp: -20℃~+60℃


Storage Temperature Range: -20℃~+45℃


IP Rate: IP65




Installation


Recommended Installation Height Rage: 3~5m


Recommended Installation Distance of Poles Range: 13~18m


Price Terms:EXW Guangzhou
Payment Terms:T/T OR Western Union
Packing:2 pieces/box
Standards Certificate:CE&RHOS

Product Image

10W LED, 25W Solar Module  Solar Integrated Courtyard Light 1
Img 1
10W LED, 25W Solar Module  Solar Integrated Courtyard Light 2
Img 2
10W LED, 25W Solar Module  Solar Integrated Courtyard Light 3
Img 3
10W LED, 25W Solar Module  Solar Integrated Courtyard Light 4
Img 4
10W LED, 25W Solar Module  Solar Integrated Courtyard Light 5
Img 5
