Pipeline Metal Detectors with reject mechanism MD-D63
Product Description
Pipeline Metal Detector for sauce MD-D63
【Application】
The equipment is used in sauce, chocolate, soups etc between pump and filling station.
【Characteristics】
1.Detection and separation of metal contaminants for pumped, liquid and paste productes;
2 Easy to integrate in pipeline systems by quick connectors;
3Reliable rejection of contaminants is guaranteed by the use of quick valve according to different product characteristics.
4 Outstanding ease of operation with product auto-learn function;
5 High detection sensitivity and stability compared with the tunnel machine;
6 Designed for easy cleaning in high-strength stainless steel;
【Technical Parameter】
|
Model
|
MD-D63
|
|
Specifications
|
D50
|
D63
|
D80
|
|
Detection diameter(mm)
|
50
|
63
|
80
|
|
Sensitivity Fe (mm)
|
0.5
|
0.6
|
0.7
|
|
Sensitivity SUS(mm)
|
1.2
|
1.5
|
2.0
|
|
Alarm model
|
Sound and light alarm
|
|
Exclusion
|
When detecting metal, flap excludes automatically
|
|
Pressure requirements
|
≥1.6Mpa
|
|
Environment
|
Temperature 10-40°C,humidity less than 85%(avoid freezing,condensation)
|
|
Power supply
|
220V/110V AC
|
Remarks:
1 As mentioned above the sensitivity is in the empty state,and the actual sensitivity is relative with factory environment and product effect; 2 Detection volume per hours is relative with product weight and speed;
3 The products of different specification can be ordered according to the customers requirements.

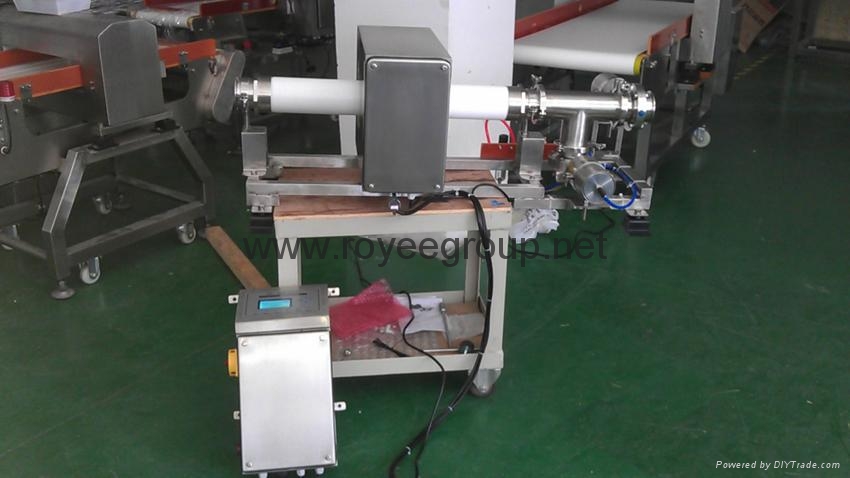

Product Image
Img 1
Img 2
