Single Phase Bridge Rectfier Diode Module MDS100A

Model:MDS100A
Brand:LIUJING
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Diode & Triode
Label:diode module , rectifier module , bridge module
Price: US $5.9 / pc
Min. Order:100 pc
Inquire Now

Member Information

Detail

Product Description



Single Rectifier Diode Module



Features

Electrically-isolated chip and baseboard AC

2500V

Sealing package according to international

standard

Full crimping structure, sensitive to

temperature and power cycle duty

Modules under 350A with compulsive

wind-cooling. Modules under 400A either

with wind-cooling or water-cooling

Convenient installation, use and maintenance

Compact and lightweight

Welding technique under the protection of

vacuum and hydrogen gas

Typical Applications

DC power supply for instrument

and equipment

AC/DC motor controls

Various rectifying power supplies

Soft start

Welder

Converter

Battery charge and discharge

Type

Id

IF(AV)

Tc

VRRM

IRRM

VTM/ITM

Tjm

Viso

Outline



A

A

V

mA

V/A

V(AC)



102A 102A-1

MDS30A

30

10

100

600~2000

8

1.45/30

150

2500

MDS60A

60

20

100

600~2000

8

1.45/60

150

2500

102A 102A-1

MDS100A

100

35

100

600~2000

10

1.45/100

150

2500

102A 102A-1

MDS150A

150

50

100

600~2000

10

1.50/150

150

2500

103A 103A-1

MDS200A

200

68

100

600~2000

10

1.50/200

150

2500

103A 103A-1

MDS300A

300

100

100

600~2000

10

1.50/300

150

2500

104A

MDS400A

400

135

100

600~2000

10

1.50/400

150

2500

104A

MDS500A

500

168

100

600~2000

10

1.50/500

150

2500

105A

MDS600A

600

200

100

600~2000

10

1.50/600

150

2500

105A

MDS800A

800

270

100

600~2000

10

1.50/800

150

2500

105A


Product Image

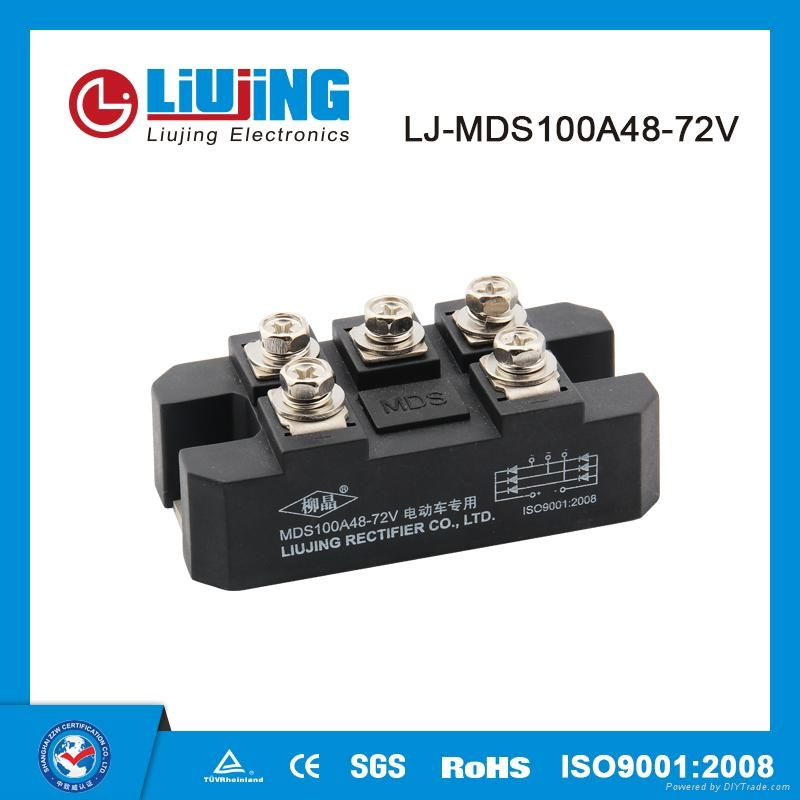

Single Phase Bridge Rectfier Diode Module MDS100A 1
Img 1

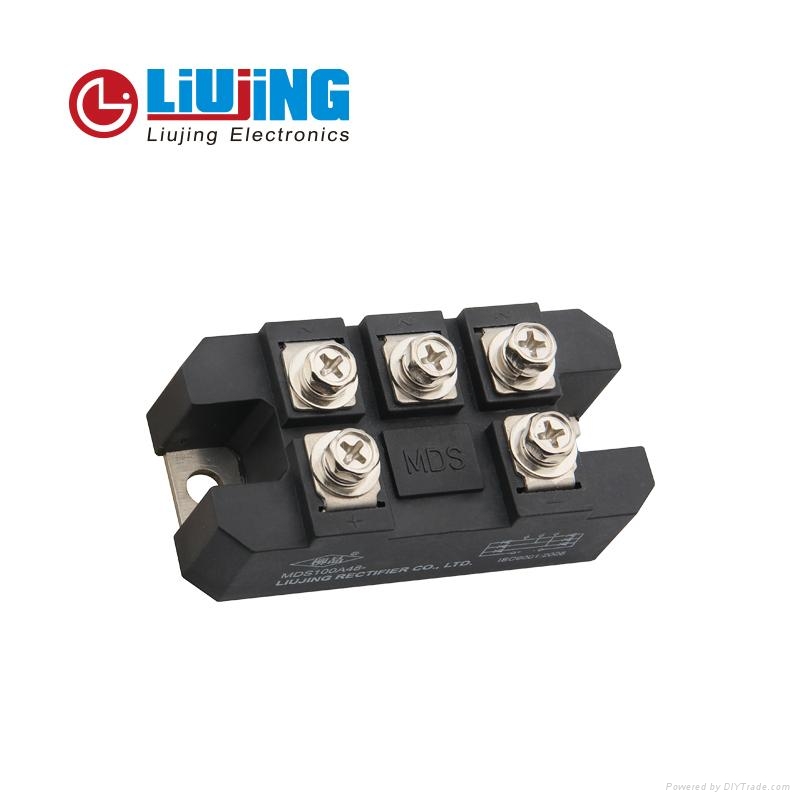

Single Phase Bridge Rectfier Diode Module MDS100A 2
Img 2
Single Phase Bridge Rectfier Diode Module MDS100A 3
Img 3
Single Phase Bridge Rectfier Diode Module MDS100A 4
Img 4
Single Phase Bridge Rectfier Diode Module MDS100A 5
Img 5
