wire cable Surface concave-convex Detector

wire cable Surface concave-convex Detector 1

Model:	LY-1003D
Brand:	LY-1003D
Origin:	Made In Japan
Category:	Electronics & Electricity / Optical Fiber, Cable & Wire / Computer Cable
Label:	wire Detector , cable Detector , power cables
Price:	-
Min. Order:	-

Inquire Now

Member Information

dong guan ke yang electronic co.,ltd

Biz MemberGuang Dong - China

Last Online:18 Nov, 2024

Product Description

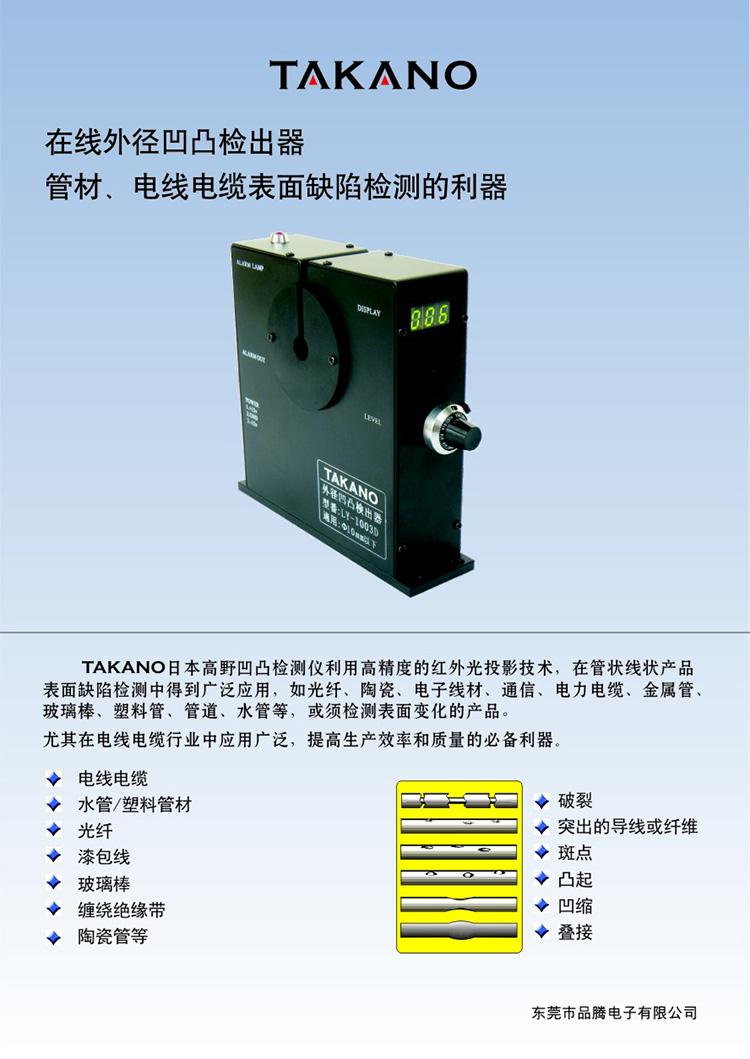

TAKANO LY-1003D

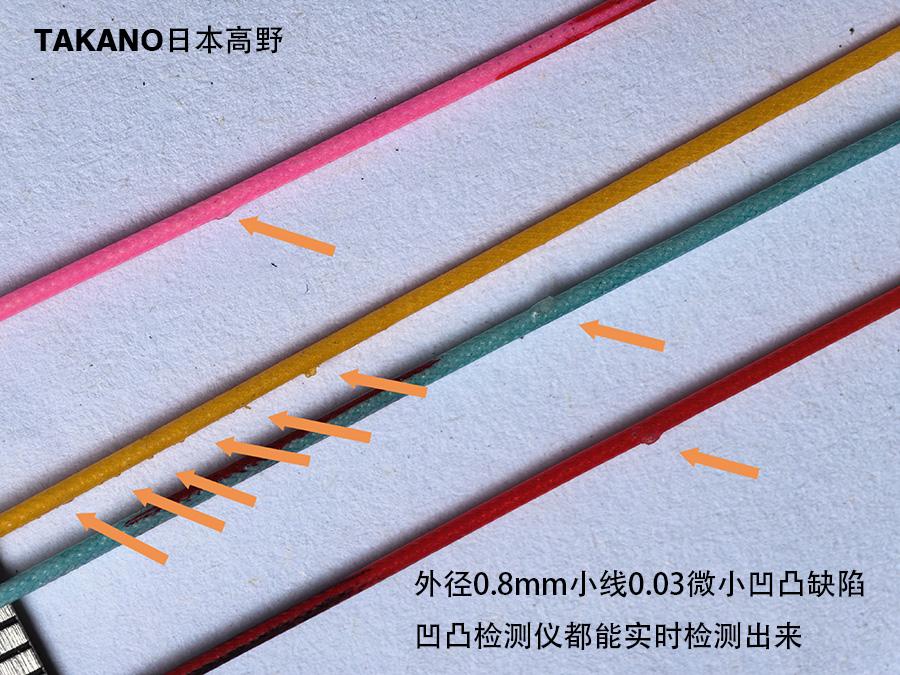

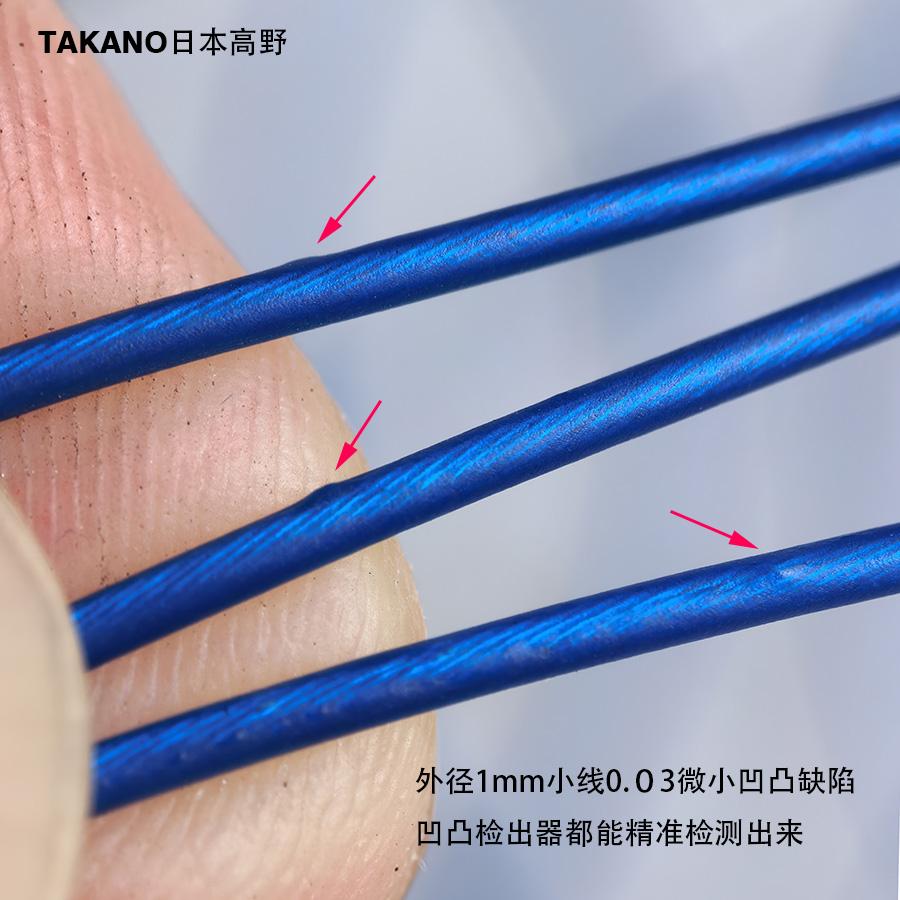

LY-series Surface Variation Detectors were designed to monitor surface variations in an object by means of emitting light to the object and detecting a difference of interrupted light volume which is affected by the variation.
Those LY-series detectors can be used at production line of all products such as optical fibers, enamel, electric and vinyl wires, communication and power cables, metal and glass rods, plastic tubes, pipes, hose, etc........,
which are required to detect surface variations.

Features

It is a device that detects the change in the size of the shadow blocked by the measuring object.
Surface Variation can be detected in all production lines such as pipes in general, vinyl cable, communication cable, power cable, plastic, rubber and glass rod etc.
It is high speed / continuous detection by non-contact.
It is easy to handle.

Medium wire counterpart (Measurement object diameter: Φ 0.05 to 55 mm)
Model No.	LY-0503D	LY-1003D	LY-2003D	LY-2503D	LY-3503D	LY-5503D
Direction of detection	3 directions	3 directions	3 directions	3 directions	3 directions	3 directions
Measurement method	Double slit infrared LED projection type
Adaptive work outer diameter	φ 0.05 - 10 mm		φ 0.1 - 25 mm		φ 0.2 - 35 mm	φ 0.2 - 55 mm
Unevenness detection range	0.05 to 10 mm
Unevenness detection accuracy	Maximum setting within ± 1%
Slit length	48 mm
Slit width	1 mm
Linear speed [*1]	1 m / min to 1500 m / min
Recorder output	± 0.1 V / 0.1 mm (for each axis)
Alarm output	Uneven red LED lit, Relay contact output (AC 250 V 2A resistive load)
Alarm time [*2]	0.5 seconds
Operating temperature	-5 to 50 ° C (without condensation)
Power supply [*3]	AC 100 V-240V 50/60 Hz
Power consumption	10VA	10VA	15VA	20VA	25VA	35VA
Outer dimension	150 × 142 × 40 [mm]	150 ×142 × 40 [mm]	300 × 246 × 40 [mm]	300 × 246 × 40 [mm]	300 × 246 × 40 [mm]	405 × 350 × 60 [mm]
Weight	1kg	1kg	2kg	4kg	4kg	5kg

Product Image

Img 1

Img 2

Img 3
