| Model: | CWT5005 |
|---|---|
| Brand: | CWT |
| Origin: | Made In China |
| Category: | Security & Protection / Alarm |
| Label: | gsm alarm module , alarm module , gsm module |
| Price: |
US $76
/ pc
|
| Min. Order: | 1 pc |
| Last Online:18 Feb, 2022 |
CWT5005 GSM SMS Alarm Module, SMS Alarm Module controller 2 inputs 2 ouputs Support 3g version (Skype: glare.wang)
Features
·Configurable for alarm and recover sms
·Automatically report the status of itself on schedule
·Support remote setting via sms commands
·Preset 10 phone numbers(can be distributed authority)
·Remote add/edit/delete phone group
·Automatically update internal clock via sms
·Time stamped in alarm or recover messages
·Support ring call when alarm
·Temperature sensor (optional)
·Internal battery (optional)
·Easy used GUI configure software
·Adopted highly integrated industrial CPU
·Reliable performance with built-in double watchdog
·Low maintenance, 24×7 operation
2 digital inputs feature
·NO or NC type can be preset
·Configurable for alarm and recover sms
·Configurable for alarm ensure time
·Configurable for alarm delay time
·Configurable for service number’s authority of receive inputs alarm
·Remote query inputs status
2 relay drivable outputs
·Multiple output type can be preset
·Remote On/Off/Pulse outputs
·Configurable for pulse time
·Remote query outputs status
·Outputs can be activated by alarm or call
·Outputs can be activated on schedule
Specifications
|
Parameter |
|
|
DC Power supply |
12-24V DC (Standard adapter: DC 12V/1.5A) |
|
Power consumption |
12V input Max. 150mA/Average 50mA |
|
Frequency range |
Quad-frequency 900/1800/850/1900HMz |
|
SIM Card |
Supporting 3V SIM Card |
|
Antenna |
50 Ω SMA Antenna interface |
|
Serial |
RS232 |
|
Temperature range |
-30°C ~ +70 °C |
|
Humidity range |
Relative humidity 95% |
|
Digital Input |
2 digital inputs(Dry contact) |
|
output |
2 drivable relay outputs(open-collector outputs) |
|
Output drive voltage |
Equal to input DC voltage |
|
Output drive power |
Drive voltage ≤35V, drive current ≤500mA |
|
Exterior dimension |
88×60×25mm |
|
Weight |
150 g |

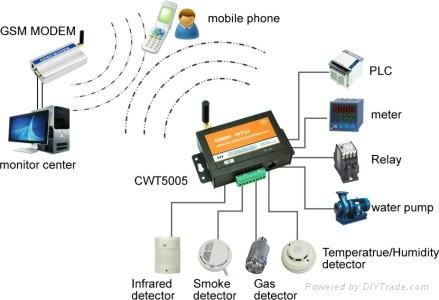

Application:
