high voltage power module 1
  • high voltage power module 1

high voltage power module

Model:MD
Brand:Wisman
Origin:Made In China
Category:Electronics & Electricity / Power Supply & Distribution / Switching Power Supply
Label:high voltage , power supply , HV module
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

Xianyang Wisman High Voltage Power Supply Co.,Ltd

Free MemberShaan Xi - China
Last Online:13 Mar, 2019

View all products. (14)

Product Description
Product Name MD
Power（W） 1W-5W
Output Voltage(KV) ,0.3,0.5,0.75,1,1.5,2,



ISO9000:2008 certified precision module .The MD Series is ideal for OEM applications requiring a competitively priced, precision high voltage module.

APPLICATIONS
High voltage testing
PMT,MCP,radiation counter
Electron Beam/Ion Beam
Mass spectrometry
Electrostatic chuck(ESC)
PhotoMaltiplier Tubes
Scintillators
Electron Guns
Ion Guns
Nuclear Instruments
Electrostatic lenses
Spectroscopy
Microchannel Plates

SUMMARY
The MD serise ie a regulated, versatile,modular HV power supply used in a wide variety of applications  including MDss spectrometry and Electron Microcopes.From the OEM to the laboratory,they are an excellent choice when you require a highiy stable output.Output can be controlled using either an external control voltage or external variable resistor.With a diverse range of models up to 6KV/30W,you will find something for nearly every requirement.

SPECIFICATIONS
Input Voltage:
+15Vdc±1VDC,450mA TYP.
Voltage Regulation:
Line: <0.02%
Load: <0.02%
Current Re gulation:
Line: <0.02%
Load: <0.02%
Output Voltage:
Continuously adjustable over entire output range. Available
in either positive or negative output polarity. See table for
voltage ranges.
Output Voltage Control: Controlled by either:
1) External potentiometer 100k (set internal pot. to MDx.)
2) Remote differential voltage programming (0 to +6V gives
0 to full output).
Accuracy:
2% on all programming and monitoring.
Temperature Coefficient: (typical)
Optional: 25ppm/°C (T Option)
Environmental:
Temperature Range:
Operating: -40°C to 65°C case temperature
Storage: -55°C to 85°C, non operational
Humidity:
10% to 90%, non-condensing.
Dimensions:
2.75”L X 2” W X 0.67”H
(70mm X 50.8mm X 17mm)
Weight:
4.25oz. (120g), typical

Payment Terms:100%T/T

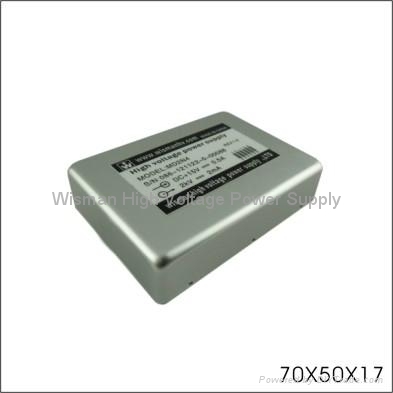

Product Image

high voltage power module 1
Img 1
