| Model: | GREAT-330iM |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | milling CNC Control , EngravingCNC System , CNC Controller |
| Price: |
US $1100
/ pc
|
| Min. Order: | 1 pc |
| Last Online:09 Aug, 2017 |
This Price Include :
GREAT-330iM Milling/Engraving CNC controller operation panel + B-type subpanel with MPG + cables within 5meters
Note:
1)for B-type subpanel, we only install "Emergency Stop" "Run" "Stop" three buttons and left 4 holes, but this price will add MPG on the board and supply the MPG wire as well.
2) for our 330Series CNC Controller ,can match with motor with absolute encoder; if need match with absolute driver and motor, please check with us .

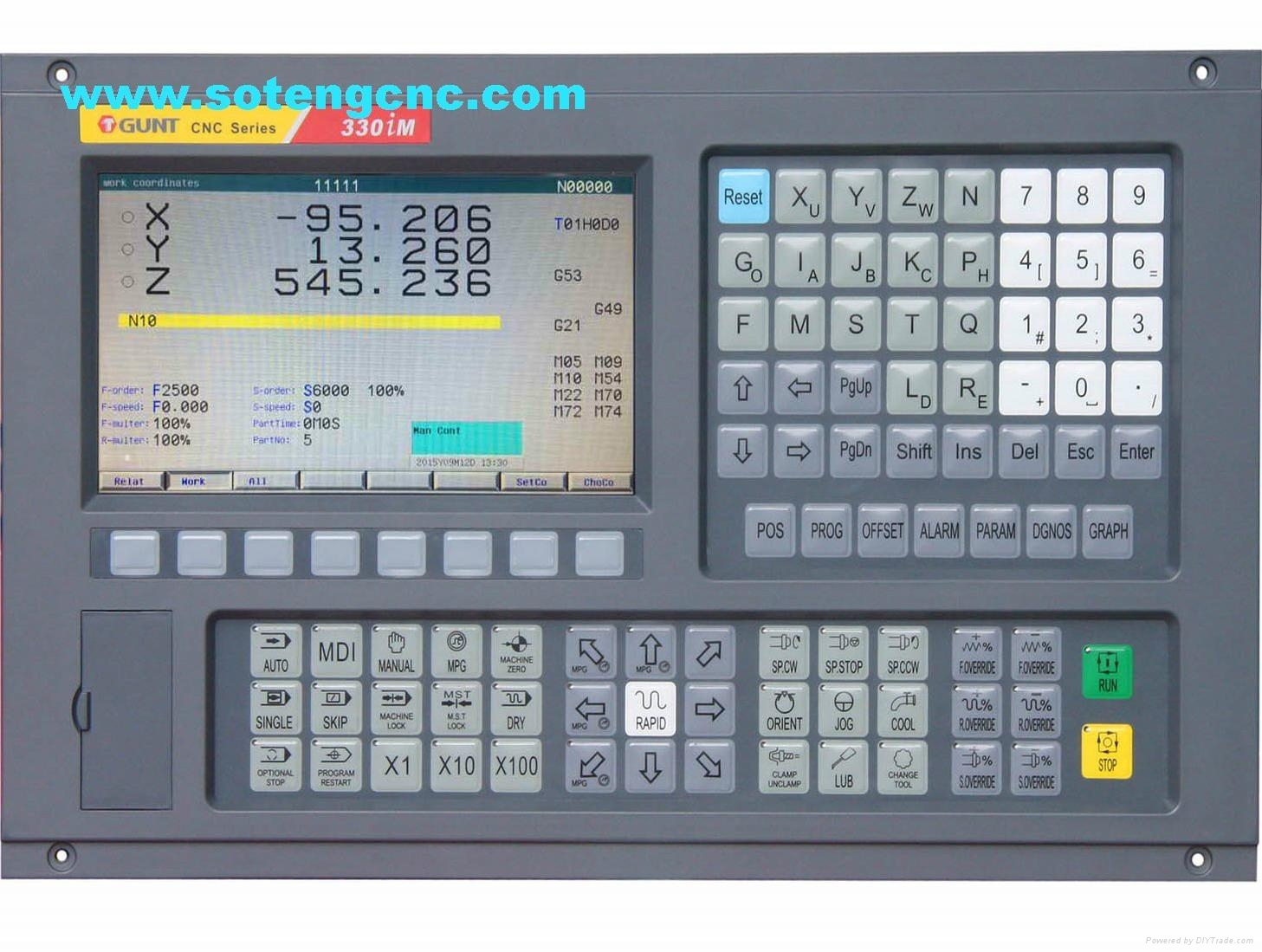

CNC Controller for Milling and Engraving Machine--GREAT-330iM:
>Control axis: 3 axes
>Linkage axis: 2-3 axes
>32 bits 400MHz-600MHz ARM Industrial Processor
>100MB user memory
>Resolution 800x480, 8" TFT colorful LED displayer
>Max rapid traverse: 20m/min
>Max cutting speed: 10m/min
>Program preview function
>USB, RS232 port for DNC function
>2D/3D graphic preview or simulation operation before machining
>Multiple level password protection, such as program, parameter protection or convient equipment management
>Start machining at random block or tool number
>Graphic dialogue function
>Real-time and all-round self-diagnosis function
>Feed per minute, feed per revolution
>Metric system, English system input mode
>Machine return to reference/floating zero
>Linear, arc, helix interpolation, drilling, boring, tapping etc
>Multiple macro canned cycle, macro instructions for direct interpolation and milling of rotary body surface
>Automatic backlash compensation and storage pitch error compensation, Tool length automatic compensation, tool radius compensation, automatic transition of inner and outer point angle
>Set the max speed and up/down speed of each axis independently
>Scaling, coordinate system rotation and mirror function
>Shift between metric/british program unit
>Angle setting of auxiliary axis and displacement programe setting
>Multiple coordinate system setting
>Soft and hard limit function for max stroke
>English/Chinese language selection
>Display current time, single piece time and running time
>Multiple interpolation function and M. S. T function
>Parameter, software fule backup and upgrade function
all our products your can search in google with "sotengcnc"
