Automatic Permanent Magnetic Lifter for Plate Handling

Model:QHAT
Brand:QIANHAO
Origin:Made In China
Category:Transportation / Logistics / Lifting Systems
Label:lifting magnet , magnetic lifter , permanent magnetic
Price: -
Min. Order:1 pc
Inquire Now

Product Description

The new type automatic permanent magnetic lifter designed and manufactured by Qianhao, adopt flat ring rotating magnetic structure, modular design, adapt to plate unevenness. Using with beam which specially manufactured by Qianhao, can realize combination lifting for one or more steel plates of changing sizes.

Model

Rated lifting capacity (kg)

Max. pull-off strength of 0 air gap (kg)

Max. pull-off strength of 1.5 air gap (kg)

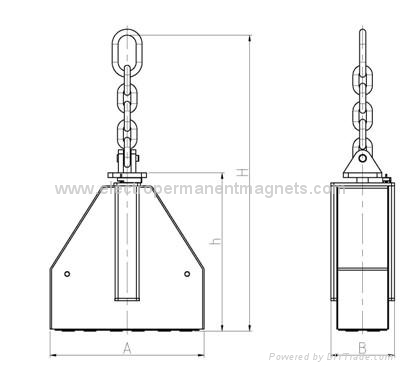

Overall Dimension

Weight (kg)

A

B

h

H

QHAT-1A

1000

3800

1650

636

212

650

1000

150

QHAT-2A

2000

7700

3350

1300

212

700

1200

260

QHAT-2B

2000

7700

3350

636

407

700

1200

260

QHAT-3A

3000

11500

5000

1700

212

856

1300

320

QHAT-5

5000

18500

10500

1466

416

950

1300

520

Breakthrough: AT series can achieve magnetic adjustable function, can minimum lifting one piece of 3mm steel plate.


Product Image

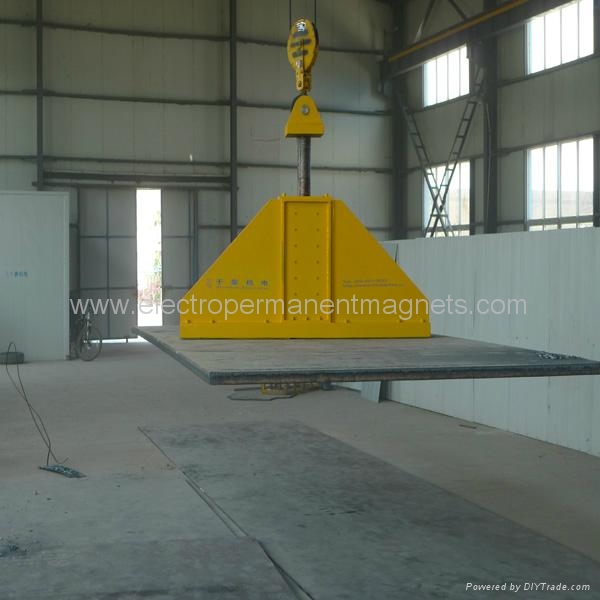

Automatic Permanent Magnetic Lifter for Plate Handling 1
Img 1
Automatic Permanent Magnetic Lifter for Plate Handling 2
Img 2
