19 inch industrial all in one Touch screen PC
Product Description
We are a manufacturer and have our own factory. our headquaters is in Shenzhen city and provide 8.4”,10.4”,12.1”,15”,17”,18.5”,19” and 22” intel Atom D525 PC, fanless industrial pc and I3/I5/I7 industrial computer and LCD monitors,we shipped many goods to oversea.
Company name: Shenzhen SUNPC technology Co. LTD
Ms Catherine, skype: shuaiyy1985
IP65 19" Industrial TOUCH Panel PC with intel® ATOM (Dual-core 1.8G) Processor
Model NO.: IPPC-190D-2R
|
IPPC-190D-2R: 19"XGA Slim Line Panel Mount Industrial Panel PC support intel® Atom D525 Dual-core 1.8Ghz processor, with 2G DDR3 RAM, 2.5" 320G HDD, with resistive touch screen, DC19V power
IO:4*COM(3xRS232,1XRS485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC,1*PCI
MP-MS150NW: Mini-PCIE wireless Lan card with antenna
|
Feature:
1. 19" XGA TFT LCD Panel support 1280 × 1024pixel
2. Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
3. Front 6mm aluminum bezel with IP65 compliant
4. Front hardness glass protect screen ( touch option )
5. 4COM (1xRS485), 1xLPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO,MIC
6. 1xPCI Slot, 1 xMini PCIe slot
7.Back For Power LED and HDD LED Indication
8. Wireless LAN with antenna (option)
9. Panel ( Flush ) mount with clip
10. Wide range DC 8-30V input
11. Standard VESA 75/100mm support stand ,wall mount and swing arm
|
| TFT Characteristics |
| Display Type |
19" LED panel
|
Pixel Number |
1280 * 1024
|
| Pixel Pitch(RGB) |
0.297*0.297 |
Contrast Ratio |
1300: 1
|
| Brightness |
250cd/m2
|
Viewing Angles |
170°(H) , 160°(V)
|
| MTBF |
50,000hrs. |
Response Time |
6 ms |
| OS sytem |
Support DOS,Windows,Netware,Unix,Linux |
|
|
| System Characteristics |
| Processor |
Intel Atom D525 Dual-core 1.8GHz processor with 667 MHz FSB |
Chipset |
Intel Atom D525 +ICH8M |
| Memory |
1 * SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. |
Graphic |
Intel GMA3150 chipset |
| Storage |
Space for 1x 2.5" 320G HDD /16G SSD/32G SSD |
Audio |
Realtek®ALC662,5.1 Channel surround Audio |
| Ethernet |
Two LAN onboard:2x Realtek®RL8111x(Gigabit) 10/100/1000 Ethernet |
Mounting |
Panel/VESA 75x75mm/100x100mm |
| VGA Port |
1 * VGA (DB-15 Connector) |
Expansive Slot |
1*PCI Slot, 1 *Mini PCIe slot
|
| Serial Port |
4 * COM( 3*RS232, 1*RS422/485)
|
Speakers |
2*2W |
| Contruction |
Aluminum front bazel and aluminum chassis |
Watchdog Timer |
255 Levels , 1-255 sec. |
| Available Options |
| Touch Screen |
Resistive,intel USB interface controller |
Wireless LAN/Wifi |
Meet IEEE802.11b/g
standard. |
| DC Power Input |
standard DC19V (DC8-30V option) |
Speakers |
2 * 2W |
| I/O Connector |
| PS/2 |
1 * PS2 for KB/ Mouse |
Lan |
2 *10/100/1000 MLan port(RJ-45) |
| VGA |
DB-15 connector |
USB |
4 * USB 2.0 |
| RS-232 |
4 * COM( 3 * RS232, 1 * RS422/485)
|
Parallel port |
1 * SPP/EPP/ECP port |
| DC Input |
3Pin DC power input termnal block |
Sound |
Mic-in/line-out |
| Mechanical and Environmental |
| Operating temp. |
32°F~125°F ( 0 °C to 50 °C) |
Storage temp. |
-4°F~140°F ( -20 °C to 60 °C)
|
| Storagehumidity |
10% to 90%non-condensing |
Shoc(operating) |
1G/peak (11m sec) |
| Vibration |
17 to 500Hz 1G PTP |
Front panel protection |
IP65/NEMA 4 compliant
|
| Dimension (WxHxD) |
456x 371 x 79mm
|
Weight |
Net: 8.5KG , Volume Gross:11 KG
|
|
Power Supply
|
| Output rating |
48W |
Input Voltage |
8-30V, "external AC adapter" |
|
Certification
|
CE/ FCC/ RoHS |
|
|
Ordering Information
|
IPPC-190D-2R : 19" Slim Line Panel Mount Industrial Panel PC support intel® Atom D525 Dual-core 1.8Ghz processor, with 2G DDR3 RAM, 2.5"320G HDD/16G SSD,with resistive touchscreen,DC19V power
IO:4*COM(3xRS232,1XRS485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC,1*PCI
MP-MS150NW : Mini-PCIE wireless Lan card with antenna
|
|
| Optional: |
| Storage |
16G SSD/32G SSD/64G SSD |
| Wireless LAN |
Wifi |
| Power supply |
DC8-30V |
| Speakers |
2 x 2W |
Product Image

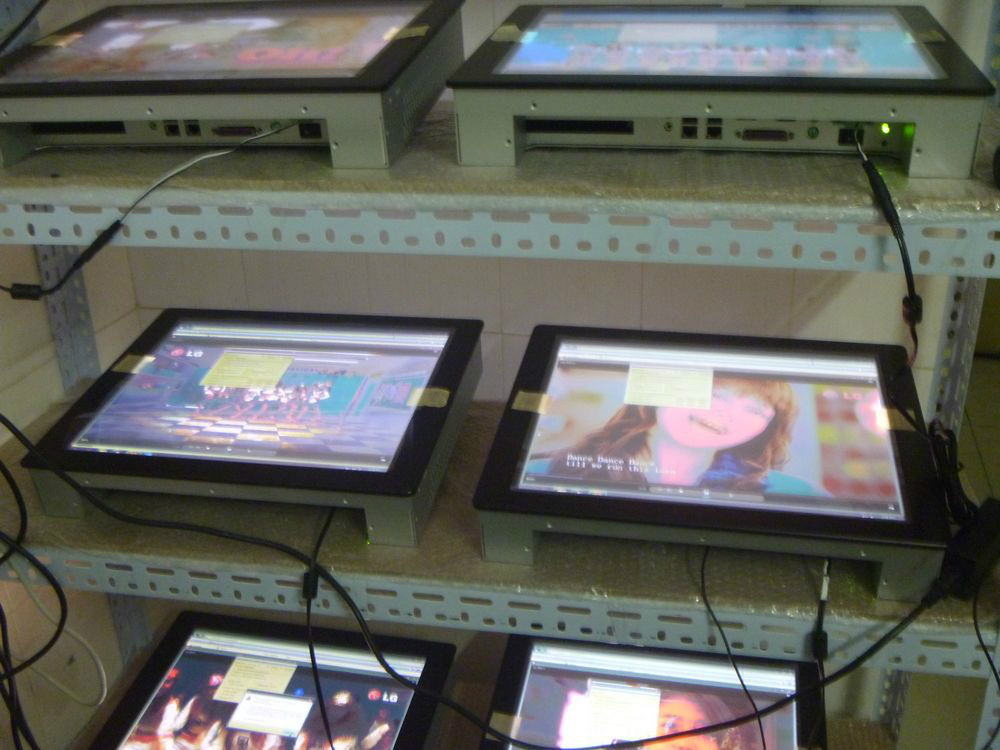

Img 1

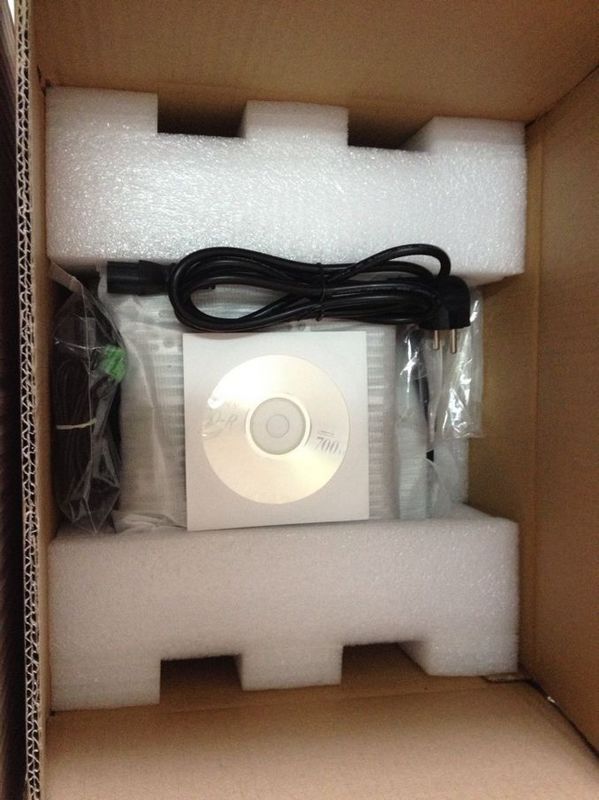

Img 2

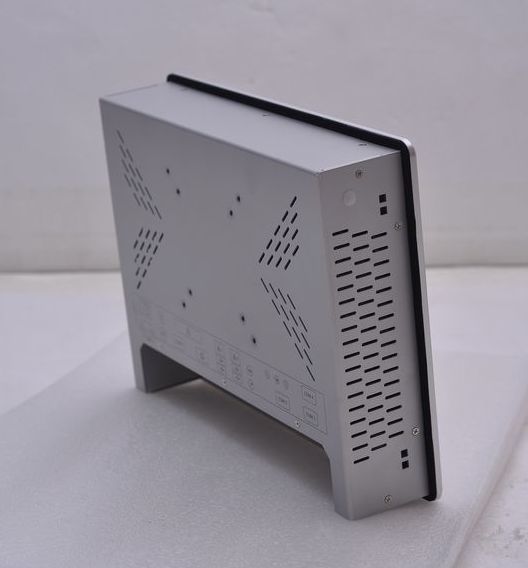

Img 3
Img 4
Img 5
