| Model: | - |
|---|---|
| Brand: | LONGWAY |
| Origin: | - |
| Category: | Industrial Supplies / Food, Beverage & Cereal Machine |
| Label: | 3 GALLON FILLING , BARREL FILLING DEVIC , AUTOMATIC BARREL FIL |
| Price: |
-
|
| Min. Order: | - |
| Last Online:19 Dec, 2023 |
description
(1) This filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.

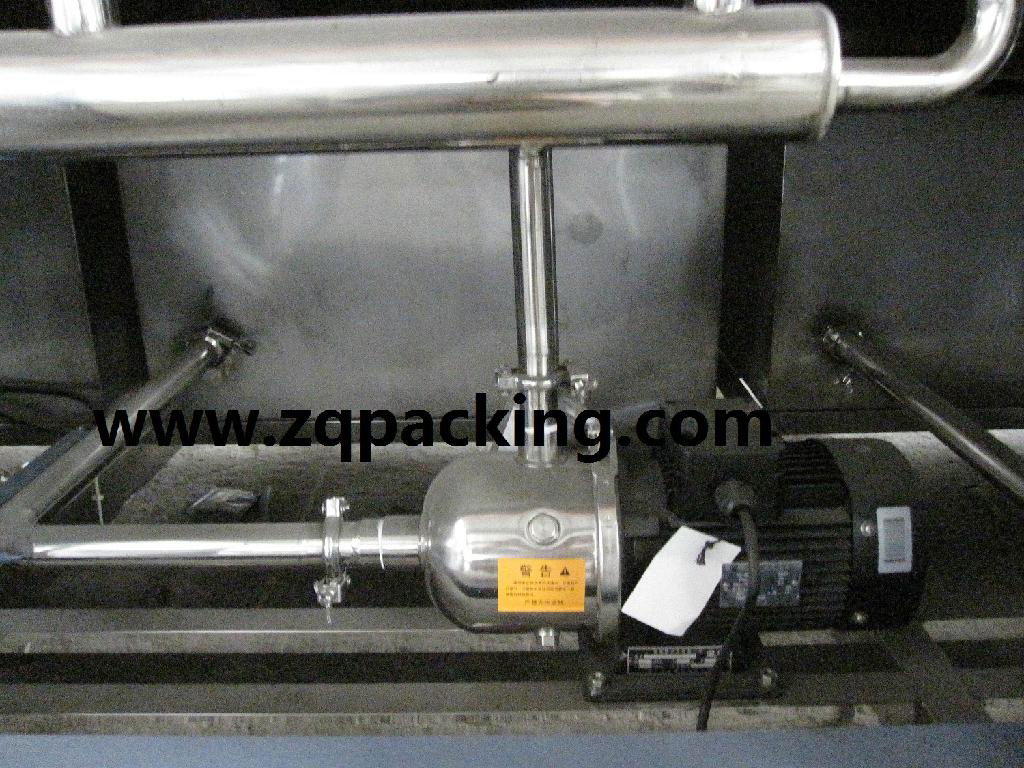

(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
technical parameter
|
Main Technical parameters |
|||||||
|
Model |
QGF-100 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
QGF-2000 |
|
Filling heads |
1 |
2 |
3 |
4 |
8 |
12 |
16 |
|
Volume(L) |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
|
Barrel size(mm) |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
|
Capacity(B/n) |
100-120 |
200-240 |
300-400 |
600 |
900 |
1200 |
2000 |
|
Gas pressure(mpa) |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
Gas consumption (m3/min) |
0.37 |
0.6 |
0.6 |
1.2 |
2.2 |
3 |
4.5 |
|
Motor power(Kw) |
1.75 |
3.22 |
4.8 |
8.5 |
8.5 |
8.5 |
8.5 |
|
Rated voltage(V) |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
|
Outline dimension(mm) |
3790×650 ×1550 |
3550×800 ×1800 2800×1100 ×1800 |
3550×1200 ×1800 3800×1100 ×1800 |
3650×1500 ×1800 3800×1100 ×1800 |
|||
