| Model: | 12V200A-AN |
|---|---|
| Brand: | EVVA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Battery, Storage Battery & Charger |
| Label: | 12V Lithium battery , 12V 200Ah , 12V batteries |
| Price: |
-
|
| Min. Order: | 50 pcs |
| Last Online:23 Dec, 2024 |

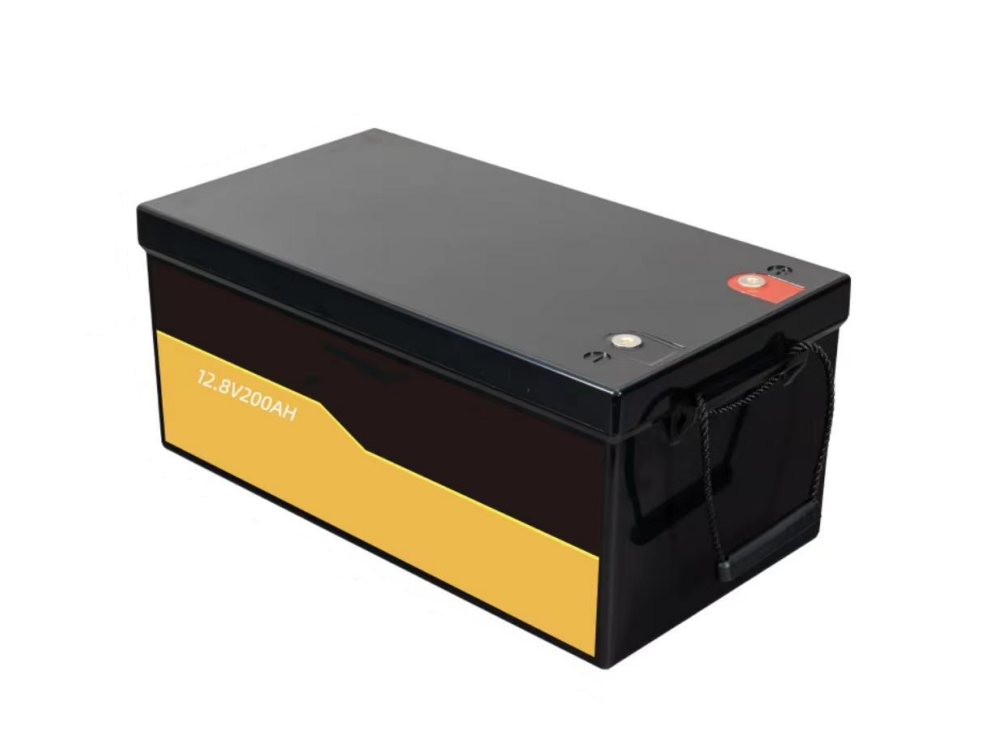

12V Lithium Batteries 12V 200Ah Lithium battery
| Electrical Specifications | |
| Cell Chemistry | LiFePO4 |
| Pack Voltage(Nom/Max.) | 12.8V/14.6V |
| Pack Energy | 2.56kWh(200Ah) |
| Charge Current | Continuous 50A |
| Discharge Current | Continuous 100A |
| Peak Discharge Current(<10s) | 110A |
| Communication | None |
| Cycle Life(@℃) | 4000@80% DoD |
| Mechanical Specifications | |
| Terminal Type(ISO) | M8 |
| Terminal Torque (Nm) | >5N.m |
| Breaking Torque (Nm) | >25N.m |
| Weight | 27kg(59.4lbs) |
| Dimension | L522mm*W240mm*H218mm |
| Installation Orientation | Horizontal |
| Ingress Protection Rating | IP55 |
| Case Flammability Rating | UL94 V-0 |
Our world-class products have earned global recognition, trusted by dealers and OEM boat builders worldwide. But we’re just getting started—continuously striving to create even better solutions!
EVVA is capable of assembling different battery packs by combining these high-end battery cells and self-developed BMS based on our professional rich skills.
OEM orders are available.
