| Model: | H*SP****-*315L |
|---|---|
| Brand: | HuXis |
| Origin: | Made In Hong Kong S.A.R |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | SFP+ SR LR ER ZR , 10Gbps SFP+ , 10Gbps CWDM |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:24 Jul, 2015 |

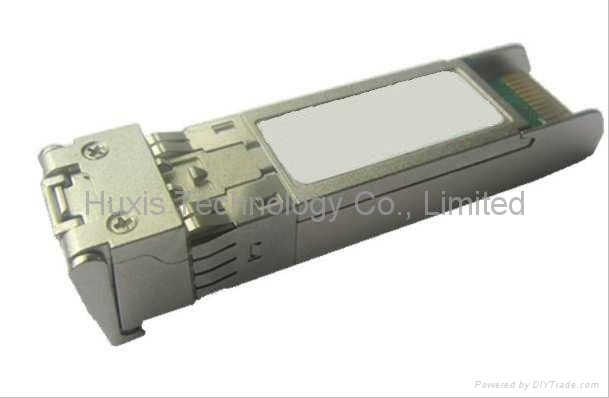

Features
●Transceiver unit with independent:
850nm 1310nm 1550nm /VSCEL,FP,DFB,EML CWDM Laser diode transmitter
InGaAs PIN/APD photodiode receiver
●Meet SFP MSA with duplex LC receptacle
●10Gbps serial optical interface
●Up to 300m on 62.5/125μm MMF, 80 km on 9/125μm SMF
●Meet SFF-8472 with Digital diagnostic monitoring
●Hot-pl able
●High transmission margin
●+3.3V Single power supply
●Below 1.5W power consumption
●Very low EMI and excellent ESD protection
●SFP mechanical interface
●Compliant ROHS and lead free
●IEEE802.3-2005 compliant
●Telcordia GR-468-CORE compliant
●FCC 47 CFR Part 15,Class B compliant
●FDA 21 CFR 1040.10 and 1040.11,class1 compliant
●Wide data-rate range
| Part.Number | Wavelength (nm) | Data Rate | Distance | Optical Power (dBm) | Source | Sensitivity (dBm) | Receiver | Voltage(V) | Temp(℃) | Connector type |
| HMSP2V0-1315L | 850 | 10Gbps | 300m | -6~-1 | VCSEL | <-11 | PIN-TIA | 3.3V | 0~70 | LC/PC |
| HDSP3F0-2315L | 1310 | 10Gbps | 2km | -6~-1 | FP | <-14.4 | PIN-TIA | 3.3V | 0~70 | LC/PC |
| HDSP3D0-1315L | 1310 | 10Gbps | 10Km | -4~-1 | DFB | <-14.4 | PIN-TIA | 3.3V | 0~70 | LC/PC |
| HDSP5L0-2315L | 1550 | 10Gbps | 40Km | -3~+2 | EML | <-16 | PIN-TIA | 3.3V | 0~70 | LC/PC |
| HDSP5L0-4315L | 1550 | 10Gbps | 80Km | 0~+5 | EML | <-23 | APD-TIA | 3.3V | 0~70 | LC/PC |
| HDSPXXC0-2315L | 1270~1610 | 10Gbps | 40Km | 0~+5 | CWDM | <-16 | PIN-TIA | 3.3V | 0~70 | LC/PC |
| HDSPXXE0-4315L | 1270~1610 | 10Gbps | 80Km | 0~+5 | CWDM | <-23 | APD-TIA | 3.3V | 0~70 | LC/PC |
Please contact us for more information and data sheet requested.
