| Model: | SRT-A |
|---|---|
| Brand: | SRI |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | triaxial testing , triaxial apparatus , triaxial test set |
| Price: |
US $4000
/ Set
|
| Min. Order: | 1 Set |
| Last Online:13 Aug, 2022 |
Model: SRT-A
Description

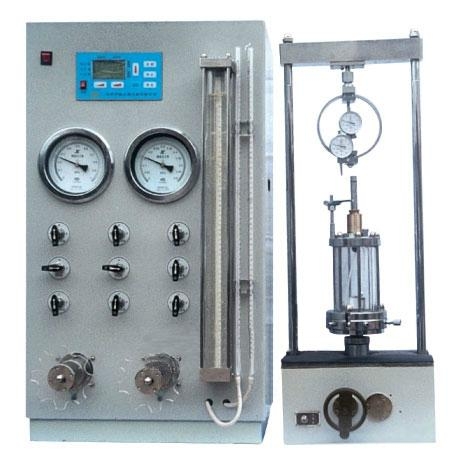

The strain-controlled triaxial apparatus is mainly used in normal soil lab and in college teaching test. It is used to do triaxial shearing test on soil specimen (dia. 39.1mm ) under maximum confining pressure is 1.0Mpa. It can do UU, CU, and CD test.
Specifications( based on 10KN)
Specimen size: Φ39.1mm x 80mm
Loading: Max loading10KN
Strain-controlled rate: 0.0001-4.8mm/min. stepless-regulation
Working table travel: 50mm maximum
Confining pressure (σ3): 0-1MPa, digital control liquid crystal display
Back pressure(σb): 0-0.6MPa, digital control
Pore pressure (u): 0-1MPa
Volume change: 0-25ml, resolution: 0.1ml
Axial displacement: 0-30mm (micrometer)
Power supply: 220V±10% 50Hz
Size: Main machine: 350 x 300 x 1100mm (L * W * H)
Controller: 500 x 500 x 925mm (L x W x H)
Weight: 170Kg
