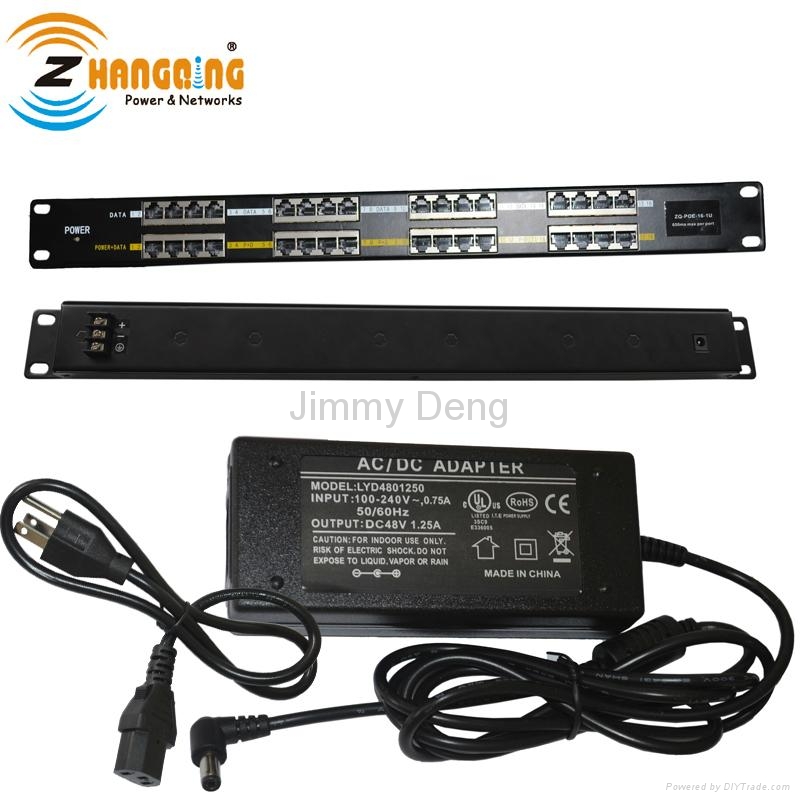

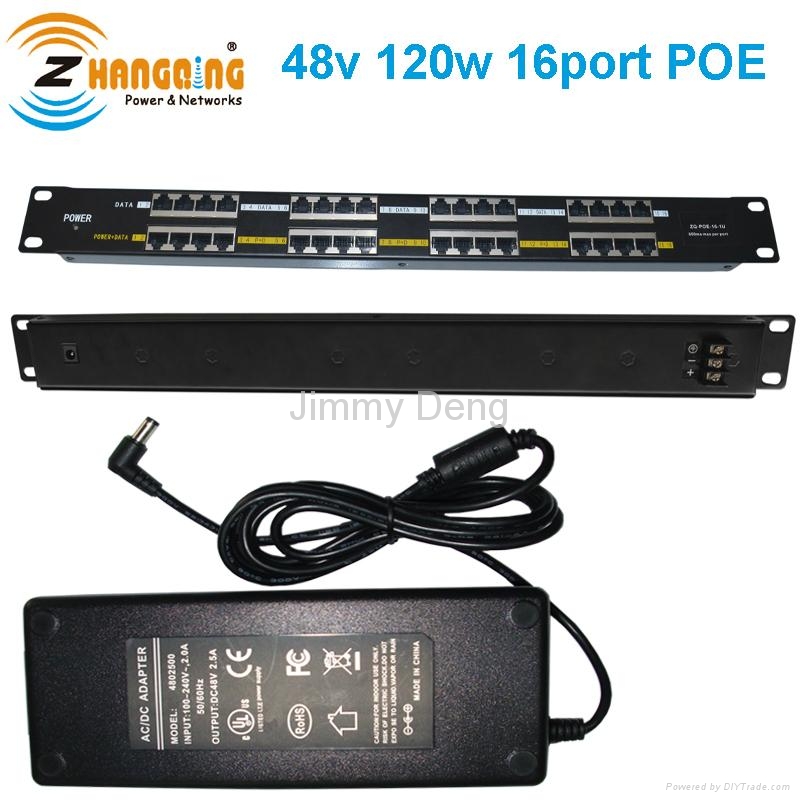

16port passive power over ethernet POE injector panel

Passive and 802.3af POE uses pins 4/5 for plus power, and 7/8 for ground.

Many popular devices like Ubiquiti use this method to centralize the power source - you can go for 328 ft with a 24v supply to a typical Access Point.

Connect the power supply you need (24v for Ubiquiti, 48v for 802.3at or 802.3af) and reduce the mess of cables. Reboot all 16 devices from one central location.



Use/ Application:

·IP Security Cameras

·Network routers

·A mini network switch installed in distant rooms, to support a small cluster of ports from one uplink cable. (These ports on the mini-switch do not themselves provide PoE.) (In most modern VoIP phones a two-port switch is embedded to which a local workstation can be installed using a different VLAN from the voice-VLAN used by the phone itself)

·Network webcams

·Network Intercom / Paging / Public address systems and hallway speaker amplifiers

·VoIP phones

·Wall clocks in rooms and hallways, with time set using Network Time Protocol

·Wireless access points

·Outdoor roof mounted radios with integrated antennas, 802.11 or 802.16 based wireless CPEs (customer premises equipment) used by wireless ISPs.

·Industrial devices (sensors, controllers, meters etc.)

·Access control and Help-points (intercoms, entry cards, keyless entry, etc.)

·Lighting controllers

·Remote Point of Sale (POS) kiosks

·Physical Security devices and controllers

The poe injector does not include the power supply.

The power supply is sold seperately.
