2088 Flush diaphragm pressure transmitter with easy installation

Model:AT3051DP
Brand:AUTO
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Pressure Gauge
Label:pressure transmitter , transmitter , flush transmitter
Price: US $52 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

     2088 easy installation Industrial Pressure Transmitter







Product Description



       SPseries pressure transmitteris the introductionof foreign technologyandproductsproducedusing  imported components,  can be used toprocess fluid  (liquid, gas)  measured continuouslychanges.Will be convertedinto a4-20mAstandard currentmeasured pressuresignal output,andcombinedwith othermonitoring and controlunits,constituteautomatic control system.Widely used in petroleum, chemical,metallurgy, electricity, medicine, beer,water treatmentand other industriesprocessmonitoring and control.



Application:machine tools ,process control,environmental technology,pneumatics and others





Technical Parameter:





Accuracy

0.2%FS,0.5%FS

Arrange

0-20Mpa

Stability

Better than 0.25%FS annually

Installation location influence

No impact

Temperature influence(-50~50C)

Less ±0.15%/10C

Working voltage

15V~30V DC

Ambient temperature

-20~85C

Medium temperature

-40~120C

Storage temperature

-40~110C

Compensation temperature

-15~50C

Wetted diaphragm

SS316L, ceramic

Process connection element

Stainless steel

Sealing element

fluororubber

Shell/housing

     Plastic,molded cast aluminium,

     aluminium alloy

Protection

IP65









Order sheet:





Name

Model  code

Explanation

sp



Pressure Transmitter

Process Connection

Material

1

Stainless Steel

Process Connection

Structure

R

external thread G1/2″

M

external thread M20×1.5

Y

Customize

Sealing Material

IF

fluoro rubber(standard)

IH

fluoro rubber applied to Sensors(Over 10MPa)

Electronic

Components of

 Transmitters

2

Analog signal 4-20mA (two wire)

3

customize

Shell material

 and structure

A

Aluminum shell PG16 cable sealingIP65

B

Stainless steel shell cylinder structure



Sensor Type

0

Diffused Silicon Type

1

Diffusion silicon anti-corrosion type

Explosion-proof

Requirements

D

No Explosion-proof Required

E

Explosion-proof  type

Accuracy

2

0.2%

5

0.5%





Other product:



Contact me:








Payment Terms:T/T,LC,Paypal,Western Union

Product Image

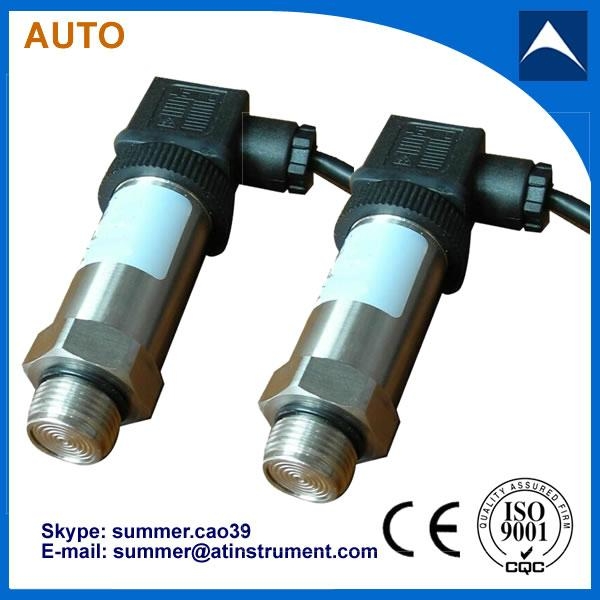

2088 Flush diaphragm pressure transmitter with easy installation 1
Img 1
2088 Flush diaphragm pressure transmitter with easy installation 2
Img 2
2088 Flush diaphragm pressure transmitter with easy installation 3
Img 3
2088 Flush diaphragm pressure transmitter with easy installation 4
Img 4
2088 Flush diaphragm pressure transmitter with easy installation 5
Img 5
