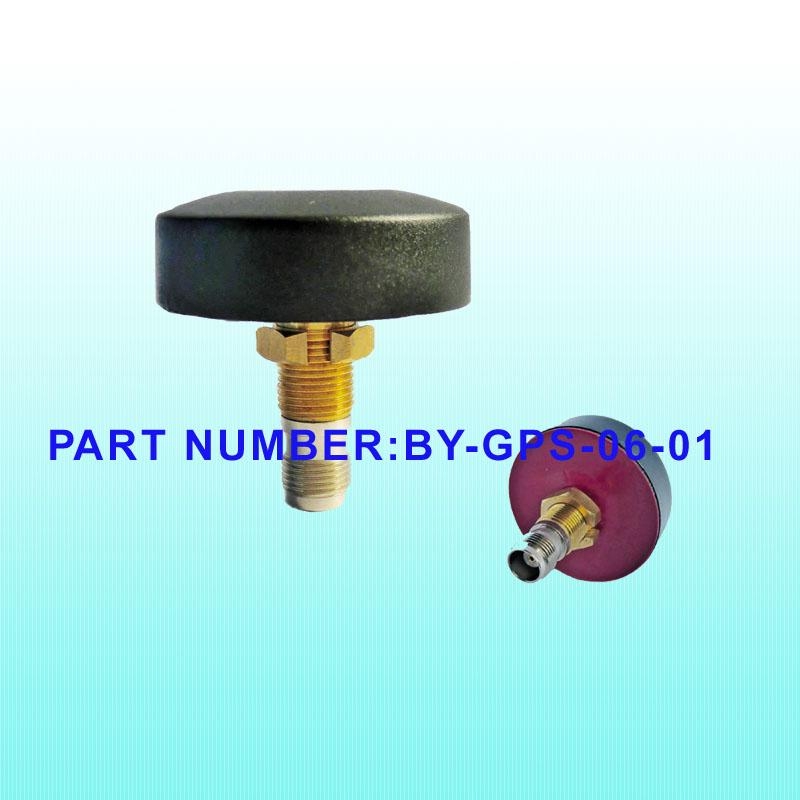

GPS Active Antenna with screw
Product Description
Model : BY-GPS-06-01
- (i)Dielectric Antenna
- Center Frequency(MHz):1575.42±3
- VSWR:1.5:1
- Bandwidth(MHz):±5
- Impedance(Ω):50
- Peak Gain >3dBi Based on 7cm×7cm ground plane
- Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)
- Polarization:RHCP
- (ii)LNA/Filter
- LNA Gain (Without cable) :28 dBi Typical
- Noise Figure(dB):1.5
- Filter Out Band Attenuation (f0=1575.42 MHz)
- 7dB Min f0+/-20MHz;
- 20dB Min f0+/-50MHz;
- 30dB Min f0+/-100MHz
- VSWR <2.0
- DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
- DC Current (mA):11 Max
- (iii)Mechanical
- Weight(gram)<110
- Size(mm):Φ46 ×14.5
- Cable Length(m):without
- Connector:TNC female
- Mounting:Screw mount
- Housing:Black
- (iv)Environmental
- Working Temp:-40℃~+85℃
- Storage Temp:-45℃~+100℃
- Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
- Humidity:Humidity95%~100%RH
- Weatherproof:100%Waterproof
-------------------------------------------------------------------------------------------------
