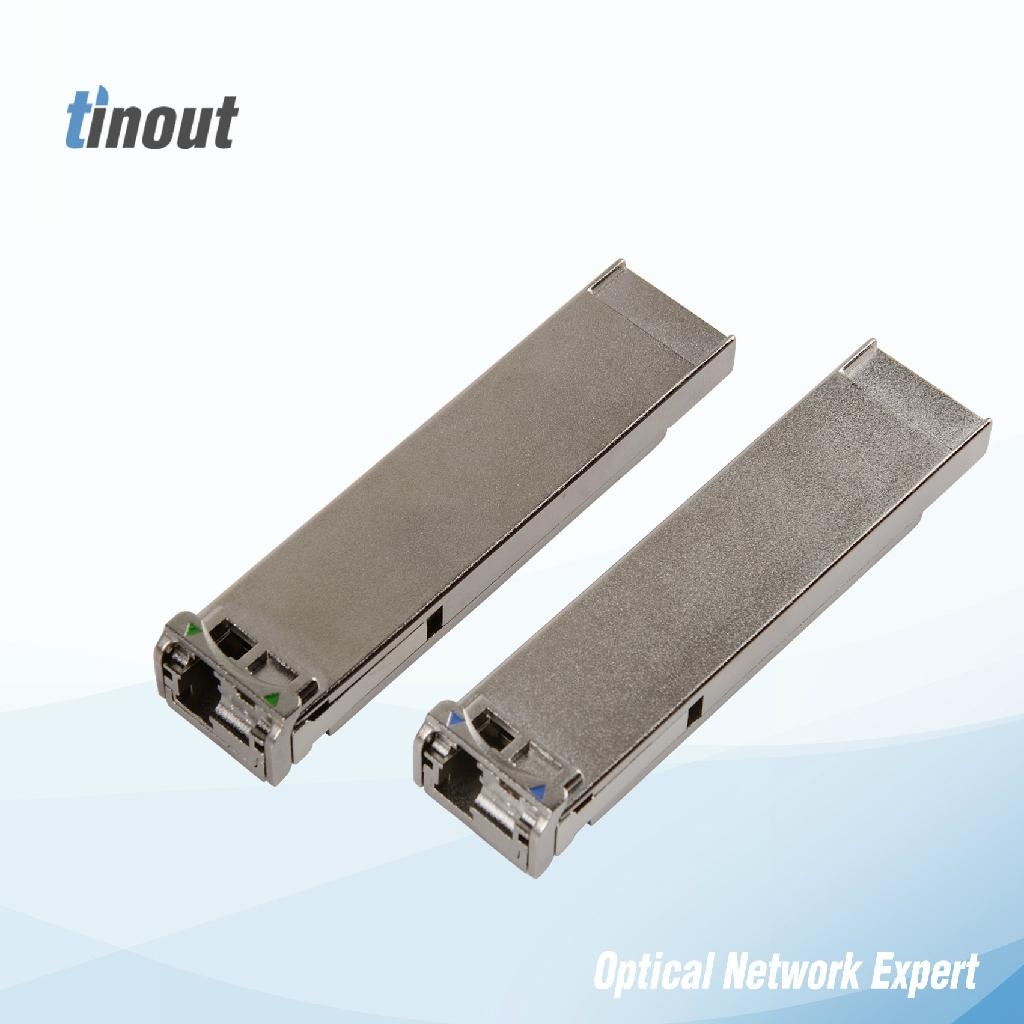

Datacom 10 Gb/s 10km WDM XFP

Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-M-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. If SONET/SDH compliance is required, please see Finisar Part Number FTRX-1411M3.

Product Features


• Up to 10.5 Gb/s bi-directional data links
• Hot pl able XFP footprint
• Maximum link length of 10 km
• Uncooled 1310 nm DFB laser
• Duplex LC connector
• Power dissipation <2.5 W
• Built-in digital diagnostic functions
• Temp range: -5°C to 70°C
• 1330TX/1270RX and 1270TX/1330RX
• Distance Up to 10, 20, 40 km
• XFI Loopback Mode
• No reference Clock required
• RoHS Compliant

Applications

• 10GBASE-LR/LW 10 Gb/s Ethernet
• 1200-SM-LL-L 10 Gb/s Fibre Channel
• 10GBASE-BX at 10.3125 Gb/s
• 10GBASE-BX at 9.953 Gb/s
