| Model: | SF-120HLR |
|---|---|
| Brand: | SF |
| Origin: | - |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | cutting belt machine , woven label machine , trademark machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:13 Jul, 2017 |
Video and detailed data, please call 0512-57758600 or QQ: 26065, 38898

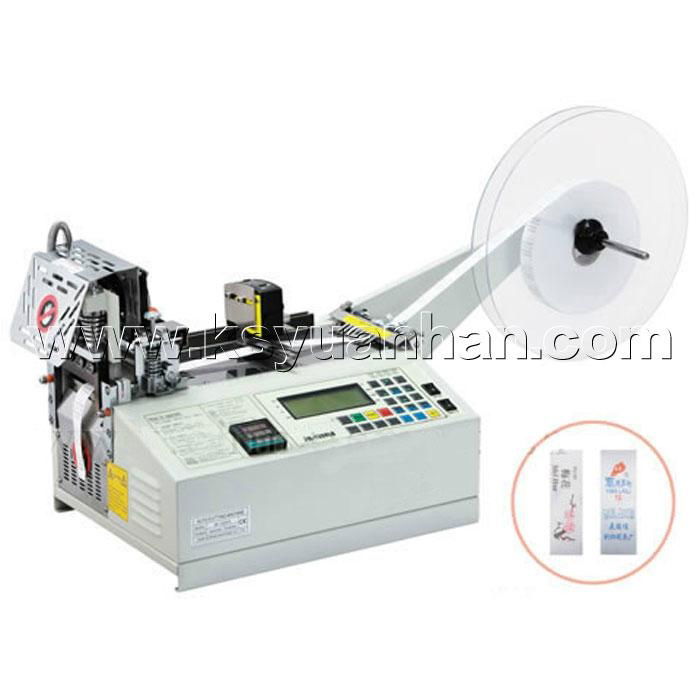

SF - 120 HLR (hot and cold knife right Angle infrared) - cut trademark woven label wash the wash label, etc
Main data
| Model No. |
Cutting length mm |
Max cutting width mm |
Cut-off velocity p/min | cutting tool temperature ° c. | Power | Weight | Package size(L.W.H)cm |
| SF - 120 HLR | 15-99999 | 95 | 120 | 180 | 0.35 | 21.3/26 | 410*525*430 |
Functional characteristic
High speed: can cut 100 ~ 120 pieces per minute. (50 mm length, for example).
High precision: photoelectric sensor can accurately capture the trademark to cut off the line, to accurately control the effective length of cut off at a time.
Cut surface leveling: hot knife can cut surface of colored ribbons, light textile belt for high temperature heat sealing, and sealing smooth without burrs, the blade is made from imported high quality steel, long service life.
Automatic operation: just set you need to cut off the length and quantity, the rest of the work is done automatically.
Automatically suspended: a quantity of materials used up, will automatically stop working.
Memory function: in front of the switch off, automatic storage set value is the number of cutting length and cutting and cutting speed
Can cut material
Trademark, textile zone, Velcro, plastic hose, shoelaces, plastic zipper, computer line
