we are professional multiple machine screw jacks mechanically linked system manufacturers and suppliers in China.

Worm Gear Screw Jack Lift systems are r edly designed and produced in standard models with load handling capacities from 1/4 ton to 100 tons. They may be used individually or in multiple arrangements. There are no "standard" travel lengths and all Worm Gear Screw Jack Lift systems are built to specification. Multiple Worm Gear Screw Jack Lift systems arrangements include In-Line Configuration Worm Gear Screw Jack Lift systems, H Configuration Worm Gear Screw Jack Lift systems, U Configuration Worm Gear Screw Jack Lift systems, T Configuration Worm Gear Screw Jack Lift systems.

Worm Gear Screw Jack Lift systems parts include worm gear screw jacks, right angle miter gearbox, jaw type and flex type couplings, linking bars, electric motor / geared motor, When long distance between jack and jack, extra additional pillow block bearings. For lightweight and short stroke adjustment, manual operation Worm Gear Screw Jack Lift systems is avaiable. Compared with pneumatic cylinder systems, air cylinder lift systems or hydraulic table lift system. Multiple Worm Gear Screw Jack Lift systems arrangements have heavy duty-load capacity up to several hundreds tons, self locking-no need brake mechanism or others locking systems, precision positioning-easy to control according to your own design, synchronizing lifting-multi-units uniform travel speed, easy installation, maintenance free and long service life.

Two Worm Gear Screw Jack Lift Systems Efficiency 95%
Inline Configuration Screw jack lift systems with two worm gear screw jacks, two flexible couplings, one linking bar and one motor. T Configuration Screw jack lift systems with two worm gear screw jacks, five flexible couplings, two linking bars, one right angle bevel gear box three-way and one motor.
Three Worm Gear Screw Jack Lift Systems Efficiency 90%

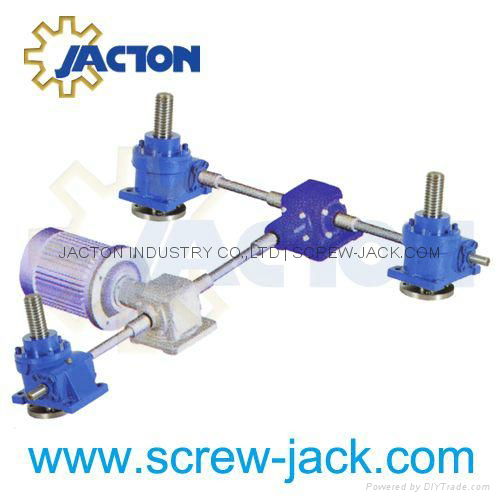

Inline Configuration Screw jack lift systems with three worm gear screw jacks, five flexible couplings, two linking bar and one motor. T Configuration Screw jack lift systems with three worm gear screw jacks, nine flexible couplings, four linking bars, two right angle bevel gear boxes three-way and one motor.
Four Worm Gear Screw Jack Lift Systems Efficiency 85%

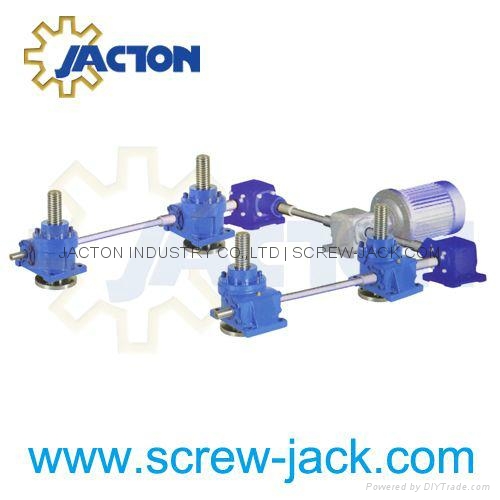

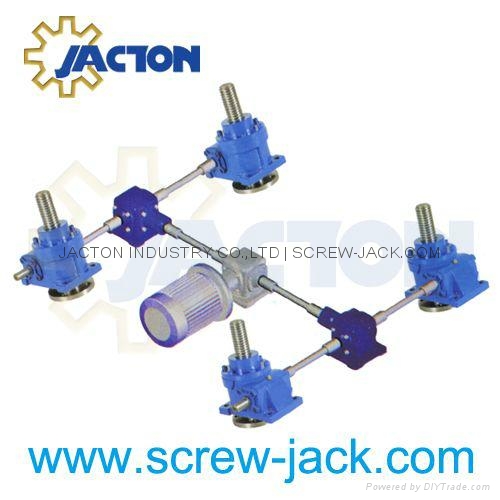

H Configuration Screw jack lift systems with four worm gear screw jacks, three right angle bevel gear boxes three-way, 13 flexible couplings, six linking bars and one motor. U Configuration Screw jack lift systems with four worm gear screw jacks, three right angle bevel gear boxes three-way, 11 flexible couplings, four linking bars and one motor.
Six Worm Gear Screw Jack Lift Systems Efficiency 80%
H Configuration Six Screw jack lift systems with six worm gear screw jacks, three right angle bevel gear boxes three-way, 17 flexible couplings, eight linking bars and one motor. 2H Configuration Six Screw jack lift systems with six worm gear screw jacks, three right angle bevel gear boxes four-way, 17 flexible couplings, eight linking bars and one motor. U Configuration Six Screw jack lift systems with six worm gear screw jacks, three right angle bevel gear boxes three-way, 15 flexible couplings, six linking bars and one motor.
Eight Worm Gear Screw Jack Lift Systems Efficiency 80%
H Configuration Six Screw jack lift systems with eight worm gear screw jacks, three right angle bevel gear boxes three-way, 21 flexible couplings, 10 linking bars and one motor. 2H Configuration Six Screw jack lift systems with eight worm gear screw jacks, seven right angle bevel gear boxes three-way, 29 flexible couplings, 14 linking bars and one motor.

Worm Gear Screw Jack Lift Systems Parts 1 – Worm Gear Screw Jacks
Worm Gear Screw Jack Lift Systems Parts 2 – Right Angle Bevel Gear Boxes
Worm Gear Screw Jack Lift Systems Parts 3 – Jaw Type And Flex Type Couplings
Worm Gear Screw Jack Lift Systems Parts 4 – Linking Bars
Worm Gear Screw Jack Lift Systems Parts 5 – Pillow Block Bearings
Worm Gear Screw Jack Lift Systems Parts 6 – Electric Motors /  Geared Motors
Worm Gear Screw Jack Lift Systems Parts 7 – Geared Motors

Installation Of Worm Gear Screw Jack Lift Systems:
Direction of rotation: Before starting installation work, the direction of rotation of all worm gear screw jacks, right angle bevel gear boxes and the drive motor must be checked with regard to the feed direction of each individual worm gear screw jack.
Alignment errors: All components must be carefully aligned during installation. Alignment errors and stresses increase power consumption and lead to overheating and premature wear. Before a drive unit is attached, each worm gear screw jack should be turned through its entire length by hand without load. Variations in the amount of force required and/or axial marks on the outside diameter of the screw indicate alignment errors between the worm gear screw jack and its additional guides. In this case, the relevant mounting bolts must be loosened and the worm gear screw jack turned through by hand again. If the amount of force required is now constant throughout, the appropriate components must be aligned. If not, the alignment error must be localized by loosening additional mounting bolts.
Test run: The direction of rotation of the complete system and correct operation of the limit switches must be checked again before attaching the drive motor. In the case of translating screw jack, check that the screw is lubricated with grease from the interior of the gear box and re-lubricate if necessary. In the case of travelling nut rotating screw jack, the jack screw should be coated with suitable grease to provide lubrication for lifting operation. The first test runs can then be carried out without load. A maximum operating time of 30 % can not be exceeded at trial runs under weight for worm gear screw jacks with trapezoidal screws.
Operation: The loads, speeds and operating conditions specified for the worm gear screw jacks and transmission components must not be exceeded even briefly.

Application in steel, pipe, tube, plate, roll forming roller adjustment, feeder straightener rolls adjustment, adjusting synchronous coil feed lines rolls, precision roller leveler, coil sheet slitter line, paint coating line, cut to length line, tension levelling line, continuous galvanizing line, beverage production line, foam concrete cutting machine, sanding machine, heavy vehicles mobile lifting platform, bottle monitoring system height adjustment, conveyor adjustment, plate saw angle adjustment, spray infeed conveyor lift system, theatre stage lifting platform, solar tracker, satellite dish antenna azimuth, raising sluice gate, screw scissor lift table, synchronized lifting system, food processing lifting system, extrusion machine, cnc steel leveling machine, blow molding machine, curing oven lifts, bolted tank, steel shuttering concrete beams adjustment, vintage industrial crank desk, solar panel tracking system, railway maintenance lifting jack, damper adjustment, continuous casting, cnc cut to length machine, robotics arm raising, palletizer, extrusion machine, motorized self-raising tower system, angle tilt adjustments with double clevis, aircraft docking system, open and close flood gates, metallurgy industry, mining industry, chemical industry, construction industry and irrigation industry.
