LC-120AL-1 Automatic Screen Printing Line

Model:LC-120AL
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:UV screen printer , auto screen printer , UV screen printing
Price: US $23000 / unit
Min. Order:1 unit
Inquire Now

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Last Online:18 Nov, 2024

Product Description

https://www.youtube.com/watch?v=JWetR3DYk2E

LC-120AL-1 it is a full mechanical conveyer, With the touching control panel operation, easy to operate the machine. Fast adjustment, easy operation. Fast printing, speed: 4000pcs/hr

The following is the machine main parts

1. MAIN MOTOR: SITI(Italy)
2. PLC:  Omron(Japan)
3. SENSOR: Optex(Japan)
4. TOUCH SCREEN: Proface(Japan)
5. Switch: Schneider(France)
6. (CONTACTOR):(Schneider)(France)
7.(RELAY): (Idec)(Japan)
8. (INVERTER): Omron(Japan)
9. (UV CURING)(Primarc)Britain
10. (Cylinder):Festo(Germany)

Product Information:

1.The machine is specialized design for printing the round or oval bottles, with easy operation and stable.
2. Feeding machine can load product to the screen printing machine automatically..fully automatic feeding, flame treatment, UV screen printing and UV curing.
3. It is a mechanical conveyer ,With touching control panel operation , easy to operate the machine. Fast adjustment, easy operation. Fast printing,speed:4000pc/hr.
4. Fully automatic,It will alarm when the machine without product loading and no printing without product. it can save energy.
5. All components and control system are from Germany and Japan, guarantee the quality of the print.
6. It is suitable for print round/oval product printing such as the cosmetic bottles, drink bottles, cans ect
Specification:

Subject surface

Oval

Round

Max speed

4000pcs/hr

3600pcs/hr

Max print length

120mm

270mm

Max print wide

250mm

250mm

The size of print

semimeter:Φ25-Φ260mm

diameter:Φ25-100mm

Length :60-270mm

Length :60-270mm

The power of UV lamp

4Kw/unit

UVair draft power

0.2KW

reduction gearbox Conveyer proportion

1:7.5

Single motor power

0.75KW

The power ofbottle liftervacuum motor

0.5KW

Vacuum supply

500 mmAq

Flame treatment fuel

LPG

air supply

6Bar

Air consumption

400Liter/Min

Power supply

AC380V  3Phase  50Hz

Package dimensions:  267*146*216CM
                                    219*80*172CM

       Package weight:   1470KG





Plastic Water Bottle Screen Printing Machine
Cylindrical Screen Printing Machine Bottle Stand
Silk Screen Bottle Printing Machine
Glass Bottle Screen Printing Machine
Screen Printing Machine Shampoo Bottles Uv Dryer
Screen Printing Bottles Machine
Automatic Bottle Screen Printing Machine
Milk Tea Cup Screen Printing Machine
Bottle Screen Printing Machine
Automatic Bottle Screen Printing Machine Trade
Bottle Silk Screen Printing Machine Cylindrical Screen Printing Machine
Automatic Servo Cylindrical Silk Screen Printing Machine For Oval Bottle
Servo Curved Silk Screen Printing Machine For Special Shaped Bottle
Paper Cup Printing Machine
Auto Feeding Round Cup Tube Silk Screen Printing Machine
Automatic Round Coffee Silk Screen Printing Machine
Auto Discharge Serigrafa Screen Printing Machine
Full Automatic Plastic Tube Pet Bottle Cylindrical Screen Silk Printing Machine
Multi Color Screen Printing Machine
High Precision Screen Printing Machine
Fully- Auto Multi Colors Rotary Cylindrical Silk Screen Printing Machine
High Speed Bottle Screen Printing Machine
3 Colors Screen Printing Machine
Automatic Cylindrical Pen Silk Screen Printing Machine
Cylindrical Screen Printing Machine
Ballpoint Pen Screen Printing Machine
Full Automatic Pensleeve Cylindrical Silk Screen Printing Machine
Water Color Pen Marker Screen Printing Machine
Color Pensleeve Silk Screen Printing Machine
Piston Printing Machine
Automatic Screen Printing Machine
Screen Printing Machine Automatic Blanking Automatic Cosmetic Bottles Uv Screen Printing Machine
3 Colors Automatic Cylindrical Screen Printing Machine
High Speed Cup Printing Machine
Custom Curved Screen Printing Machine
Automatic Plastic Bottle Screen Printing Machine
Automatic Cylindrical Screen Printing Machine Automatic Glass Bottle Screen Printing Machine Automatic Glass Screen Printing
Automatic Servo Screen Printing Machine For Cup Automatic Plastic Cup Screen Printing Machine Automatic Screen Printing Plastic
Plastic Cup Printing Machine
Cup Printing
Cup Printing Machine

Product Image

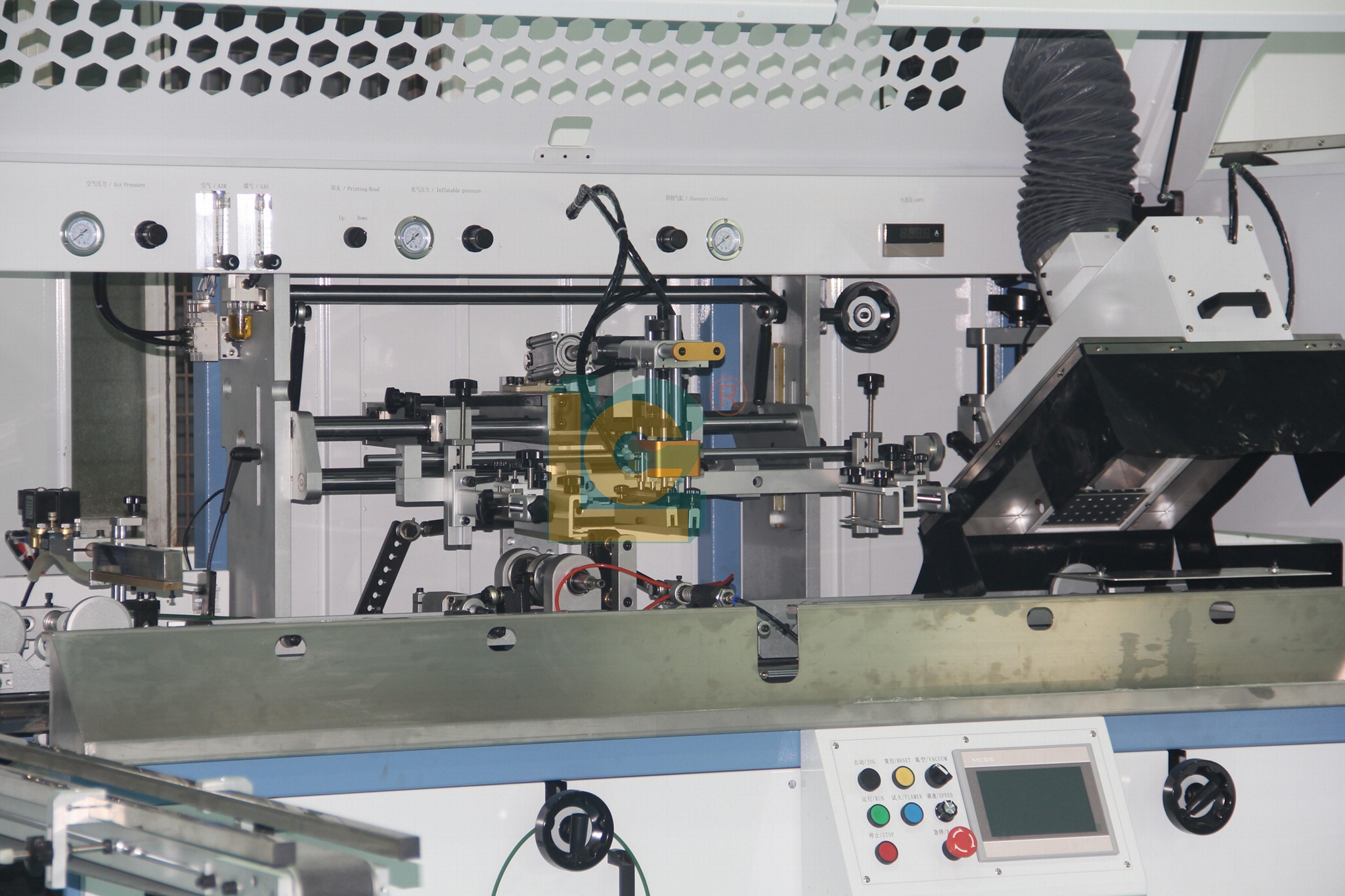

LC-120AL-1 Automatic Screen Printing Line 1
Img 1

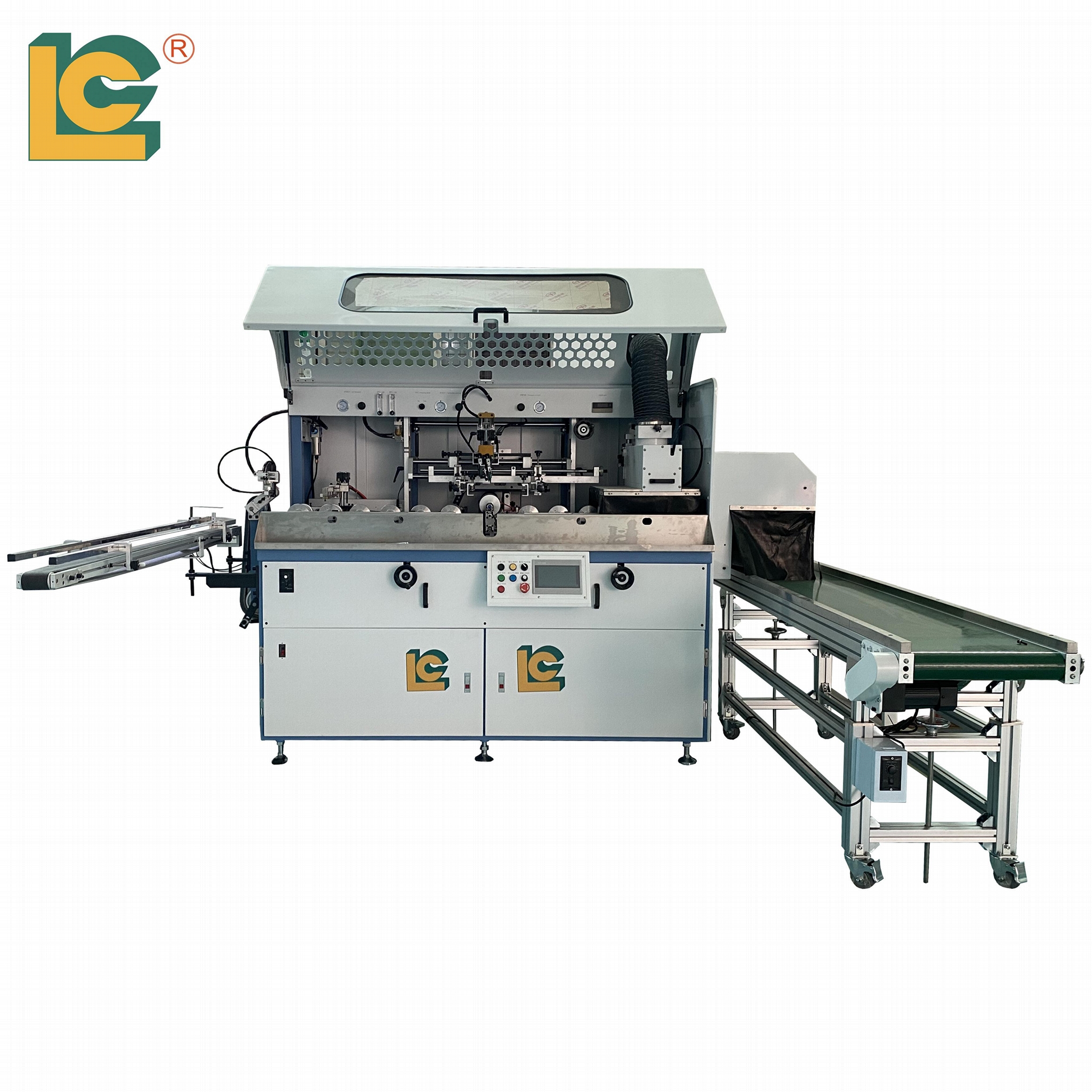

LC-120AL-1 Automatic Screen Printing Line 2
Img 2

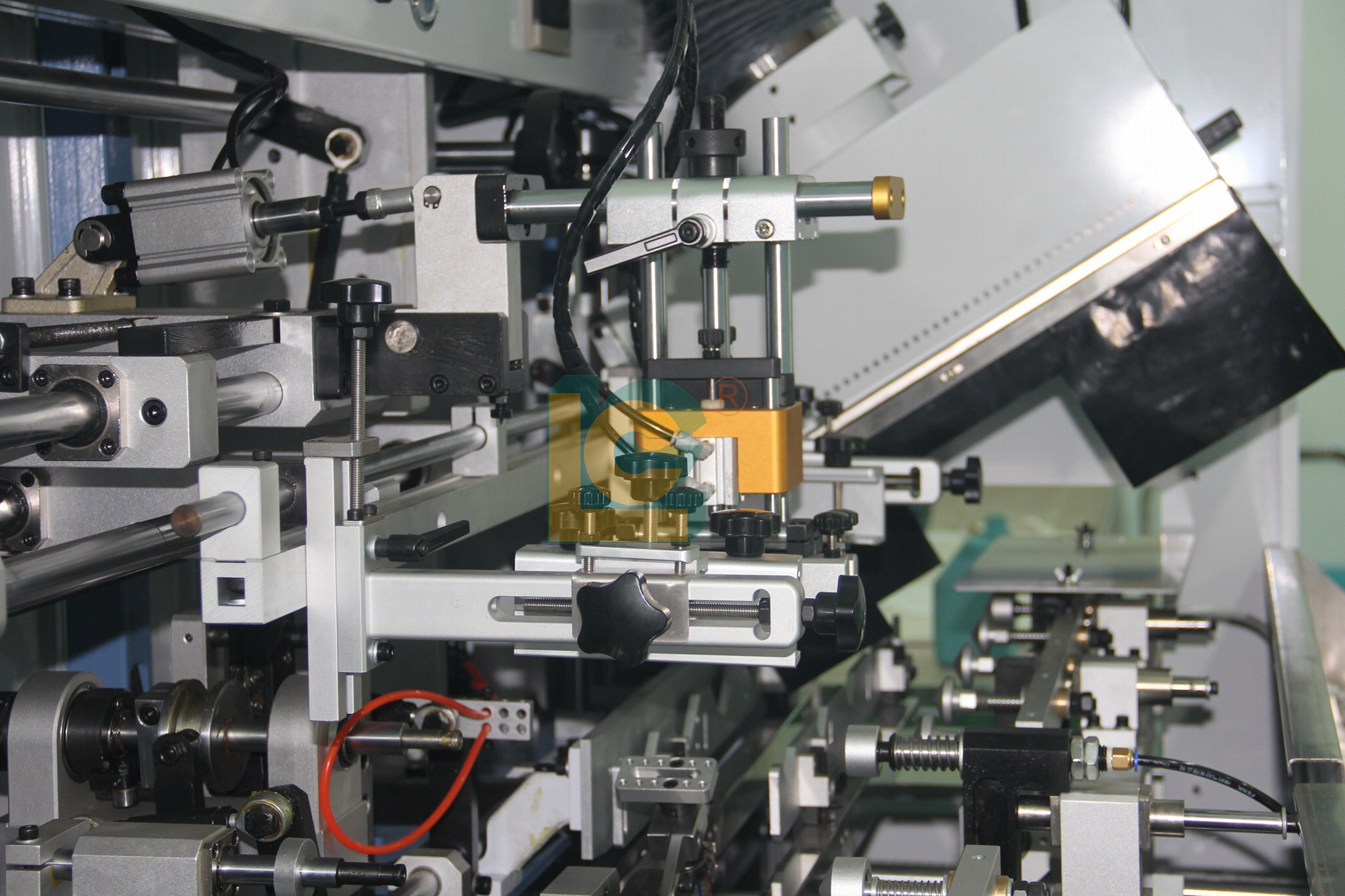

LC-120AL-1 Automatic Screen Printing Line 3
