| Model: | FDH 高压机 |
|---|---|
| Brand: | FARADAY |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Power & Generating Sets |
| Label: | Diesel Generator , Alternator Generator , Best Sale Alternator |
| Price: |
US $99999
/ pc
|
| Min. Order: | 1 pc |
| Last Online:02 Sep, 2015 |

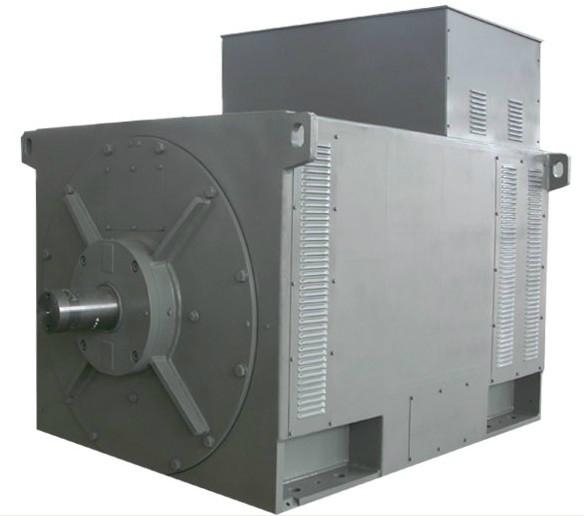

2014 Best Sale Professional Big Diesel Engine Alternator
Product Description
Alternator Specification:
3-PH, 50HZ 1500RPM, 400/230V(Also can be made according to customers’ special requirements)
|
Alternator Model |
FDH5601S1(2)-4 |
|
Power |
500kw |
|
Exciter type |
Brushless, Self excitation system |
|
Power factor |
0.8 |
|
Voltage adjust range |
≥3% |
|
Voltage regulation NL-FL |
≤±0.3% |
|
Insulation Grade |
H |
|
Protection Grade |
IP44 |
FARADAY 100% Copper Wire Three Phase AC Alternator
1. Directly Manufacturer
2. 100% Copper wire AC Alternator
3. OEM Service
4. CE/ISO Approved
5. 7-10 days lead time
Alternator Features:
- Brushless, Synchronous AC Alternator, Easy operation and simple maintenance
- IP44, Insulation Class H Alternator
- Usage: As a electric power source matching diesel engines for lighting purpose in Town,
Countryside, Work sites, Mountain and Pasture lands
- Drip-proof type
- 3 phase 4 wire type, Star connection
- 50HZ, 380V, 1500RPM as standard, also 60HZ can be made as customers’ requirement
- Certificate: CE/ISO9001
Operating conditions
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15 °C~ 40 °C)
Relative air damping: not exceed 90%
FARADAY FDH Series Alternator data for your reference:
|
Model |
Rated power (KW) |
Rated Voltage(V) |
Rated frequency(HZ) |
Speed (rpm) |
|
|
FDH560series |
FDH5603M1(2)-4 |
1600 |
6300 |
50 |
1500 |
|
FDH5603LM1(2)-4 |
1800 |
6300 |
50 |
1500 |
|
|
FDH5603L1(2)-4 |
2000 |
6300 |
50 |
1500 |
|
|
FDH5604S1(2)-4 |
1200 |
10500 |
50 |
1500 |
|
|
FDH5604MS1(2)-4 |
1400 |
10500 |
50 |
1500 |
|
|
FDH5604M1(2)-4 |
1500 |
10500 |
50 |
1500 |
|
|
FDH5604LM1(2)-4 |
1600 |
10500 |
50 |
1500 |
|
|
FDH5604L1(2)-4 |
1800 |
10500 |
50 |
1500 |
|
|
FDH5605S1(2)-4 |
1400 |
13800 |
60 |
1800 |
|
|
FDH5605MS1(2)-4 |
1500 |
13800 |
60 |
1800 |
|
|
FDH5605M1(2)-4 |
1600 |
13800 |
60 |
1800 |
|
|
FDH5605LM1(2)-4 |
1800 |
13800 |
60 |
1800 |
|
|
FDH5605L1(2)-4 |
2000 |
13800 |
60 |
1800 |
Our Services
- Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.
- During the guarantee period, we will supply freely service of the easy damaged parts for the possible
problems except for the incorrect operation.
- After expiration, you should pay for the spare parts cost for alternator maintenance.
- 30% deposit(T/T),balance (70%) to be paid before shipment.
- 100% irrevocable L/C at sight.
Company Information
1) factory photos. Welcome to visit our factory!
- Over 12 years experience in generator field
- Directly manufacturer
2) Production Process
3) R & D Ability with more than 10 professional engineers
² High voltage generator
² 6 pole and 8 pole ac generator
6 pole and 8 pole ac generator is coming soon.
² Marine generator
4) Main Partner
FAQ
