rfid HF handheld reader

Model:	DWH9185A
Brand:	Dwell
Origin:	Made In China
Category:	Security & Protection / Other Security & Protection
Label:	HF handheld reader , HF reader , handheld reader
Price:	-
Min. Order:	1 pc

Inquire Now

Member Information

Shenzhen Dwell Eelectronics Co.,Limited

Biz MemberHong Kong S.A.R

Last Online:25 Dec, 2024

Product Description

Model：DWH9185A

Size：190mmx75mmx30mm

Weight：430g

GENERAL DESCRIPTION

HF Handheld Readers are supported 13.56MHz ISO15693, ISO14443TypeA&TypeB protocol tags. They can be widely applied in many RFID application systems such as Personnel Identification, Access Control, Anti-counterfeit, Logistics Monitoring, Quality Supervision, Industrial Production Process Control System, Health Care Industry and Finance and Insurance Management, etc.

FEATURES

13.56MHz frequency;
Support ISO15693, ISO14443TypeA&TypeB protocol tag;
Support 1D, 2D Barcode;
Support GPRS / GSM, 3G, Bluetooth, Wi-Fi;
Provide USB, RS232 communication port;
Provide SDK and demo software to facilitate further development.

*Depending on specific model.

SPECIFICATION

Under TA＝25℃unless specified.

ITEM	TYP	REMARK
RFID Antenna	External
RFID Reading Distance	40 ~ 50 mm	ISO15693
RFID Reading Distance	20 ~ 30 mm	ISO14443A
Operating System (OS)	Microsoft Windows CE 6.0/Android 2.3	English / Chinese / Traditional Chinese
CPU	SAMSUNG Cortex-A8(1GHz)
Memory	ROM 256MB/512MB Nand Flash RAM: 256MB/512MB Mobile DDR	Expandable by SD card with maximum capacity to 32GB
Display Resolution	3.5 in. QVGA color display (240 x 320) or VGA (480x640) touch screen with backlight
Dimensions	190x75x30 (mm)	HxWxD
Weight	430g	including battery
Keyboard	mixed alphabetic and numeric key, Navi-Key, Side Key	Support handwriting input
1D Laser Scanner	√
2D Imager	√
WLAN / Wi-Fi	√
GSM / GPRS	√
3G	√	WCDMA / CDMA2000
WPAN	Bluetooth 2.1 with EDR
GPS	√
Camera	√
Phone Capability	Built-in speaker	Optional Stereo headphone (jack: 3.5mm)
Main Battery	3.7V 3400mAh	Li-ion Battery
Spare Battery	150mAh
Standard Communication	USB, RS232
Application Development	PSDK, DCP, SMDK
Environmental sealing	IP65	electronic enclosure, display, keypad
Storage temperature	-20° C ~ 65° C
Charging temperature	0° C ~ 40° C
Operating temperature	-10° C ~ 50° C
Humidity	5% ~ 95% non-condensing

Payment Terms:	tt,Western union , paypal , Escrow,Cash

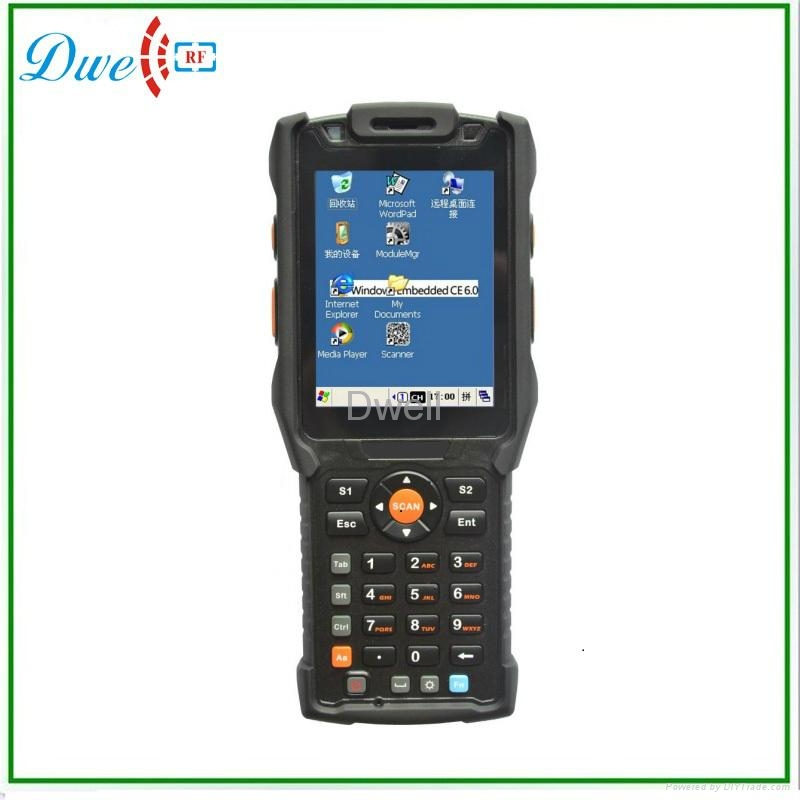

Product Image

Img 1
