60A MPPT Solar Charger Controller 1
  • 60A MPPT Solar Charger Controller 1

60A MPPT Solar Charger Controller

Model:SC-MPPT60
Brand:First
Origin:Made In China
Category:Metallurgy , Mining & Energy / New Energy / Wind Power
Label: -
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

First Wind Turbine Manufacturing Co.,LTD

Free MemberGuang Dong - China
Last Online:14 Jan, 2016

View all products. (20)

Product Description

1.Feature:

  • Built-in MPPT technology,increasing solar panel system energy utilization;
  • Scan the wholeI-V curve quickly,it can track the solar panel MPPT only a few seconds
  • Temperature compensation for charging voltage, prolong the battery life.
  • PWM technology combined with Three tage(bulk,absorption,and float mode charging control, prolong the battery life.
  • The solar charge controller is suitable for various types of batteries for the different charging modes.

2.Specification

Model

 SC-MPPT60
Rated voltage

12V / 24V DC
Rated charge current(Include load current) 60A
Max. Load Current 15Amp
Max. PV open circuit array voltage 105V
Typical idle consumption ≤10mA
Protection

Against Reverse Connected Battery;

Reverse Current Protection;

Against Reverse Connected Solar Modules ;

Over temperature Protection ;

PV Overvoltage Protection ;

Current-limited for Excessive Charging Current;

Load Output Overload Protection;
Lead acid battery settings Adjustable
NiCad battery setting Adjustable
Ambient temperature 0-40℃ (Full load) 40-60℃ (De-Rating)
Altitude Operating 5000 m, Non-Operating 16000 m
Protection class IP21

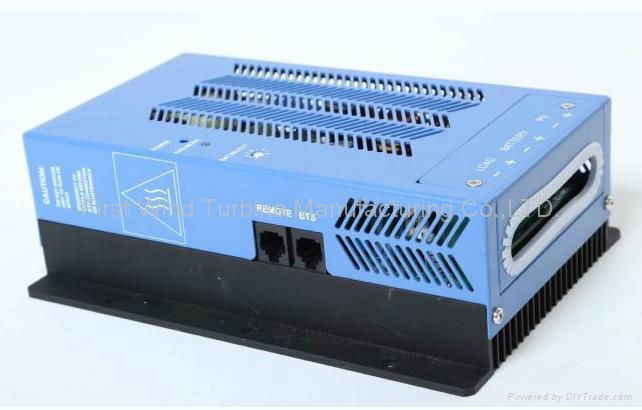

Product Image

60A MPPT Solar Charger Controller 1
Img 1
