Samsung S5PV210 ARM System on Chip

Model:S5PV210
Brand:HAITIANXIONG
Origin:Made In China
Category:Computers & AV Digital / Computer Components / Mainboard
Label:S5PV210 Coreboard , CortexA15 boardr , Classic Motherboard
Price: US $106 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

Feature:

Samsung ARM Cortex™ -A9 S5P4418 Quad-Core 32-bit RISC processor

Onboard DDR3 memory 1GB and 8GB eMMC,6.4GB/s memory bandwidth

Onboard PMIC and Gigabit Ethernet chips

Support Dual Display up to 2048x1280,TFT-LCD,LVDS,HDMI1.4,MIPI-DSI

High Performance 3D Graphic Accelerator

Rich I/O 1x 10/100/100M LAN, 3x SD/MMC,3x I2S,3x I2C,3x SPI,8x 12bit ADC,5x UART,1x USB2.0 HOST,1x USB2.0 OTG

Support 1080p full HD video decoding and encoding,openGL ES1.1/2.0

Support Android5.1,Embedded Linux3.4,Ubuntu12.04

Upgrade to ARM Cortex™ -A53 S5P6818 Octa-Core which both PIN TO PIN





Processor

CPU

Samsung ARM Cortex™ -A9 S5P4418 Quad-Core 32-bit RISC processor

Cache

32KB(Instruction)/32KB(Data)Cache and 1MB L2 Cache

Memory

Technology

32-bit DDR3/LVDDR3 800MHz

Capacity

On-board DDR3 1GB, Optional 2GB

Flash

On-board  8GB eMMC

PMIC

Chipset

AXP228

LAN

LAN

1x 10/100/1000MB LAN

B2B Connectors

Connectors

high contact connecting base

Pin Numbers

188pins

Pin Function

GPIO,ADC,MIPI DSI/CSI,LVDS,RGB,CVBS,HDMI,I2C,Audio I2S,UART,SPI,USB HOST/OTG,HSIC,PWM,RESET

B2B Fixed Hole

Fixed Hole

NO

Operation System

OS

Optional Android 5.1,Embedded Linux 3.4,Ubuntu12.04

Environment

Operating Temp.

-10~70℃, 50%~90%(Humidity)

Storage Temp.

-40~85℃, 50%~90%(Humidity)

Physical

Dimension(mm)

43*65


Product Image

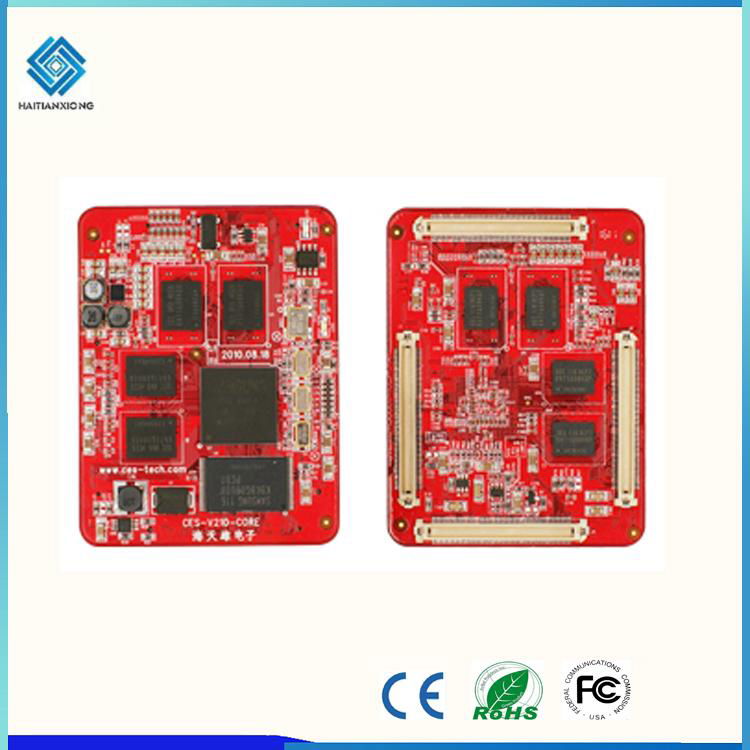

Samsung S5PV210 ARM System on Chip 1
Img 1

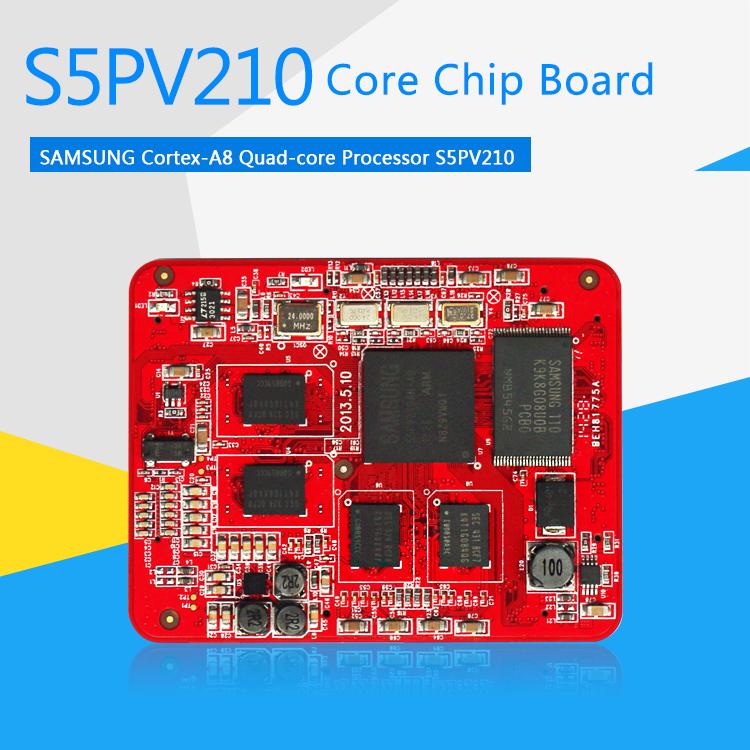

Samsung S5PV210 ARM System on Chip 2
Img 2
Samsung S5PV210 ARM System on Chip 3
Img 3
