M240128F-B5,240128 Graphics LCD Module, 240x128 Display, STN blue
Product Description
M240128F-B5
|
Display type: 240 * 128 dots
LCD type: STN(Blue), transmissive/negative
Drive Method:1/128duty, 1/12bias, VOP 19.0V, VDD 5.0V
Backlight: White(side), VDD 5.0V, Idd 200mA
Drive IC: T6963C(LQFP)
Viewing angle: 6 O’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA

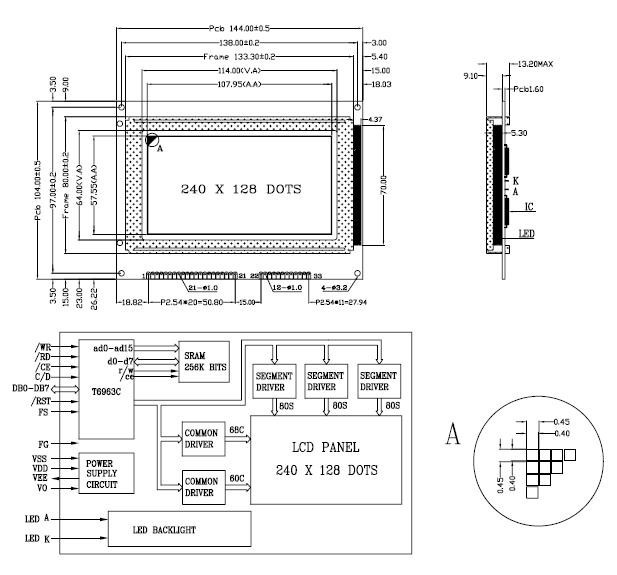

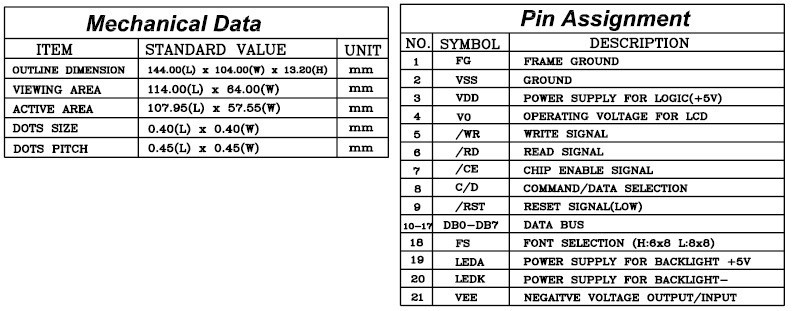

Outline dimension: 144.00mm(L)*104.00mm(W)*13.20mm(H)
Viewing area: 114.00mm(L)*64.00mm(W)
Active area: 107.95mm(L)*57.55mm(W)
Dots size: 0.40mm(L)*0.40mm(W)
Dots pitch: 0.45mm(L)*0.45mm(W)
Warranty: 12 months
|

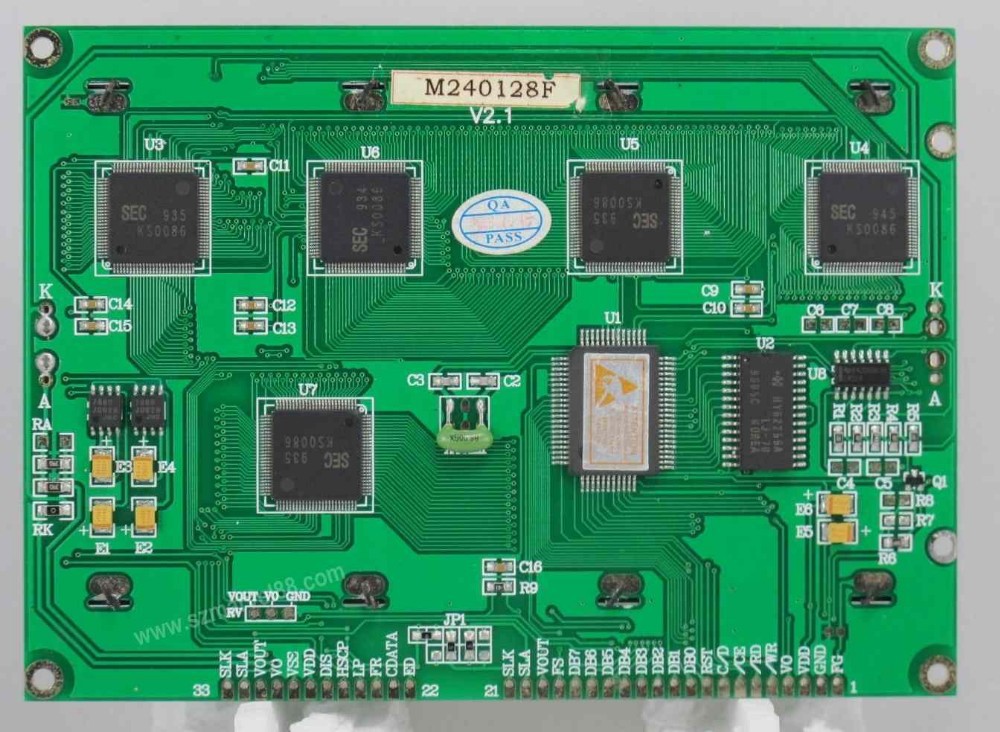

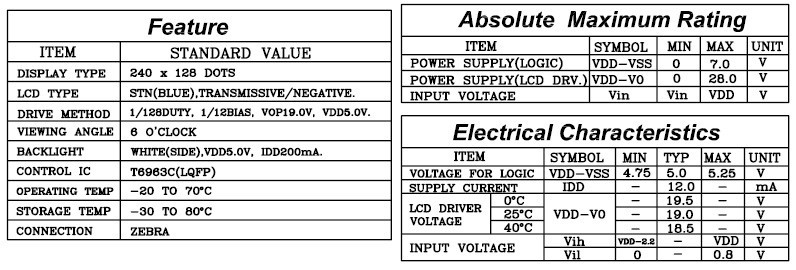

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
