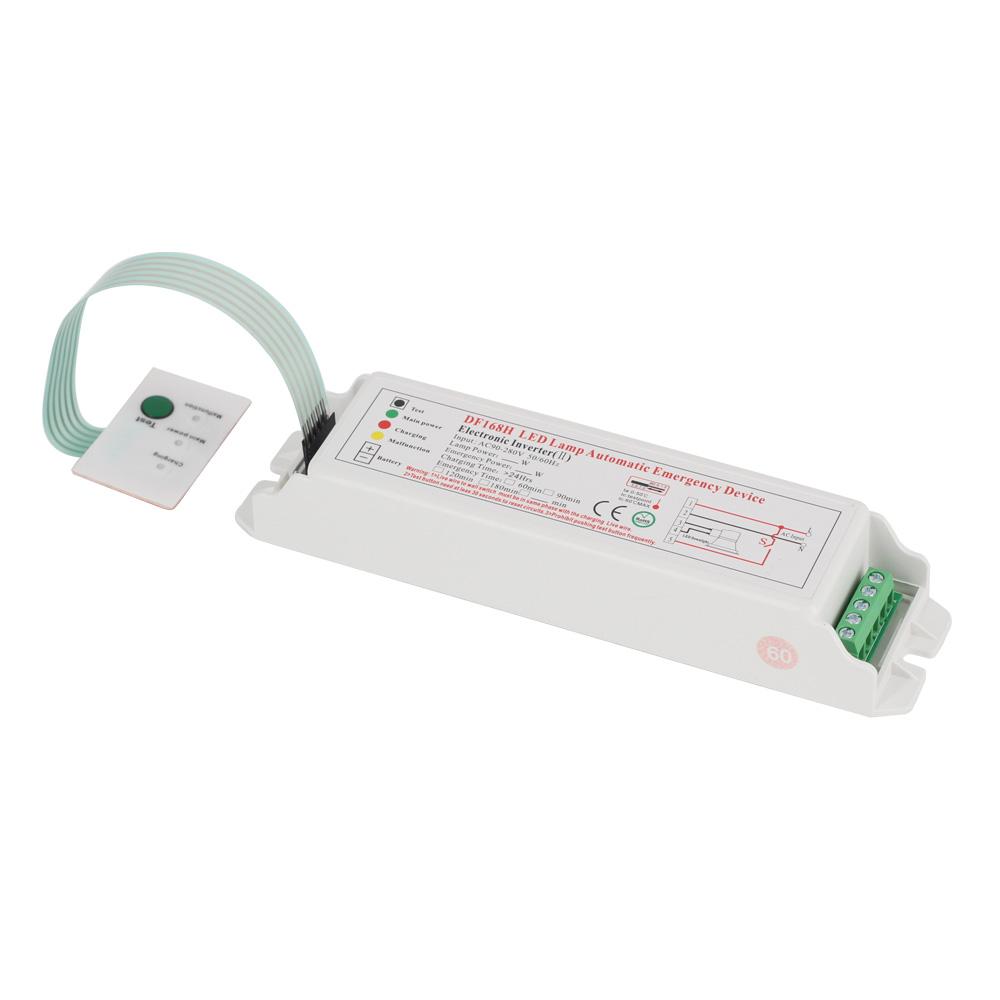

Installed inverter, battery and connecting wires into the emergency power supply box, with fire prevention, moisture proof security function.
Can apply to LED panel lights, LED grille lamp, LED ceiling lamp, LED fluorescent lamp, LED down lamp, LED spot lamp, and other LED light source, can lighting when the power cut
This type of emergency power supply belongs to the type of full power for emergency lighting, emergency lighting brightness after power failure, the same with brightness electric lighting
Emergency power supply can automatically identification, off and switching
The outer wall of emergency power supply box is installed a detection switch, that convenient for users to understand the working state, check whether the emergency lamp normally lighting
When power supply normally, inverter make emergency lighting battery group in charging or the standby state, when there is earthquake, struck, explosion, accident or other emergency, AC suddenly interrupted, inverter power supply for battery immediately converted to emergency lighting group DC, ensure lamps lighting and safety and red, green, and yellow, three LED lamp beads showed normal as main power, charging, fault status
When battery charging saturates, automatically access to power state, compensate self-discharge, maintain battery life and performance
The matching of different capacity battery, can meet the emergency lighting time 1-5 hours, meet the needs of different situations, can be used in -20-60°C temperature environment
Strictly accordance with the wiring diagram connection circuit, prohibited without source no-load operation, do not open the cover
The user can check the inverter discharge regularly, but when checking, the user need cut off the power supply, let it discharge until it automatically finishes
If the user needs to know the price, can contact our company
We can provide the data of lamp power and emergency time, also the accurate emergency power supply unit price
Technical parameters:
Input: AC 100V-270V 50-60HZ
Output: DC 80-280V
Power: less than 20W
Response time: according to customer requirements
Battery: 12V
Sizes: 390*65*58mm, 440*75*75mm, 250*60*60mm, 310*75*75mm
