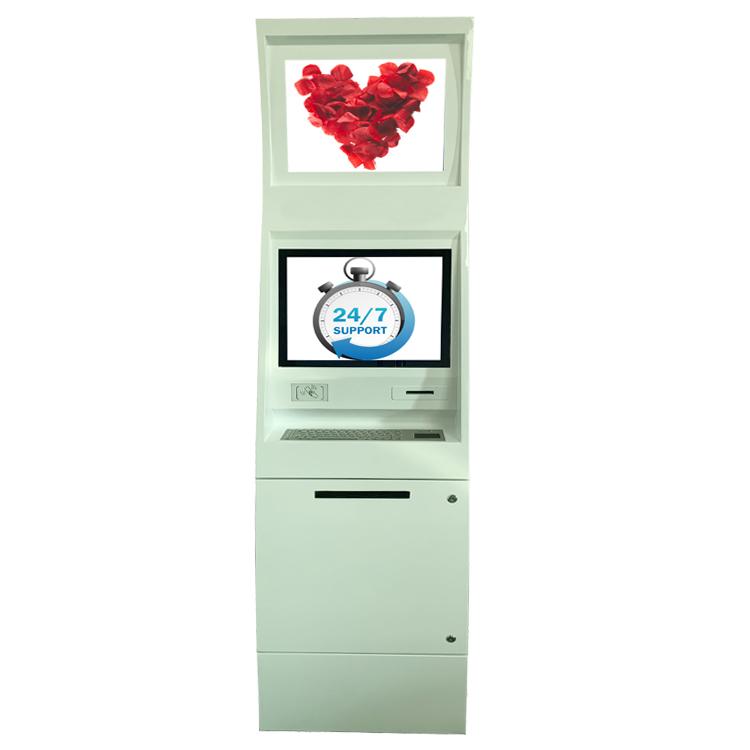

All in one dual screen free standing self-service kiosk

1. Enhanced User Interaction: Dual monitors improve engagement and streamline customer interactions.

2. Versatile Printing Options: Supports both A4 and 58mm printing for various document needs.

3. Comprehensive Payment Solutions: The card reader enables secure and efficient payment processing.

Overview
1. Durable free standing advertising kiosk cabinet
2. 2 pcs 19''Grade A+  LED monitor
3. 19''water proof, anti dust, anti-vandal touch screen
4. Powerful Embedded PC
5. Operating system available, internet access

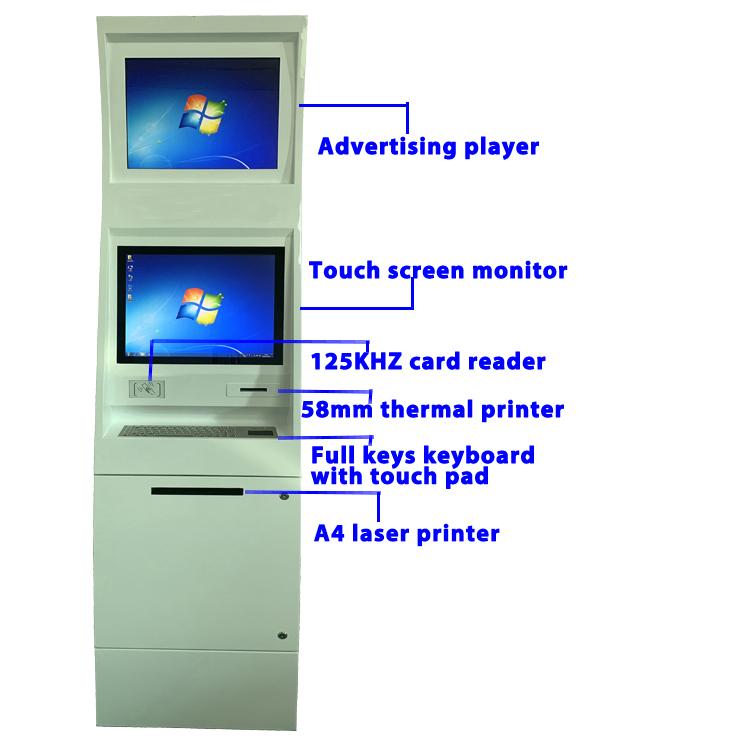

6. Metal keyboard, A4 printer, 58mm printer, Card Reader
Configuration:
1) Touch screen
a. Infrared Touch screen
b. Resolution: 4096*4096
c. Deviation of Error: ±<1.0%
d. Surface Hardness: Mohs' hardness rating of 7
e. Hitting Life Expectancy: 50,000,000 cycle times
f. Operating Force: Touch force less than 100g(adjust allowed)
2) 19″LED monitor
a. Resolution:  1280x1024
b. Brightness: 300cd/m2
c. Contrast ration: 1000:1
d. Contact Bounce: 5ms
e. lifelong: more than 50 000hours
3) Computer
a. CPU: Intel I3 4th generation
b. Storage: 128GBSSD, HDD available
c. Industrial motherboard
d. RAM: DDRIII 8GB
e. Ports: USB ports, RS232 ports
Embedded PC for this touch screen kiosk is upgrade available.
4) Frame:
with steel-like paint, anti-magnetic&anti static ability
a. 1.2mm~1.5mm cold rolled steel frame, 2.0mm CRS available.
b. build in power control panel, and hi-fi-speaker.
c. RJ45 interface, wired network card.
Additional devices for this thermal printing kiosk:
Thermal printer, 80mm width paper, autocut
Control Panel
power input, power switch, network input
Power Supply:
Max. Power consumption: 200W; 220V AC, 5A
Output power: 2×10w; double channels, surround sound
Operational environment
Tem: -5-70℃; Relative Humidity: 30%-90%
Network interface: BNC or RJ45 and RJ11
Optional devices available:
1. High quality Camera/Webcam
2. Metal keyboard with traceball&touch pad, digital pinpad(with 16 keys)
3.   Bluetooth connection, 3G modem, GPRS, Wifi access
4. 3D barcode scanner, QR code reader
5. UPS(10~20mins)for power supply
6. Card reader: Magnetic card reader, IC smart card reader, RFID card reader, Mifare card reader, Non touch card reader, Credit card reader.
It will be appreciated if you tell me your specific requirement. We are able to customize the kiosks for you.
Application:
-Internet terminal
-Visitor greeting stations
-Commercial signage
-Office signage
-Virtual receptionist solutions
Employee internet access
-Wayfinding system
-Interior signage
-Self service touch screen kiosk
-Trade show kiosk
-Information touch screen kiosk
-Game stations for restaurant
Customer advice system
-Video, photo, voicemail sending stations
-Contact registration
-Kiosk design for Internet cafes
Test process:
Before we send the kiosk to you, in order to make sure the kiosk run well after you get it, we will test at least 24 hours for each kiosk.
Warranty
1. 1 year warranty for enclosure.
2. 1 year warranty for electrical parts
3. For mass goods, we will offer some free spare parts of electrical device.
Payment:
We accept T/T, Western Union, Escrow and L/C(L/C acceptable only when the total payment is above 30 000 dolloars)
Warm welcome to contact me to get more information, :)
