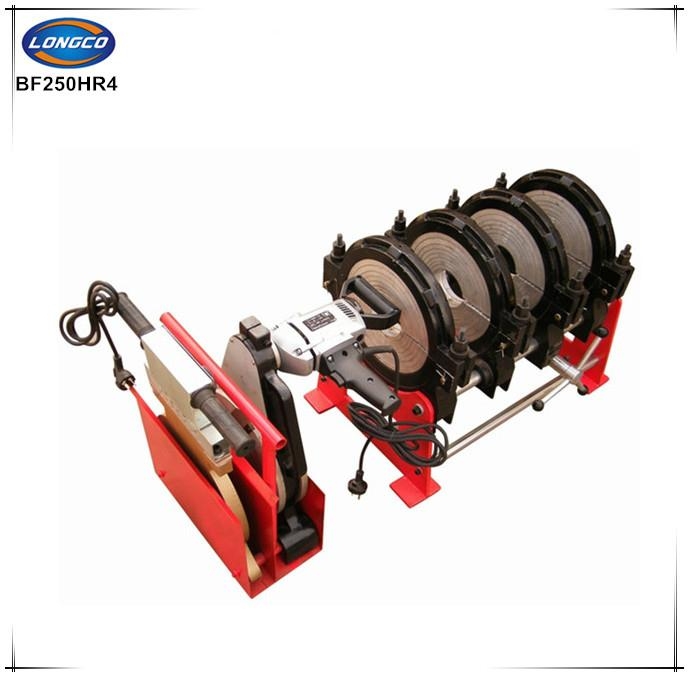

| Model: | BF250HR4 |
|---|---|
| Brand: | Longco |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Welding Machinery |
| Label: | Butt fusion welding , pipe welding machin , butt fusion welder |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:26 Mar, 2020 |
Description
◆ Be made of fixture rack, heating plate, milling machine and tool holder part etc
◆ Reasonable engineering mechanics design makes the welding work more convenient and flexible; Locking mechanism can avoid external influence when welding.
◆ The construction of the card sets with gland unilateral fixed in clamshell structure makes the welding process more brief and effective, and it can replace the screw which will change back to the traditional gland.
◆ Sealing pressure provided by lever-drive mechanical makes transmission smooth, efficient and effective;
suitable under the trench operation.
◆ The activities group of the card set put with the unique design of the pressure holding bolts to make the holding cooling work more convenient after welding.
◆ The motor-driven cutting milling cutter.
◆ Good in quality with competitive price
Technical Data
|
Type |
BF250HR(4 clamps) |
|
Welding sizes of pipes |
250mm,225mm,200mm, 180mm,160mm, 140mm, 125mm, 110mm,90mm |
|
Temperature of heat plate |
0～300℃ |
|
Temperature Difference |
±5℃ |
|
Power of heat plate |
1.8KW/220V |
|
Power of milling cutter |
1.0KW/220V |
|
Net Weight / Gross Weight |
|
|
Packing Size |
74*51*54cm |
| Payment Terms: | TT/ LC / Westion Union/ Money Gram |
|---|---|
| Packing: | Plywood case |
| Lead Time: | Within 5 days after payment |
| Standards Certificate: | CE |
