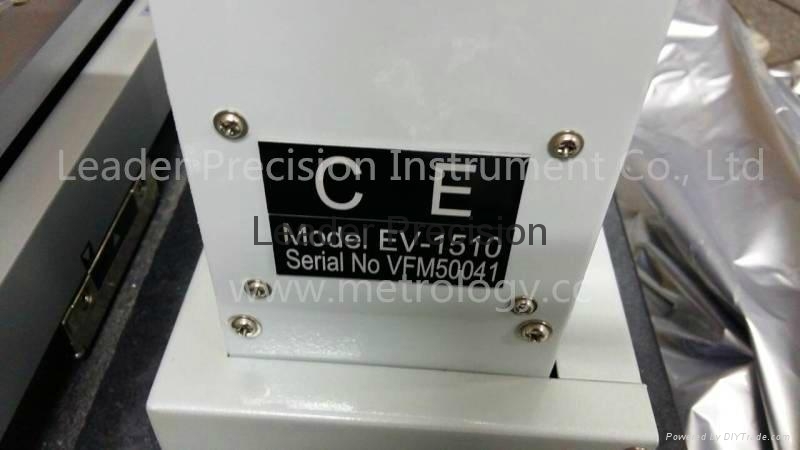

| Model: | EV-1510 |
|---|---|
| Brand: | Leader |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | Vmm System , Measuring Machine , Measuring System |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:03 Apr, 2024 |
Application
Video Measuring System EV Series are suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries.
Usage

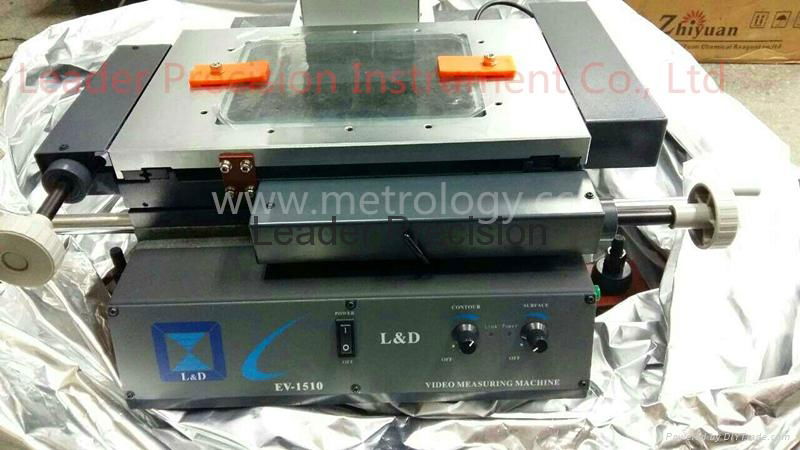

This non-contact Vision Measuring System comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. this optical inspect instrument is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.
Features
• Solid granite frame guarantees strength, accuracy and stability
• Precision stages are available
• Higher resolution linear encoder 0.5µm
• Superb full-color high resolution image with zoom optics( USA Navitar zoom lens:0.7x-4.5x)
• Sighting device: cross-hair generator
• Connection: RS232 or USB output and metrology software
• Japan 1/2" high resolution S-video color CCD camera
• New DC3000 geometric DRO
• One-click edge detection
Specifications
|
Model No |
EV-1510 |
EV-2010 |
EV-2515 |
EV-3020 |
EV-4030 |
|---|---|---|---|---|---|
|
Travel-X.Y axis |
150*100(mm) |
200*100(mm) |
250*150(mm) |
300*200(mm) |
400*300(mm) |
|
Travel-Z axis |
150 |
150 |
150 |
150 |
150 |
|
Stage size |
354*228 |
404*228 |
450*280 |
500*330 |
606*466 |
|
Stage load capacity |
30kg |
35kg |
40kg |
|
|
|
Dimension L*W*H |
540*560*850 |
540*560*850 |
760x600x900 |
760x600x900 |
970x670x940 |
|
Net weight |
98kg |
108 |
120 |
138 |
238 |
