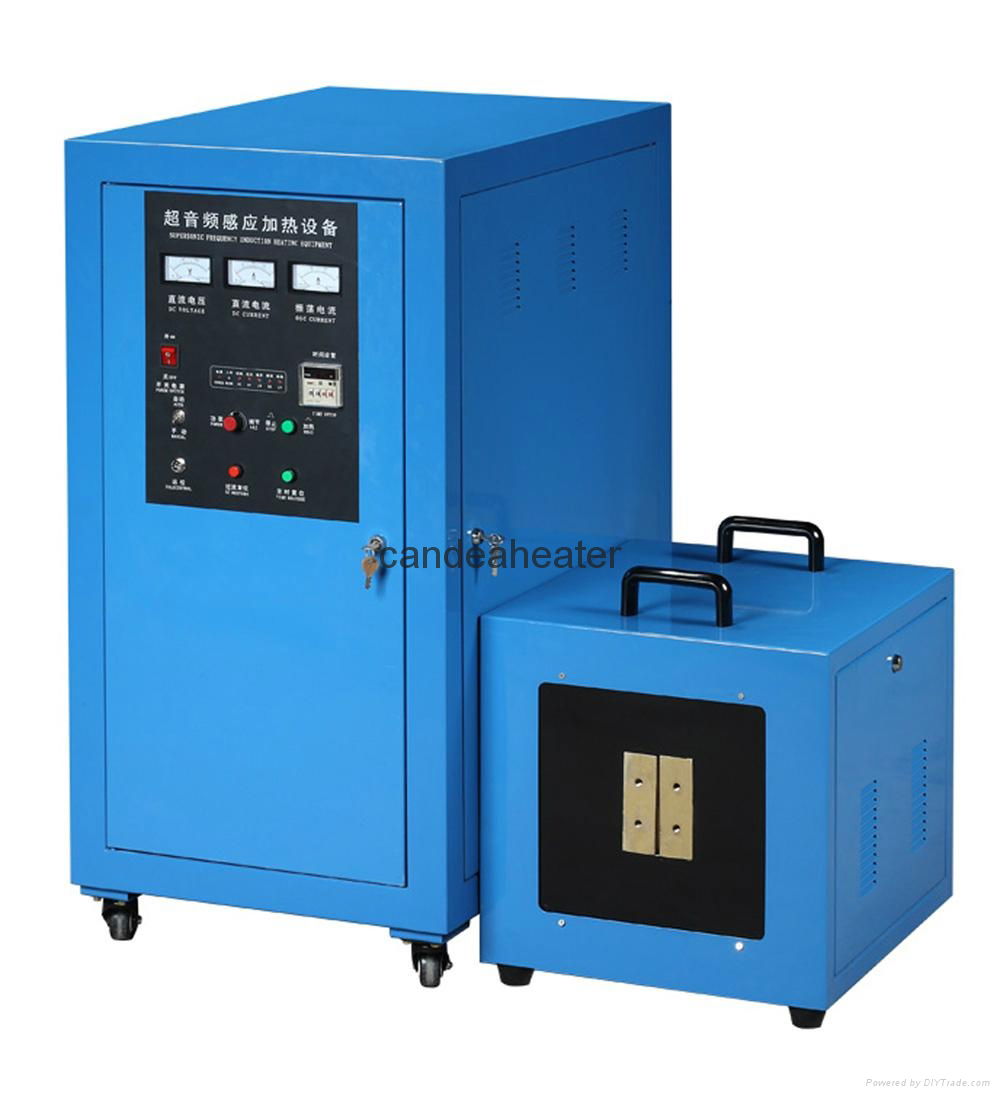

CDU-50AB Ultrasonic Frequency Induction Heating Machine
Main characteristics:
1.IGBT module and Inverting technologies of third generation been used;Higher reliability and lower maintenance cost.
2.100% Duty cycle, continuous working is allowed at maximum power output.
3.Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
4.Display of heating power and heating current and oscillating frequency;
5.Simple to install, Installation can be done by unprofessional person very easily;
6.Light weight
7.Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is s ested to use for batch production to improve the repeatability;
8.The separated models are designed to fit the dirty surrounding of some cases.
|
Model |
CDU-50AB |
|
Work power |
340V-430V |
|
Maximum input current |
75A |
|
Output power |
50KW |
|
Fluctuating frequency |
10-30Khz |
|
Output current |
100-2400A |
|
The flow rate of cooling water |
0.2Mpa 26L/Min |
|
Water temperature protection point |
40℃ |
|
Product size |
Main part:500*400*900mm |
|
Transformer part:400*330*360mm |
|
|
Net weight |
Main part:42kgs |
|
Transformer part:33kgs |
Applications:
Drill tip heat shaping
Heat treatment
Quenching
Forging
Melting
Soldering and brazing
