| Model: | CNM-QYC |
|---|---|
| Brand: | CNM |
| Origin: | - |
| Category: | Construction & Decoration / Building Steel & Structure |
| Label: | monostrand jack , mono jack , post tension jack |
| Price: |
US $550
/ set
|
| Min. Order: | 1 set |
| Last Online:27 May, 2021 |

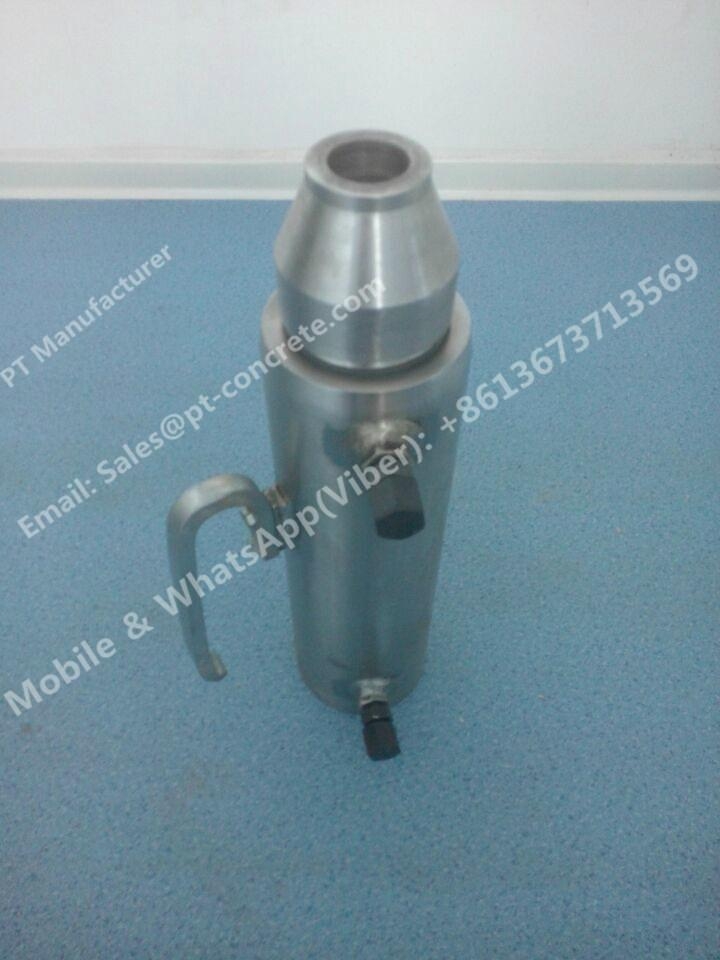

CNM QYC270(240) Monostrand Jack For Prestressing Concrete:
1. Model: QYC270(27 tons), QYC240(24 tons)
2. Capacity: 24 tons and 27 tons, Tension Journey: 200mm, Cross Core Diameter: 18mm, Tension Cylinnder Area: 44.5cm²,
3. Usage: To tension single strand or flat anchor system
4. Applications: bridges, high buildings, coal mine , railway and subway, water conservancy and hydropower engineering .
5.Features: It can tension different diameter of pc strand, steel wire and steel rebar(see followings) by replacing different grip wedges inside it.
A: It can tension 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.
B: It can tension 5mm, 7mm, 8.0mm, 9.52mmn steel wires.
C: It also can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar.
QYC270 Front End Jack Technical Data:
Model |
Nominal Tension Force(KN) | Central Hole Diameter(mm) | Tensioning Area(mm²) | Stroke(mm) | Rated oil pressure(Mpa) | PC Strand Reserved Length(mm) |
| QYC70 | 74 | 10 | 1437 | 150 | 50 | 120 |
| QYC240 | 240 | 18 | 4009 | 200 | 60 | 200 |
| QYC270 | 270 | 18 | 4415 | 200 | 61 | 200 |
| QYC1100 | 1100 | 22619 | 200 | 49 | ||
| QYC2000 | 2000 | 42332 | 200 | 48 |
Contact with me to know more:
We are PT Manufacturer from China, our full products range for post tensioning and pre-strssing construction:
1. Materials: pc strand, YJM anchor system(monostrand anchor, multistrands anchor), ducts(metal ducts, HDPE plastic ducts)
2. Equipment: Hydraulic Jack(QYC mono jack, YDC multi-strand tensioning jack), electric oil pump, YH30 embossing machie(onion jack), GYJ500 extrusion machine, ZG130 ducts making machine, grouting pump and mixer for post tensioning).
