| Model: | TC-818DP |
|---|---|
| Brand: | HYS |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment |
| Label: | DPMR radio , digital radio , digtial two way radi |
| Price: |
US $110
/ pc
|
| Min. Order: | 2 pc |
| Last Online:03 Jul, 2024 |
Individual Call, Group Call, All Call
Remote Kill
6.25KHz Channel Spacing
Digital/Analog Modes
Emergency Alarm Function
PC Programable Function
Scan Function
Tone Tail Elimination
High/Low Power Selective
Call Digital Encryption Function
|
General Specification |
||
|
Frequency Range |
136-174 MHz; 400-470 MHz |
446 MHz |
|
Channel Spacing |
12.5KHz(Digital)/ 25KHz(Analog) |
6.25KHz(Digital)/12.5KHz(Analog) |
|
Channel Capacity |
16 |
|
|
Operating Voltage |
DC7.4V±15% |
|
|
Operating Temperature |
-20℃~ +60℃ |
|
|

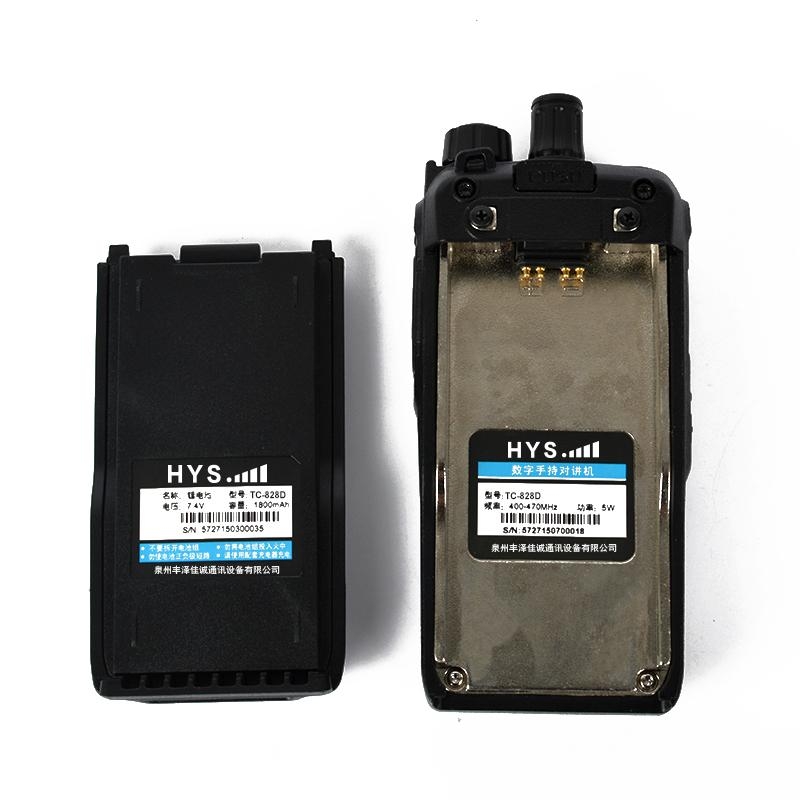

Battery Pack |
1800mAh |
|
|
RF Power |
VHF:5W/1W; UHF:4W/1W |
|
|
Frequency Modulation |
4FSK(Digital); 11KΦF3E/16KΦF3E(Analog) |
|
|
4FSK Modulation Accuracy |
≤5% |
|
|
Adjacent Channel Power |
≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥60dB @ 6.25KHz; |
|
|
Adjacent Channel Selectivity |
≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥50dB @ 6.25KHz; |
|
|
Digital Sensitivity |
-110dBm (BER ≤1%) |
|
|

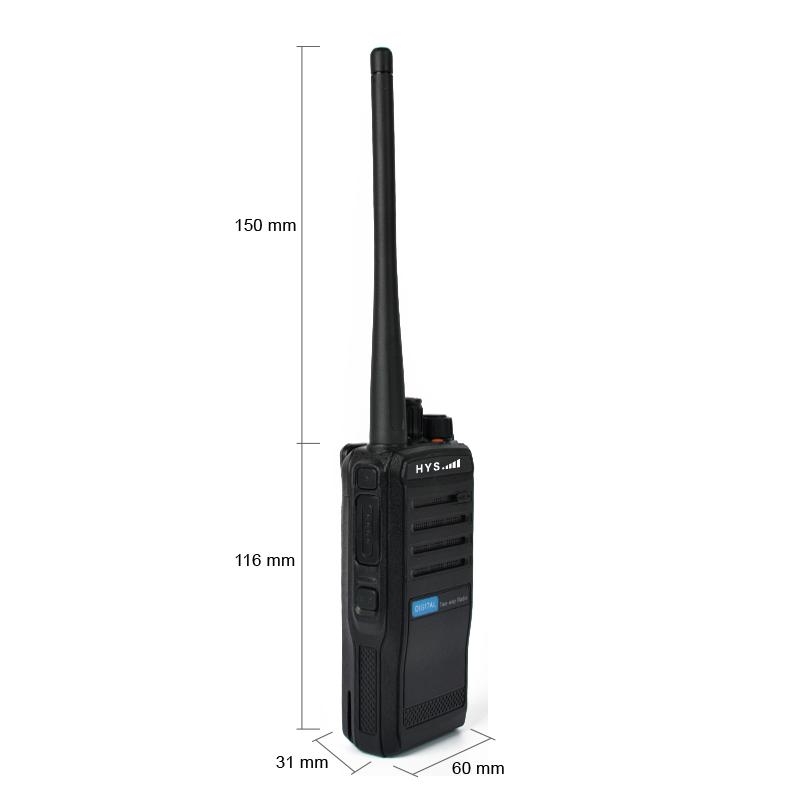

Dimensions(W×H×D) |
60mm × 135mm × 32mm |
|
|
Weight |
242g(With Belt Clip and Antenna) |
|
| Payment Terms: | T/T,WESTERN UNION, PAYPAL |
|---|---|
