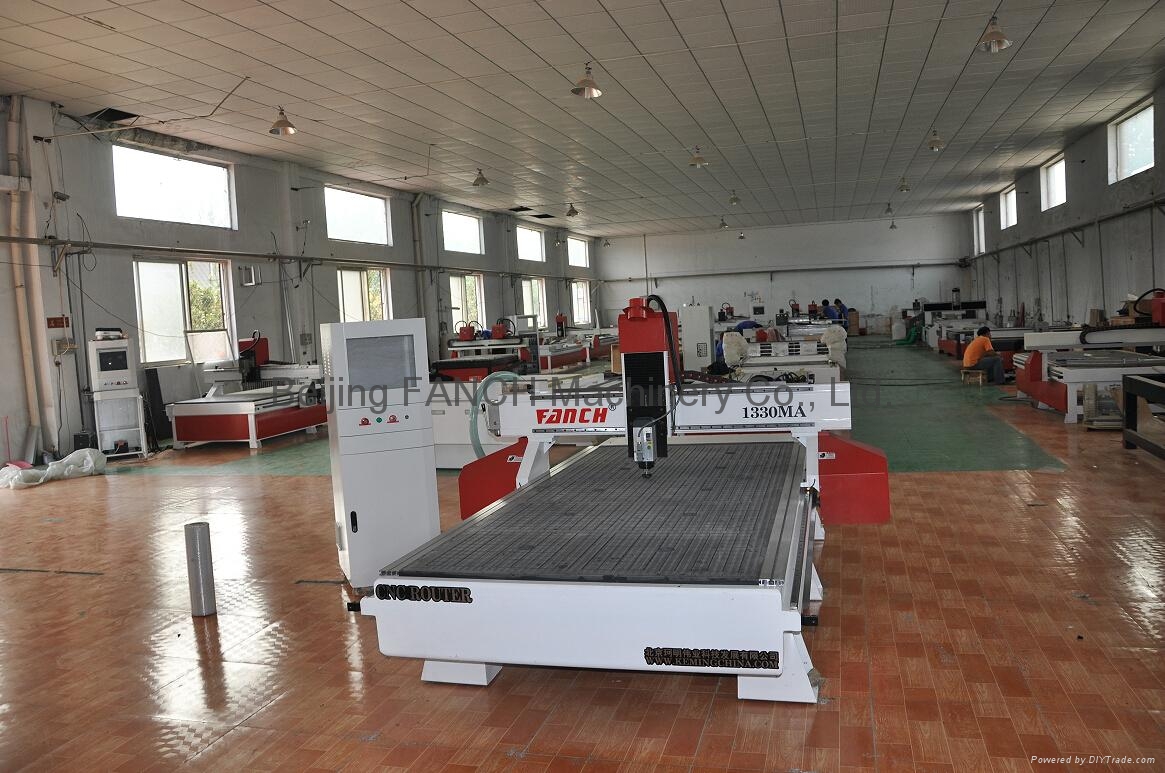

Model: | FC-1325MA |
---|---|
Brand: | FANCH |
Origin: | Made In China |
Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
Label: | cnc router , cnc machine center , cnc engrave machine |
Price: |
US $11500
/ set
|
Min. Order: | 1 set |
Last Online:12 Apr, 2017 |
Scope of application:
Widely used in furniture processing industry,upholstery, decorative woodwork, doors, woody handicrafts and metal product and stone product.
Features of the machine:
1. The lathe welded use high-quality steel, by secondary quenching processing and upright, support plate, using aluminum cast process that ensures the high stability.
2. Driving rail adopts original Taiwan imported 25mm square lead rail.
3. Z axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod, high precision transmission
4. High performance transducer, high frequency electronic anti-jamming system
5. Equip large power stepping drive motor,and Y axis uisng doble motors.
6. Using high accurate pinion and rack transmission. The highest speed is 30m/min. It can clearly engrave the 1mm small word.
7. Spindle use domestic 4.5kw air-cooing spindle,6000-24000rot/min,fit for long time producing in the woodwork line.
8. Overstrong suction vacuum fittings,install negative pressure reservoir equipment,400L large space vacuum pump, the parts orientate fastness,swift.
9. vac-sorb 5.5kw air-cooling oil free vacuum pump, subatomospheric pressure can reach 0.8Mpa
10. equipp with standard America industrial aviation plugs links, soft metal cable sheath, avoids the cable damage situation from the press & bump effectively.
11. cable adopts YC numerical control machine shielding line, can reciprocate eight million times.
12. Advanced industrial controlling system is compatible to many dictate formats that can operate after accident or next day processing so it is very convenient.
Performance parameter:
Outer dimension |
1850*3000*1600mm |
X,Y axis travel |
1300*2500mm |
Z axis travel |
>200mm |
Table size |
1340*2500mm |
Max running speed |
30m/min |
Max engraving speed |
15m/min |
Max feed-in height |
200mm |
Command language |
G code, M code |
Software operating environment |
Windows98/2000/xp |
Work voltage |
380v/50Hz |
Spindle power |
4.5KW |
Spindle rotating speed |
6000-24000rpm/min |
Work mode |
Stepping(rack transmission) |
Price Terms: | FOB Tianjin |
---|---|
Payment Terms: | TT / LC |
Packing: | Wooden Case |
Lead Time: | 15 days |
Standards Certificate: | CE, ISO9001 |
