vibrating sieve mesh

Model:redstarwiremesh
Brand:redstarwiremesh
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh
Label:vibrating screen mes , rotary screen , 12mm Mesh screen
Price: US $70 / pc
Min. Order:20 pc
Inquire Now

Member Information

Detail

Product Description

vibrating sieve mesh

material : Mn steel, stainless steel and high carbon steel with high quality
weave technics: curve before weave; Like images above
characteristics: wearable, high temperature-proof, good toughness, shake-proof and draw-proof, keep-distance, better rate of filter than sheet iron screen
vibrating sieve mesh

Application: mainly used for processing of stones, mixing pitch, mine area and so on; match with machines of home and abroad.screen mesh

To fit with International Standard ISO9044-1990 and national standard GB/T5330-85



Number Mesh mm Wire Diameter Mesh mm Wire Diameter Opening rate
(MM) (MM) (INCHES) (INCHES) (%)
1 101.66 12.70 4.000 0.500 79.01%
2 88.90 12.70 3.500 0.500 76.56%
3 76.20 12.70 3.000 0.500 73.47%
4 63.50 12.70 2.500 0.500 69.44%
5 63.50 9.19 2.500 0.362 76.31%
6 57.15 9.19 2.250 0.362 74.21%
7 50.80 12.70 2.000 0.500 64.00%
8 50.80 11.10 2.000 0.437 67.35%
9 50.80 9.19 2.000 0.362 71.71%
10 50.80 7.92 2.000 0.312 74.84%
11 44.45 9.19 1.750 0.362 68.67%
12 44.45 7.92 1.750 0.312 72.04%
13 41.28 9.19 1.625 0.362 66.89%
14 41.28 7.92 1.625 0.312 70.39%
15 38.10 9.19 1.500 0.362 64.91%
16 38.10 7.92 1.500 0.312 68.54%
17 38.10 7.19 1.500 0.283 70.77%
18 31.75 9.19 1.250 0.362 60.14%
19 31.75 7.92 1.250 0.312 64.06%
20 31.75 7.19 1.250 0.283 66.49%
21 31.75 6.17 1.250 0.243 70.11%
22 31.75 5.72 1.250 0.225 71.80%
23 28.58 7.92 1.125 0.312 61.31%
24 28.58 7.19 1.125 0.283 63.84%
25 28.58 6.17 1.125 0.243 67.64%
26 28.58 5.72 1.125 0.225 69.42%
27 25.40 7.92 1.000 0.312 58.11%
28 25.40 7.19 1.000 0.283 60.75%
29 25.40 6.17 1.000 0.243 64.73%
30 25.40 5.72 1.000 0.225 66.62%
31 25.40 5.26 1.000 0.207 68.63%

Payment Terms:TT / LC

Product Image

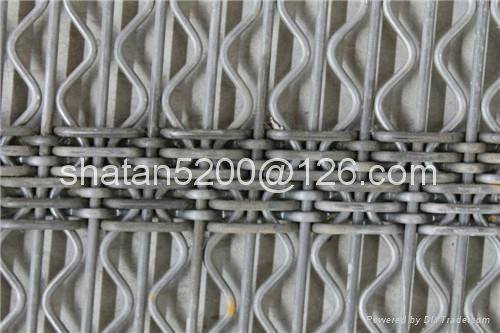

vibrating sieve mesh 1
