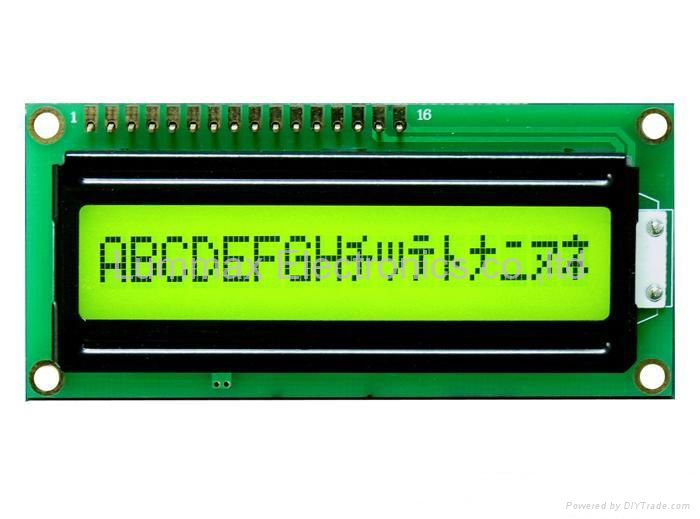

| Model: | LM1601A |
|---|---|
| Brand: | OEM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | lcd , character lcd module , 16x1 lcd module |
| Price: |
US $1.95
/ pc
|
| Min. Order: | 1000 pc |
| Last Online:17 May, 2021 |
Outline Size: 80.0*36.0 mm
V.A size: 64.5*13.8 mm
Char-size: 3.20*6.35 mm
1) STN, positive, transflective, yellow-green
2) Display format: 16 characters x 1 line
3) Viewing direction: 6: 00
4) Input data: 4-bit or 8-bit interface available
5) Display font: 5 x 8 pixels
6) Power supply: Single power supply (5V + -10%)
7) Driving scheme: 1/16 duty, 1/5 bias
8) Backlight (side): LED (yellow-green)
9) Other display formats (characters x lines):
8 x 1, 8 x 2, 16 x 1, 16 x 2,16 x 4, 16 x 6, 20 x 2, 20 x 4, 24 x 2, 24 x 6, 40 x 2, 40 x 4
10) Blue color with white characters are available
| Price Terms: | FOB shenzhen |
|---|---|
| Payment Terms: | TT |
| Packing: | Bubble bag, Carton |
| Lead Time: | 28 days |
| Standards Certificate: | RoHS, ISO9001:2000 |
| Specifications: | Outline Size: 80.0*36.0 mm V.A size: 64.5*13.8 mm Char-size: 3.20*6.35 mm |
| Advantages: | Competitive price |
| Export Markets: | Worldwide |
| Payment Details: | TT in advance |
| Min Order: | 1000 pcs |
| Ship Date: | 28 days |
| Standard Met: | RoHs, ISO9001 |
