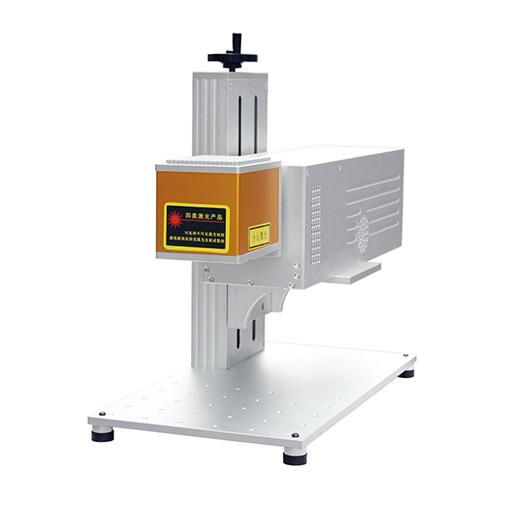

High Speed CO2 Laser Marking Machine

I   Application

Material Application: High-performance optical transmission systems plus excellent optical mode so that the machine can be carved, marking almost all non-metal materials, such as: marble, wood, glass, leather, textiles, paper, plastics (acrylic, cellulose acetate, synthetic fibers , PE, PT, PVC) and other materials. Good optical quality also brings an important performance, can be labeled as on the metal surface coating: anodized aluminum material, while the machine can also cut on thin materials such as paper, leather and textiles.

Industry Application: Widely used in products surface markings, security tags, bar codes, date codes and other laws transform mass tag because its permanent marker, and environmental performance has gradually replaced the traditional ink-jet printing. Widely used in drugs, food packaging, cigarette a code, liquor industry, mineral water, cosmetics, wire and cable, pipeline construction and other metal or non-metal products.

II  Features

1. Import the USA SYNRAD metal, sealed off CO2 laser, the laser cavity design and the unique elongated high inflation pressure, greatly shortening the rise and fall time, high-capacity laser gas cartridge ensures long working life, long term power stability is better than ordinary laser 3%.

2. It is with imported high-precision, ultra-high-speed galvanometer scanning system and a specially designed Dynamic focusing lens system. Mark range:400 × 400mm , repeatability ≤0.001mm, minimum character ≤0.4mm.

3. 10,30W metal sealed-off laser is used in the air-cooled integrated laser cooling method, it can be very easily integrated in a production line, ultra-high performance scanning galvanometer and patent marking software, so that the speed can fit  more than150m / min production line, that flight marks or marking, non-stop production line .

4. More precise optic system, getting smaller spot and diameter, can meet all marking requirements of customers.

III  Samples

IV  Parameters

VII  Transformation

SUNSHINE LASER is in charge of package, and delivery the destination of the contract signed.

VIII  WARRANTY

1. One year warranty from the delivery date.

2. During the warranty, If buyer need seller’s person to maintain the above-mentioned equipments, buyer shall pay any travel fee and accommodation fee etc. for seller’s person except maintain fee.

3.During the free warranty, customer normal use of the device of this contract caused by equipment failure and damage for free maintenance warranty , But in the free warranty period due the buyer abnormal use causes , it is not in the free warranty, so the resulting material, maintenance costs by owner.

4. After the free warranty expiry,Seller shall continue to provide Buyer with necessary spare parts or components of Equipment and service engineers, unless the parts are no longer available on the open market. All fee should be borne by buyer(including the express fee, maintaining fee, any travel fee, accommodation fee, labor fee, spare parts fee etc. ).
